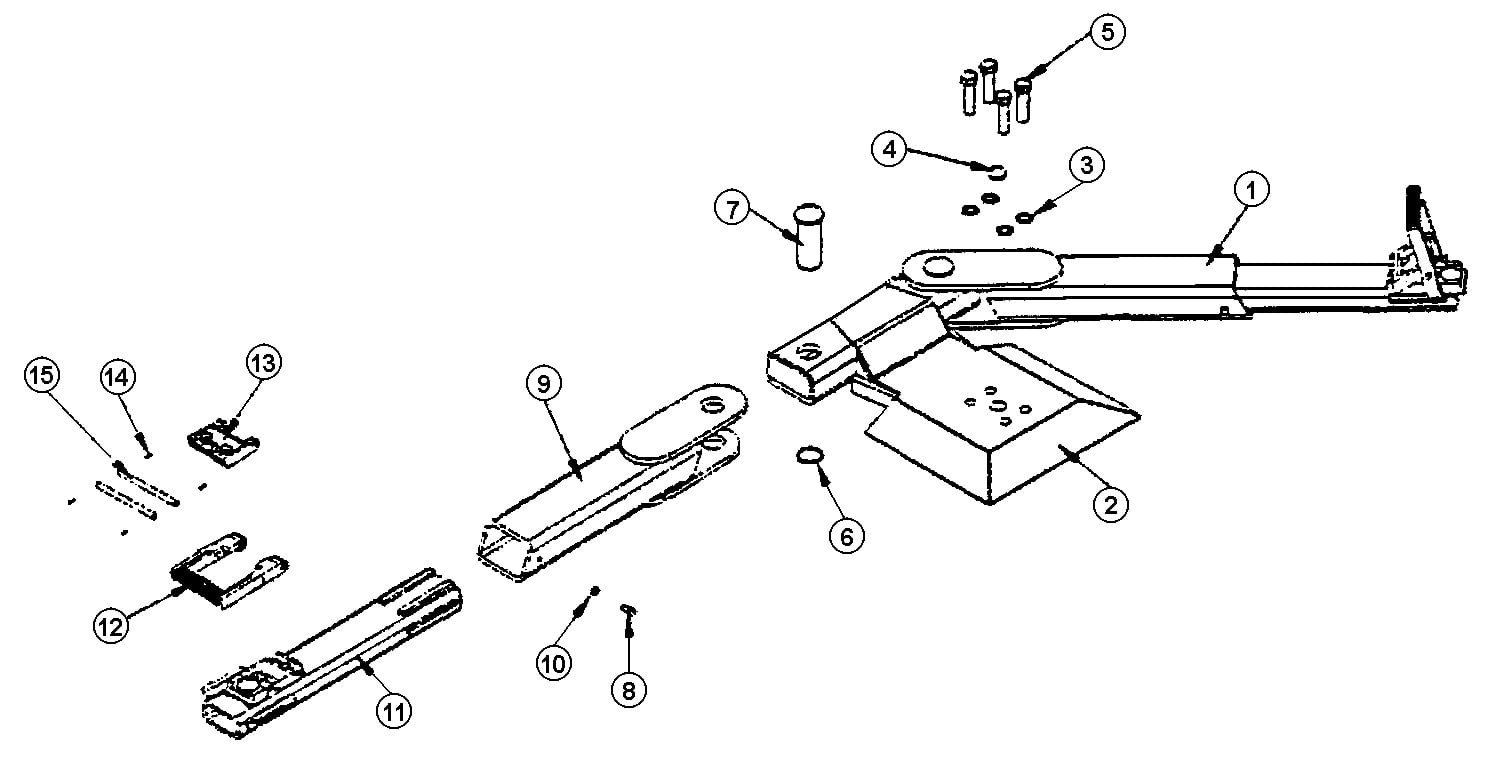

Parts for Challenger CS9200 Superstructure

In Ground Side by Side Lifts – Challenger – CS9200

SVI is the #1 Source for repair parts for Challenger Lifts. Whether you need height extensions, sleeve and adapters, wheel spotter dishes, complete superstructure, rack bars, pinion gears, equalizer components, equalizer boxes, complete cylinder assemblies, or another part for your in-ground side-by-side Challenger Lift, SVI has what you need. We offer excellent pricing, top-notch customer service and fast shipping with in-stock items that usually ship out same day.

Also see these additional breakdowns for Challenger Lifts CS9200:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
16104
4
Arm Assembly

2
16103
2
Bolster

3
16162
8
3/4" Ext. Tooth Lockwasher

4
16160
2
1-1/4" Finishing Plug

5
16161
8
3/4-10x3 Hex Head Capscrew

6
16125
4
1-7/8 Snap Ring

7
16124
4
Arm Pin

8
31305
4
3/8 Self Tapping Bolt

9
16122
4
Female Arm Assembly

10
31037
4
3/8 Split Lockwasher

11
16123
4
Male Arm Assembly

12
M2139
4
High Pad

13
M2138
4
Low Pad

14
S19326
16
1/8 x 5/8 Roll Pin

15
S19977
8
Adapter Pin

16
16116
20
1/2-13x2 Self Tapping Bolt

17
16127
4
Wiper

18
16128
4
Bearing Ring

19
16130
2
1/8 NPT Grease Fitting

--
A1104
-
Rubber Pad on some models

--
A1104H
-
Urethane Snap-In Pad for some models

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
