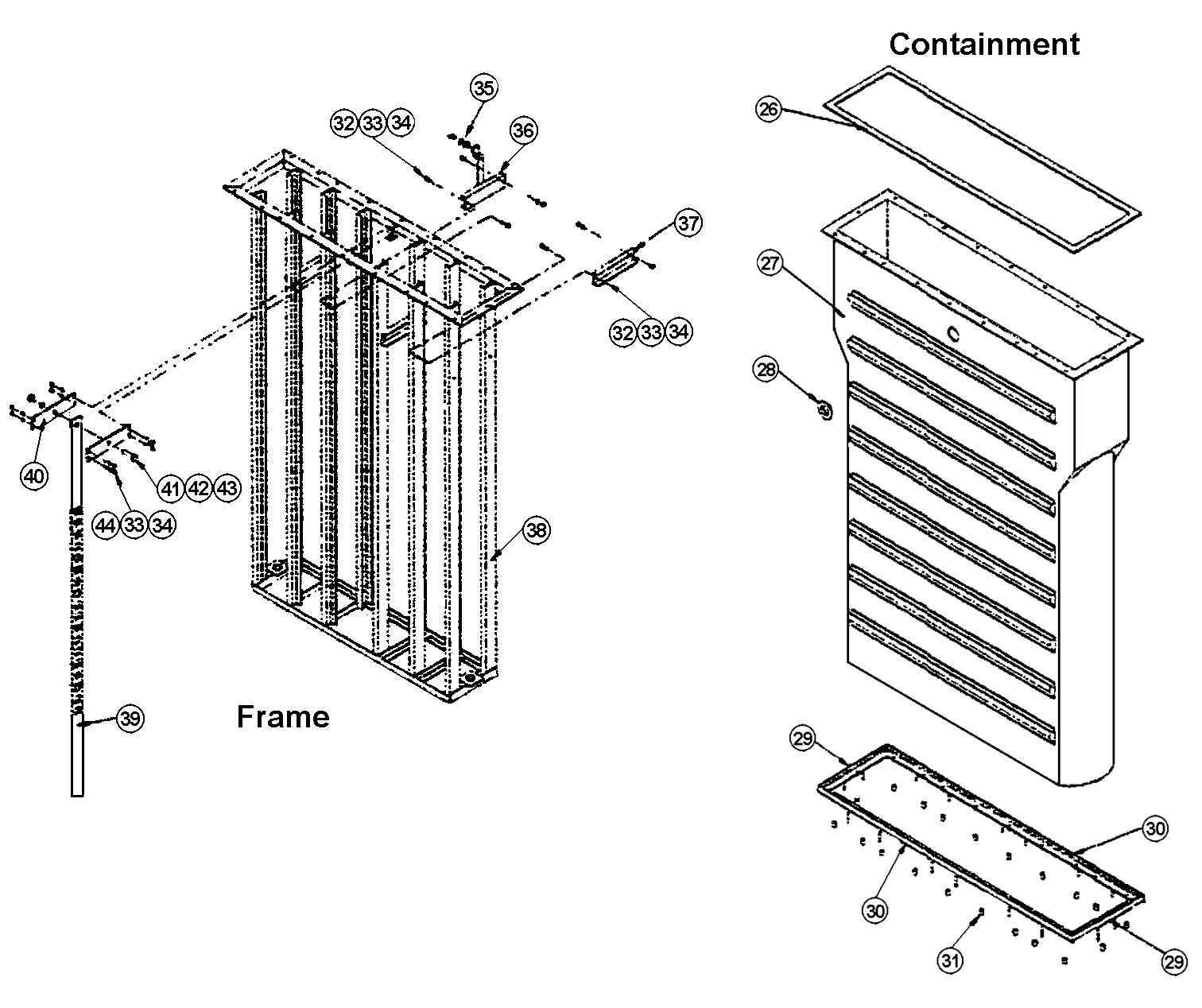

Parts for Challenger CS9200 Frame and Containment

In Ground Side by Side Lifts – Challenger – CS9200

SVI is the #1 Source for repair parts for Challenger Lifts. Whether you need height extensions, sleeve and adapters, wheel spotter dishes, complete superstructure, rack bars, pinion gears, equalizer components, equalizer boxes, complete cylinder assemblies, or another part for your in-ground side-by-side Challenger Lift, SVI has what you need. We offer excellent pricing, top-notch customer service and fast shipping with in-stock items that usually ship out same day.

Also see these additional breakdowns for Challenger Lifts CS9200:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

26
16108
1
5/16x1 Adhesive Gasket 15 ft.

27
16105
1
Containment Tub

28
15009
1
2" PVC Grommet

29
16110
2
Concrete Tie Weld-Short

30
16111
2
Concrete Tie Weld-Long

31
16115
20
3/4x1 Vinyl Cap

32
16157
8
1/2-13x1 Frame Support Bolt

33
16158
12
1/2" Ext. Tooth Lockwasher

34
16159
12
1/2-13 Hex Nut

35
15010
1
Hydraulic Line Clamp

36
16149
1
Frame Support Assembly

37
16150
3
Frame Support

38
16148
1
Frame Assembly

39
16151
1
Lock Ladder Assembly

40
16152
2
Ladder Rail

41
16153
1
7/8-9x3 Lock Ladder Bolt

42
16154
1
7/8 Ext. Tooth Lockwasher

43
16155
1
7/8-9 Hex Nut

44
16156
4
1/2-13x2-1/2 Ladder Rail Bolt

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
