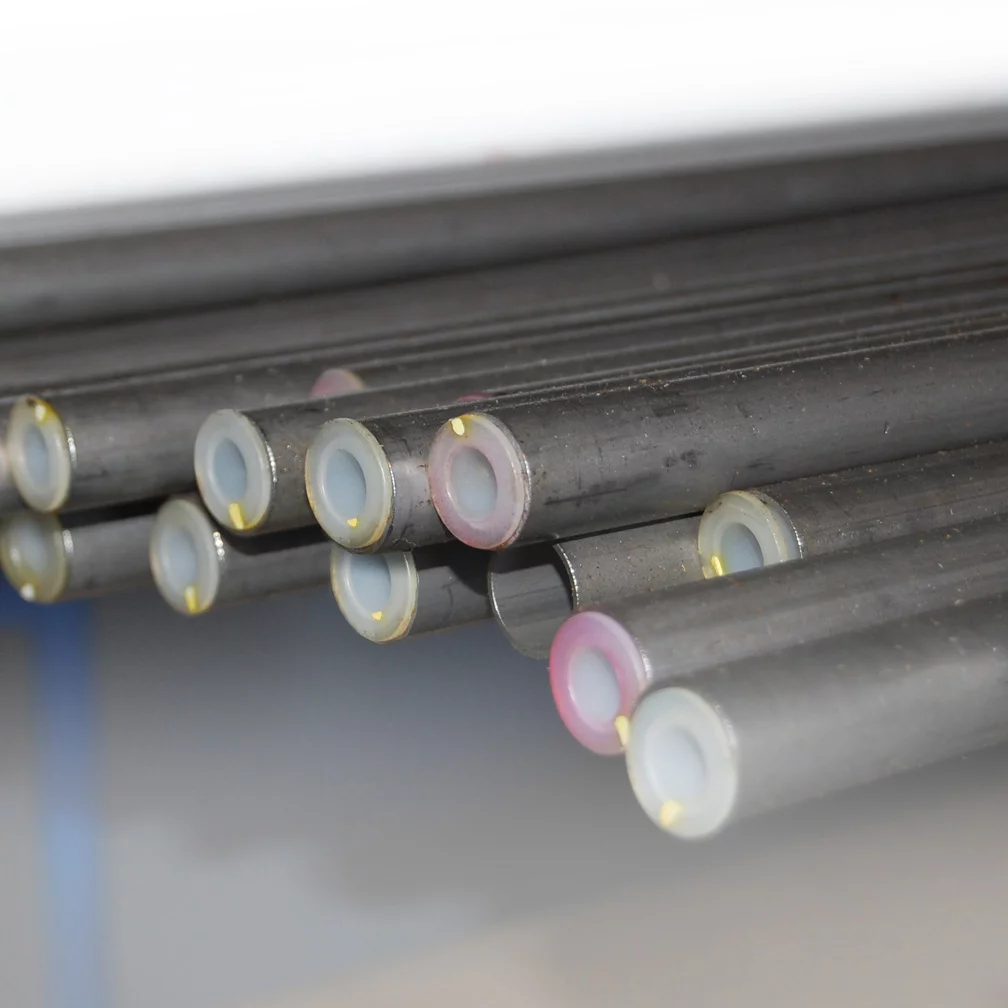

Steel Hydraulic Line Tubing

Size and Pressure Specifications

High Quality Steel Hydraulic Line Tubing and Fittings are crucial to good repairs

  • In-stock steel hydraulic line tubing and fittings ship immediately from the warehouse nearest you
  • Premium and basic fittings to fit tubing in all sizes and configurations

There are some staples in the repair business upon which you depend, and steel hydraulic line tubing is one of those products. SVI keeps an inventory of steel hydraulic tubing and fittings that can not only satisfy most jobs but will exceed your expectations in quality. Leading quick lubes, car dealerships, repair shops and other facilities involved in the maintenance and repair of vehicles rely on SVI for steel hydraulic line tubing they can depend on.

Whether you’re planning a new fluid delivery system or adding on to an existing one, SVI has the tubing you need for the right price with fast delivery. Our tubing is provided in easy-to-use 20-foot lengths in a full spectrum of gauges, sizes, and PSI specifications. SVI carefully handles and packages your order to ensure your steel hydraulic line tubing is delivered safely. SVI offers an Optional Protective Packaging for Shipping. This Reddi-Crate packaging option is a simple, low cost solution to prevent product damage. SVI regularly fills custom tubing orders for your unique requirements—call today for a quote!

We stock a variety of tube fittings including LENZ O-ring seal steel hydraulic tube fittings, steel flare tube fittings, and standard steel pipe fittings. In addition to the tubing and fittings, SVI can provide strut support system supplies including metal framing channels, channel nuts, hardware, drill bits, brackets, clamps, flat plate or angle fittings, among others!

SVI offers same-day shipping on most repair parts with regionally located offices to cover the entire country with affordable, fast delivery. Check out our Steel Hydraulic Line Tubing Catalog for more information.

Three Ready-Ship Warehouses:
Baltimore • Chicago • Los Angeles

Call SVI today at (800) 321-8173 to discuss your repair or manufacturing needs.

Add to
Quote
SVI Part #
Size
O.D.
Gauge
Wall
I.D.
Area
Working Pressure
Burst Pressure
Lbs. per Foot

1/8"
0.125
22
0.028
0.069
0.0037
5040
20160
0.029

3/16"
0.1875
20
0.035
0.118
0.0108
4188
16755
0.057

1/4"
0.25
22
0.028
0.194
0.0296
2520
10080
0.067

1/4"
0.25
20
0.035
0.18
0.0254
3150
12600
0.08

1/4"
0.25
18
0.049
0.152
0.0181
4410
17640
0.105

5/16"
0.3125
20
0.035
0.243
0.0462
2515
10063
0.104

5/16"
0.3125
18
0.049
0.215
0.0361
3522
14089
0.138

3/8"
0.375
20
0.035
0.305
0.073
2100
8400
0.127

3/8"
0.375
18
0.049
0.277
0.0602
2940
11760
0.171

3/8"
0.375
16
0.065
0.245
0.0471
3900
15600
0.215

1/2"
0.5
20
0.035
0.43
0.1452
1575
6300
0.174

1/2"
0.5
19
0.042
0.416
0.1359
1890
7560
0.205

1/2"
0.5
18
0.049
0.402
0.1269
2205
8820
0.236

1/2"
0.5
16
0.065
0.37
0.1075
2925
11700
0.302

1/2"
0.5
14
0.083
0.334
0.0876
3735
14940
0.37

5/8"
0.625
20
0.035
0.555
0.2418
1260
5040
0.221

5/8"
0.625
18
0.049
0.527
0.218
1764
7056
0.301

5/8"
0.625
16
0.065
0.495
0.1923
2340
9360
0.388

5/8"
0.625
14
0.083
0.459
0.1654
2987
11950
0.481

5/8"
0.625
13
0.095
0.435
0.1485
3240
12960
0.538

3/4"
0.75
20
0.035
0.68
0.3632
1050
4200
0.267

3/4"
0.75
18
0.049
0.652
0.3337
1470
5880
0.367

3/4"
0.75
16
0.065
0.62
0.3018
1950
7800
0.476

3/4"
0.75
14
0.083
0.584
0.2677
2490
9960
0.591

3/4"
0.75
13
0.095
0.56
0.2462
2850
11400
0.665

3/4"
0.75
11
0.12
0.51
0.2043
3600
14400
0.807

7/8"
0.875
18
0.049
0.777
0.4739
1285
5140
0.431

7/8"
0.875
16
0.065
0.745
0.4357
1670
6680
0.562

7/8"
0.875
14
0.083
0.709
0.3946
2132
8530
0.7021

7/8"
0.875
13
0.095
0.685
0.3683
2442
9770
0.791

7/8"
0.875
12
0.109
0.657
0.3388
2802
11210
0.892

1"
1
18
0.049
0.902
0.6387
1102
4410
0.498

1"
1
16
0.065
0.87
0.5942
1462
5850
0.649

1"
1
14
0.083
0.834
0.546
1867
7470
0.813

1"
1
13
0.095
0.81
0.515
2137
8550
0.918

1"
1
12
0.109
0.782
0.4801
2452
9810
1.037

1"
1
11
0.12
0.76
0.4534
2700
10800
1.128

1-1/8"
1.125
16
0.065
0.995
0.7776
1300
5200
0.736

1-1/4"
1.25
18
0.049
1.152
1.0418
880
3520
0.629

1-1/4"
1.25
16
0.065
1.12
0.9847
1170
4680
0.823

1-1/4"
1.25
14
0.083
1.084
0.9224
1492
5970
1.034

1-1/4"
1.25
13
0.095
1.06
0.882
1710
6840
1.172

1-1/4"
1.25
12
0.109
1.032
0.836
1960
7840
1.328

1-1/4"
1.25
11
0.12
1.01
0.8008
2160
8640
1.448

1-1/2"
1.5
16
0.065
1.37
1.4734
975
3900
0.9962

1-1/2"
1.5
13
0.095
1.31
1.3471
1425
5700
1.426

1-1/2"
1.5
11
0.12
1.26
1.2463
1800
7200
1.769

2"
2
16
0.065
1.87
2.7451
730
2920
1.343

2"
2
14
0.083
1.834
2.6404
933
3735
1.699

2"
2
13
0.095
1.81
2.5717
1375
5500
1.933

2"
2
11
0.12
1.76
2.4316
1718
6875
2.409

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
