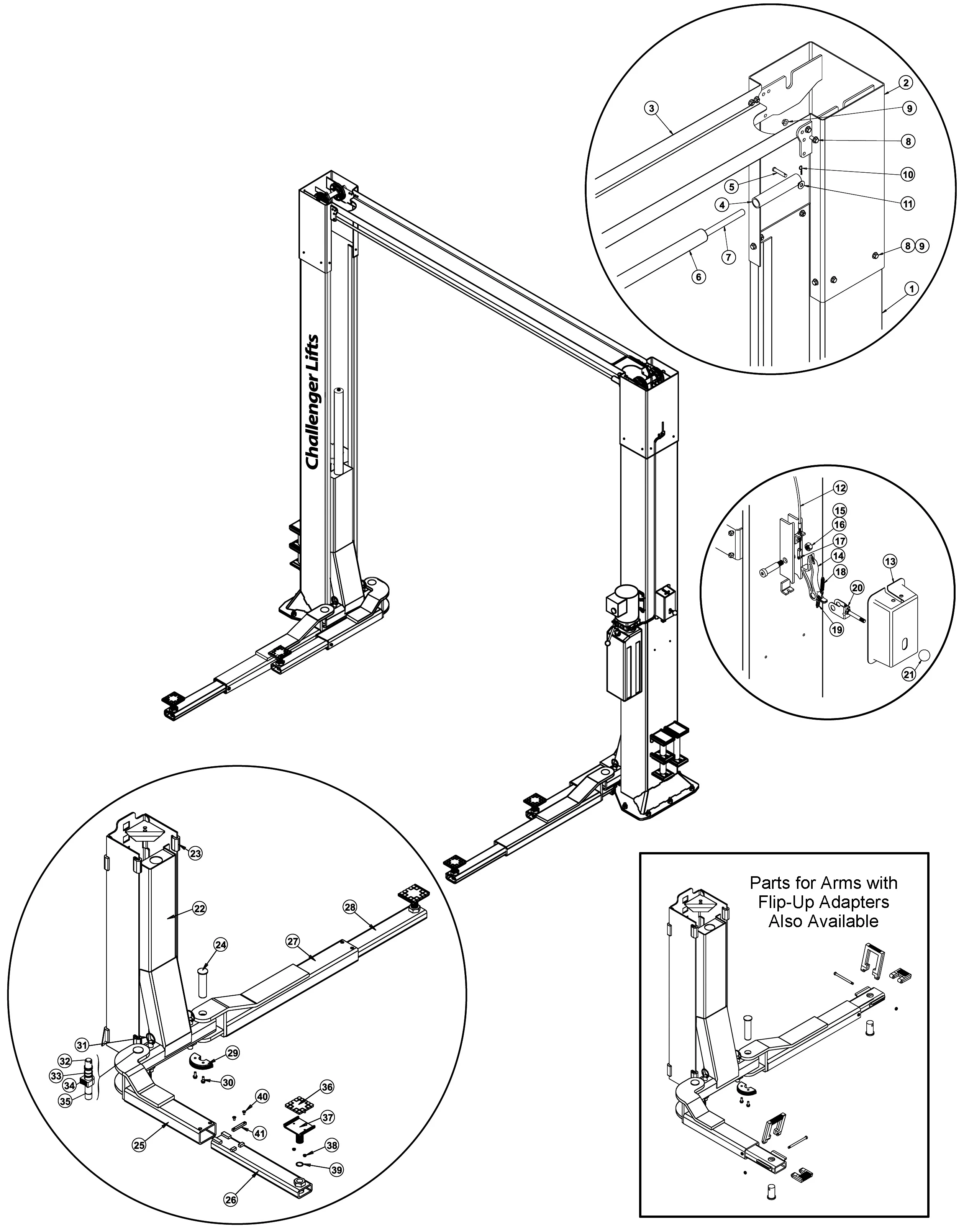

Parts for Challenger CL10

Above Ground / Surface Mount 2-Post Lifts – Challenger – CL10

Repair parts for Challenger Lifts Model CL-10 are available from SVI.

SVI is the #1 Source for repair parts for Challenger Lifts. Whether you need cables, sheaves, slider blocks, power units, height extensions and pads, or another part for your 2-post Challenger lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Also see other related parts breakdowns:

Parts for Challenger CL10 Synchronizer
Parts for Challenger CL10 Hydraulics

Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
Request Details
A2010-P
1
Power Column Weld

1
Request Details
A2010-I
1
Idler Column Weld

2
Request Details
A2055-0
2
Column Extension Weld - CL10

2
Request Details
A2055-2
2
Column Extension Weld - CL10-2

2
Request Details
A2055-3
2
Column Extension Weld - CL10-3

3
A2060
1
Overhead Channel

4
A1064
2
3/8 Dia x 1-7/8 Lg. Clevis Pin (Shutoff Bar)

5
36027
1
Overhead Limit Switch

6
31129
1
Pad

7
Request Details
36074
1
Shutoff Bar

8
Request Details
A1153
24
3/8-16NC Hex Flg. Hd. C.S. x 3/4" Lg.

9
F-HFLN-0375-16
A1154
24
3/8-16NC Hex Flg. Nut

10
Request Details
40124
2
Hairpin Cotter Pin

11
Request Details
31036
7
3/8" Flat Washer

12
A2135-0
1
Lock Release Cable Assembly - CL10

12
A2135-2
1
Lock Release Cable Assembly - CL10-2

12
A2135-3
1
Lock Release Cable Assembly - CL10-3

13
A1133
2
Lock Cover

14
A1140
2
Lock Pawl

15
30020
2
Lock Pin (5/8 x 1-1/2" Lg. Shoulder Bolt)

16
37013
2
Lock Pin Retainer (1/2-13NC Hex Lock Nut)

17
37119
1
Clevis Pin Kit

18
A1131
2
Lock Spring (3/8" O.D.)

19
A1132
1
Cable Spring (1/2" O.D.) - Idler Side Only

20
A1141
1
Lock Release Clevis Assembly - Power Side Only

21
36096
1
Ball Handle - Power Side Only

22
A2025
2
Carriage Weld (Line)

22
Request Details
B2026
2
Carriage Weld (Hose)

23
31023
16
Slide Block

24
A1078
4
Arm Pin Weld

25
Request Details
B2086-P
1
Front Female Arm Weld (Power)

25
Request Details
B2086-I
1
Front Female Arm Weld (Idler)

26
Request Details
B1094-F
2
Male Arm Weld (Front)

27
Request Details
B2091
2
Rear Female Arm Weld

28
Request Details
B1094-R10
2
Male Arm Weld (Rear)

29
A1070
4
Inner Gear

30
B1068
8
Arm Restraint Gear Hex Bolt

31
A1075
4
Pull Ring

32
A1073
4
Shaft

33
31109
4
Compression Spring (Restraint Shaft)

34
A1072
4
Outer Gear

35
36014
4
1" Ext. Retaining Ring

36
B1104
4
Foot Pad Rubber Insert (Square)

36
A11052
Foot Pad Rubber Insert (Sq) set of 4

36
A1104H
4
Urethane Snap-In Pad

36
A1104-Hx
4
Rubber Pad Octagon Heavy Duty

36
A1104-Hx
1
Rubber Pad Octagon Heavy Duty KIT of 4

36
4
Rubber Pad Insert (Round)

37
See BH-7232-17
B1101
4
Screw Adapter Weld

--
A1100 / B1100
4
Screw Adapter Assembly

38
B31061
8
M6 Keps Nut

39
Request Details
39111
4
Foot Pad Retainer Ring

40
B1081
8
M8x1.25x16 Flat Socket Head Screw

41
B1082
4
Arm Stop

42
1
PowerStation - Black (other colors available)

--
Arm Assemblies:

--
A2090
2
Rear Arm Assy. (Items: 27, 28, 40, 41)

--
A2085-P
1
Front Arm Assembly (Power) (Items: 25, 26, 40, 41)

--
A2085-I
1
Front Arm Assembly (Idler) (Items: 25, 26, 40, 41)

--
SVI Exclusive
4
Screw Adapter Base and Pad

--
A1077
4
Arm Res. Shaft Assy. - One Arm (Items: 31-35)

--
4
Arm Restraint KIT - One Arm (Includes BH-7232-19A, BH-7232-19E, and hardware)

--
Height Extension Hanger Bracket (1) - Holds 2

--
Height Extension Hanger Bracket (2) - Holds 4
