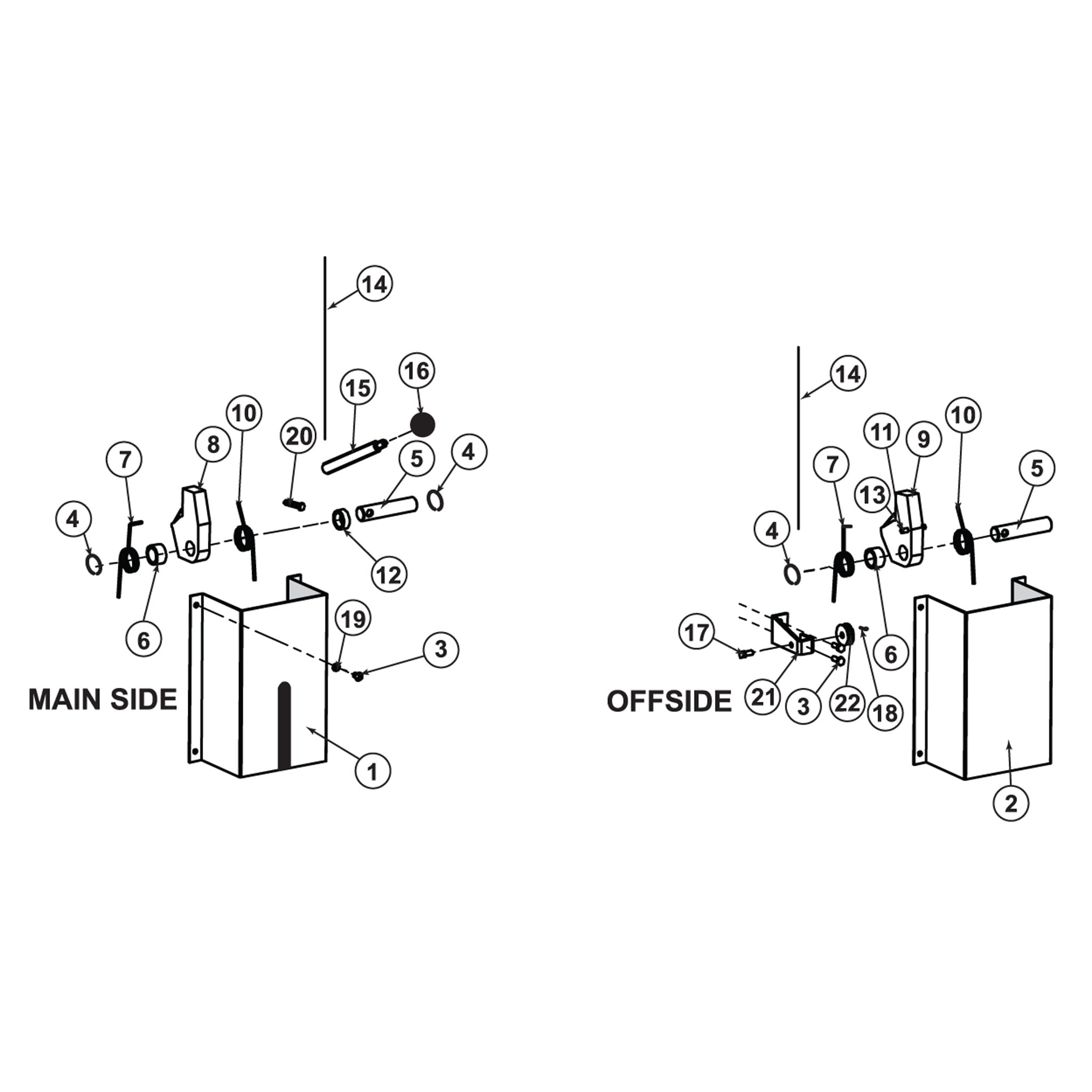

Parts for Tuxedo Lift TP12KSC-DX Lock Parts Detail

Above Ground / Surface Mount 2-Post Lifts – Tuxedo – TP12KSC-DX

Direct Fit™ Repair parts for Tuxedo Lift Model TP12KSC-DX are available from SVI.

SVI is the go-to supplier for repair parts for Tuxedo Lifts. Whether you need equalizer and lifting cables / chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Tuxedo lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Tuxedo Lift TP12KSC-DX:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
TP12KSC-DX-049.1
1
Latch Cover - Main Side

2
TP12KSC-DX-049.2
1
Latch Cover - Offside

3
TP12KSC-DX-039
26
Screw, M6 x 12mm

4
TP12KSC-DX-006
4
Retaining Ring

5
TP12KSC-DX-007
2
Latch Shaft

6
TP12KSC-DX-098
2
Bushing

7
TP12KSC-DX-099
2
Lock Release Spring

8
TP12KSC-DX-009.2
1
Safety Latch Mainside

9
TP12KSC-DX-009.1
1
Safety Latch Offside

10
TP12KSC-DX-008
2
Spring #1

11
TP12KSC-DX-097
1
Hex Nut, M6

12
TP12KSC-DX-079
2
Spacer

13
TP12KSC-DX-100
1
Screw, M6 x 20mm

14
TP12KSC-DX-101
1
Latch Release Cable

15
TP12KSC-DX-105
1
Latch Release Handle

16
TP12KSC-DX-106
1
Handle Knob, D40 x M10

17
TP12KSC-DX-104
3
Pin

18
TP12KSC-DX-014
3
Split Pin

19
TP12KSC-DX-048
12
Flat Washer, D6

20
TP12KSC-DX-107
1
Screw, M6 x 8mm

21
TP12KSC-DX-102
1
Small Bracket

22
TP12KSC-DX-103
3
Lock Release Cable Pulley

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
