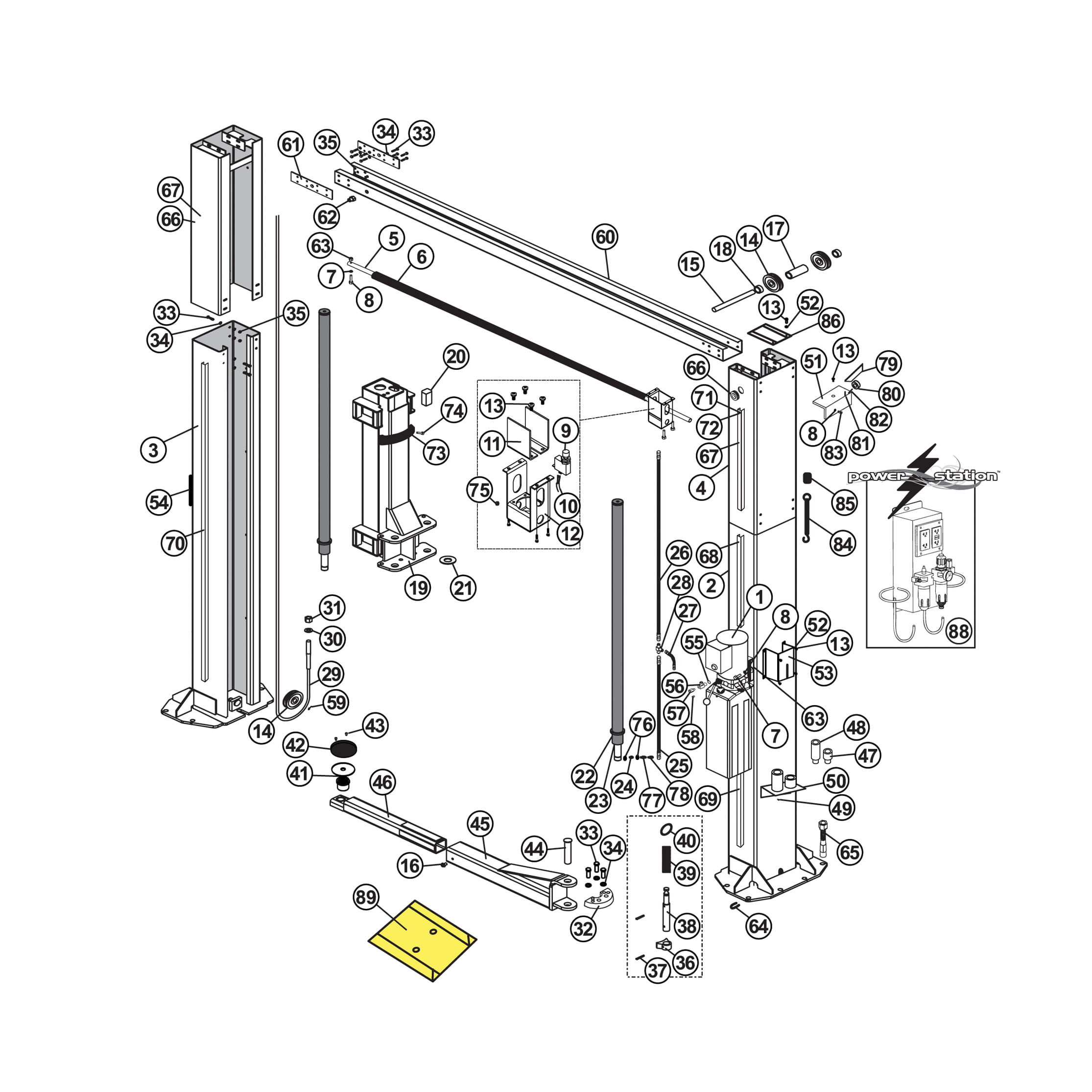

Parts for Tuxedo Lift TP12KSC-DX

Above Ground / Surface Mount 2-Post Lifts – Tuxedo – TP12KSC-DX

Direct Fit™ Repair parts for Tuxedo Lift Model TP12KSC-DX are available from SVI.

SVI is the go-to supplier for repair parts for Tuxedo Lifts. Whether you need equalizer and lifting cables / chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Tuxedo lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Tuxedo Lift TP12KSC-DX:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
PU-AC-220V-3.5-3050
1
Power Unit

2
TP12KSC-DX-053.1
1
Mainside Column

3
TP12KSC-DX-001.1
1
Offside Column

4
TP12KSC-DX-036.1
2
Column Extension

5
TP12KSC-DX-021
1
Overhead Shut-Off Bar

6
TP12KSC-DX-023
1
Cushion, Shutoff Bar

7
TP12KSC-DX-019
1
Bolt, M8 x 40mm

8
TP12KSC-DX-020
13
Washer, D8

9
TP12KSC-DX-042
1
Limit Switch

10
TP12KSC-DX-043
1
Limit Switch Wiring

11
TP12KSC-DX-040
1
Cover Plate, Limit Switch

12
TP12KSC-DX-041
1
Housing, Limit Switch

13
TP12KSC-DX-039
26
Screw, M6 x 12mm

14
TP12KSC-DX-034
6
Cable Sheave / Pulley

15
TP12KSC-DX-035
2
Pulley Shaft

16
TP12KSC-DX-058
4
Elevator Bolt, M10 x 16mm

17
TP12KSC-DX-033
2
Spacer 2#

18
TP12KSC-DX-032
4
Spacer 1#

19
TP12KSC-DX-025
2
Carriage

20
TP12KSC-DX-024
16
Slider Block

21
TP12KSC-DX-078
4
Flat Washer

22
TP12KSC-DX-026A
2
Hydraulic Cylinder

23
TP12KSC-DX-026Ax
2
Seal Kit for Hydraulic Cylinder

24
TP12KSC-DX-070.1
2
Cylinder Fitting

25
TP12KSC-DX-047
1
Hydraulic Hose, 71"

26
TP12KSC-DX-045
1
Hydraulic Hose, 33' 1"

27
TP12KSC-DX-044
1
Hydraulic Hose, 8-1/4"

28
TP12KSC-DX-046
1
Tee Fitting

29
TP12KSC-DX-073
2
Equalizer Cable, 38' 1-1/2"

30
TP12KSC-DX-072
4
Washer, D16

31
TP12KSC-DX-071
8
Nut, M16

32
TP12KSC-DX-064
4
Arm Restraint Main Gear

33
TP12KSC-DX-027
56
Bolt, M10 x 40mm

34
TP12KSC-DX-028
104
Flat Washer, D10

35
TP12KSC-DX-029
48
Nut, M10

36
TP12KSC-DX-066
4
Arm Restraint Engage Gear

37
TP12KSC-DX-065
8
Cotter Pin, D6 x 38mm

38
TP12KSC-DX-067
4
Arm Restraint Shaft

39
TP12KSC-DX-068
4
Arm Restraint Spring

40
TP12KSC-DX-069
4
Pull Ring

41
TP12KSC-DX-060.1
4
Lift Pad Adapter Base

42
TP12KSC-DX-059.1
4
Rubber Pad

43
TP12KSC-DX-112
8
Screw, M8 x 16mm

44
TP12KSC-DX-063
4
Swing Arm Pin

45
TP12KSC-DX-062
4
Swing Arm

46
TP12KSC-DX-061.1
4
Inner Swing Arm

47
TP12KSC-DX-004.1
4
2.6" Nesting Height Extension

48
TP12KSC-DX-005.1
4
5" Nesting Height Extension

49
TP12KSC-DX-026.12
6
Screw, M8 x 10mm

50
TP12KSC-DX-096
2
Height Extension Adapter Bracket

51
TP12KSC-DX-110
2
Mount Bracket

52
TP12KSC-DX-048
12
Flat Washer, D6

53
TP12KSC-DX-049.1
1
Latch Cover

54
TP12KSC-DX-049.2
1
Latch Cover

55
TP12KSC-DX-074
1
O-Ring, D11.8 x D1.8

56
TP12KSC-DX-075
1
Tee Fitting

57
TP12KSC-DX-076
1
Quick Fitting

58
TP12KSC-DX-077
1
Close Nut

59
TP12KSC-DX-084
2
Pin

60
TP12KSC-DX-018
1
Overhead Crossbeam

61
TP12KSC-DX-030
4
Connecting Plate

62
TP12KSC-DX-031
1
Cable Nut, M16

63
TP12KSC-DX-022
9
Lock Nut, M8

64
TP12KSC-DX-002
Shim Assortment 150 Pieces (3 Sizes)

65
BH-7075-05
TP12KSC-DX-003
12
Wedge Anchor Bolt, 3/4" x 7"

66
TP12KSC-DX-095
4
Rubber Grommet

67
TP12KSC-DX-094
2
Hose Cover, Upper MS

68
TP12KSC-DX-089
1
Hose Cover, Middle MS

69
TP12KSC-DX-090
1
Hose Cover, Lower MS

70
TP12KSC-DX-091
1
Hose Cover, OS

71
TP12KSC-DX-088
12
Flat Washer, D10

72
TP12KSC-DX-087
12
Screw, M4 x 40mm

73
TP12KSC-DX-093
2
Rubber Door Guard

74
TP12KSC-DX-092
4
Screw, M8 x 40mm

75
TP12KSC-DX-085
1
Cable Nut

76
TP12KSC-DX-081
4
Combined Washer

77
TP12KSC-DX-082
2
Throttle Valve

78
TP12KSC-DX-083
2
Connector Fitting

79
TP12KSC-DX-111
2
Latch Release Bracket

80
TP12KSC-DX-103
3
Lock Release Cable Pulley

81
TP12KSC-DX-014
3
Split Pin

82
TP12KSC-DX-104
3
Pin

83
TP12KSC-DX-086
4
Bolt, M8 x 30mm

84
TP12KSC-DX-108
1
Turnbuckle

85
TP12KSC-DX-109
2
Cable Lock

86
TP12KSC-DX-080
2
Cover

87
TP12KSC-DX-113
4
Screw, M6 x 18mm

88
1
Power Station Air / Electric Utility Box

89
1
Single Wheel Spotter Dish 10-3/4” x 15” Wide

89
1
Dual Wheel Spotter Dish 20-1/8” x 15” Wide
