Parts for Tuxedo Lift TP12KSC-DX Hydraulic Cylinder

Above Ground / Surface Mount 2-Post Lifts – Tuxedo – TP12KSC-DX

Direct Fit™ Repair parts for Tuxedo Lift Model TP12KSC-DX are available from SVI.

SVI is the go-to supplier for repair parts for Tuxedo Lifts. Whether you need equalizer and lifting cables / chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Tuxedo lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Tuxedo Lift TP12KSC-DX:

Add to
Quote
Add to
Order

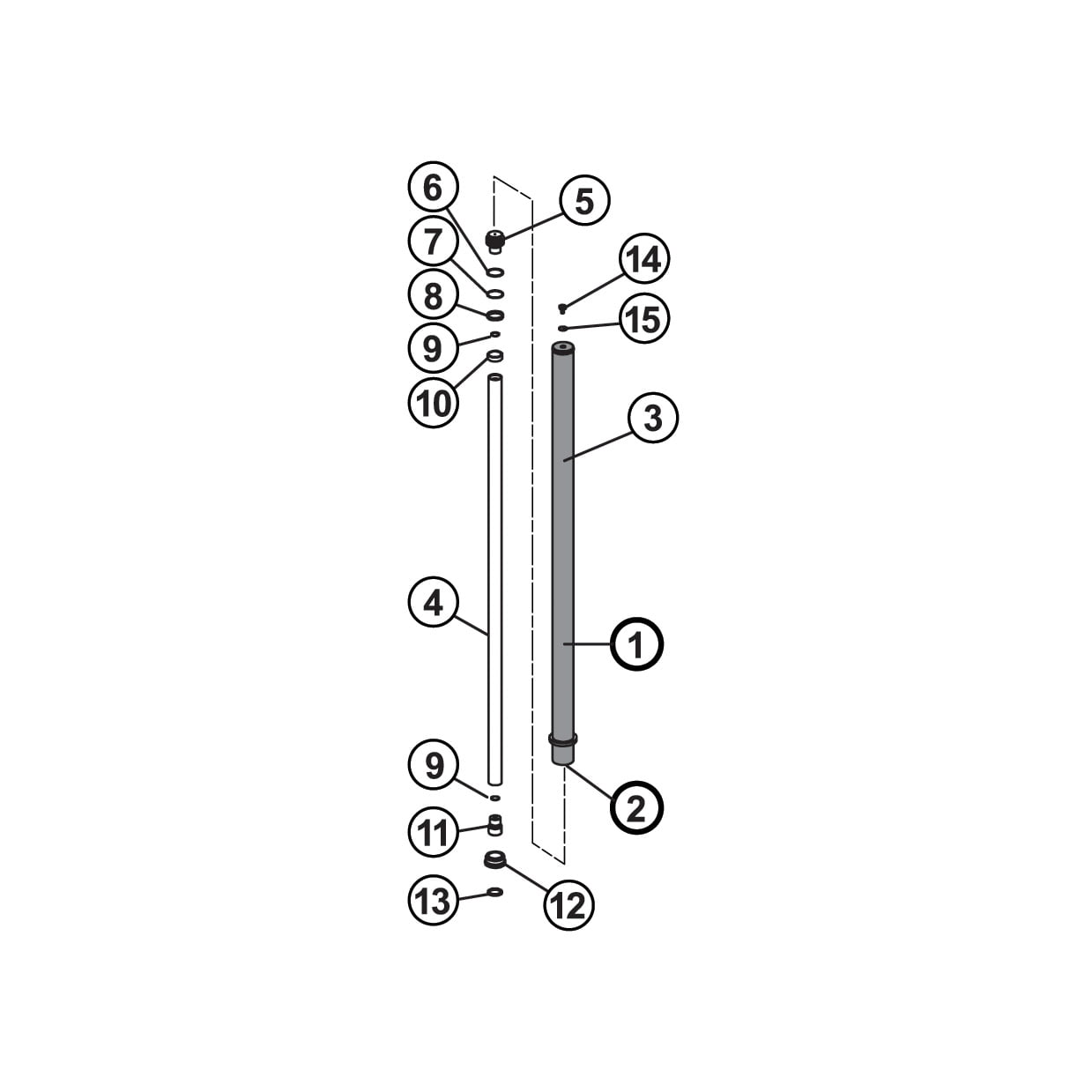

Item
SVI Part #
OEM #
QTY
Description

1
TP12KSC-DX-026A
2
Hydraulic Cylinder

2
TP12KSC-DX-026Ax
2
Seal Kit for Hydraulic Cylinder

3
TP12KSC-DX-026.1
2
Cylinder body

4
TP12KSC-DX-026.6
2
Piston Rod

5
TP12KSC-DX-026.11
2
Piston

6
TP12KSC-DX-026.10
2
Seal Ring, D50.5 x D35.5

7
TP12KSC-DX-026.9
2
O-Ring, D44.7 x D3.5

8
TP12KSC-DX-026.8
2
Guide Ring

9
TP12KSC-DX-026.5
4
O-Ring, D26 x D3.5

10
TP12KSC-DX-026.7
2
Limit Ring

11
TP12KSC-DX-026A.4
2
Cylinder Head

12
TP12KSC-DX-026.3
2
Guiding Ring

13
TP12KSC-DX-026.2
2
Dust Ring

14
TP12KSC-DX-026.12
2
Screw, M8 x 10mm

15
TP12KSC-DX-026.13
2
Copper Washer, D8
