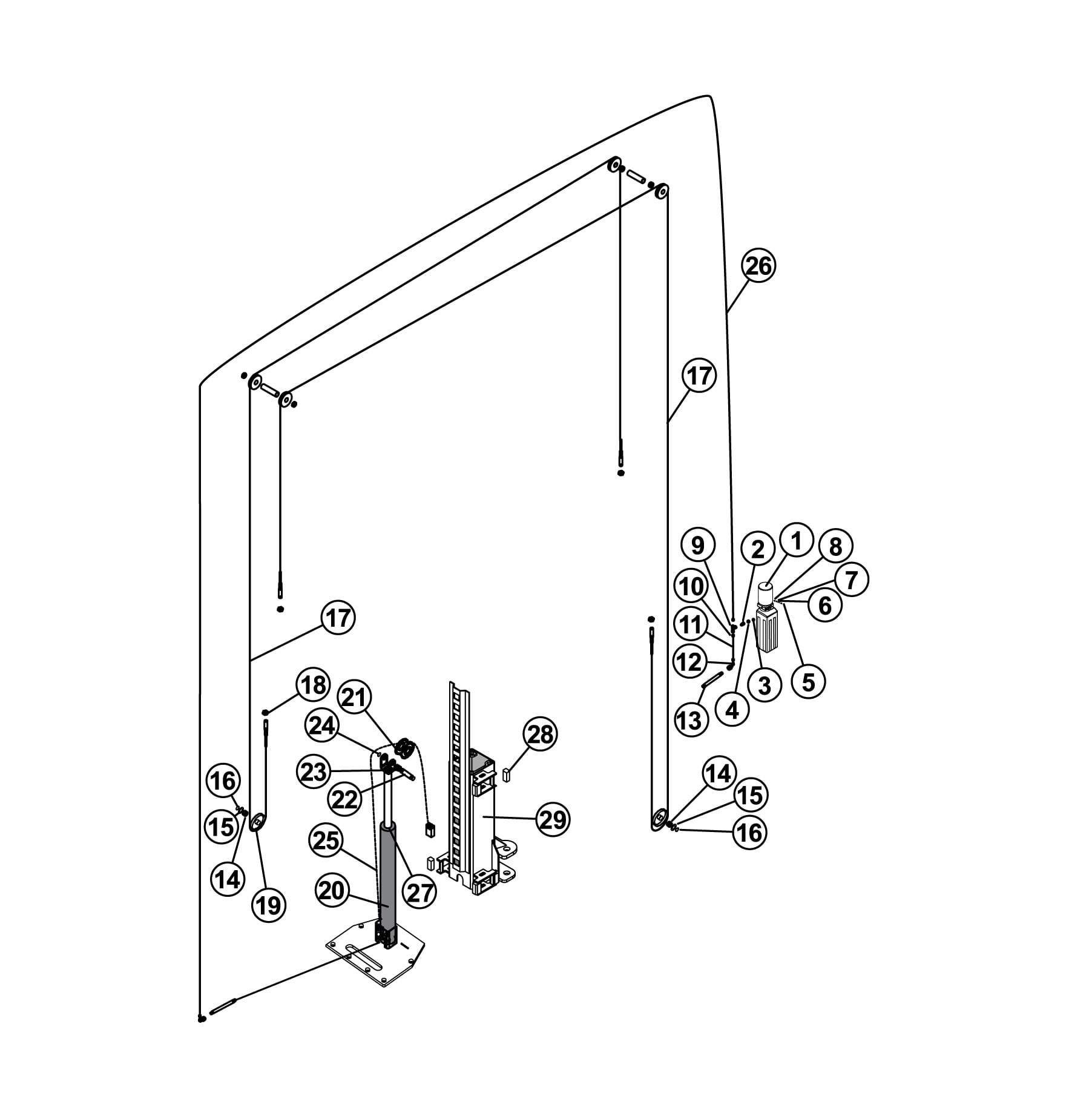

Parts for Tuxedo TP11KAC Hydraulic Cylinder, Cables, and Chain Detail

Above Ground / Surface Mount 2-Post Lifts – Tuxedo – TP11KAC

Direct Fit™ Repair parts for Tuxedo Lift Model TP11KAC are available from SVI.

SVI is the go-to supplier for repair parts for Tuxedo Lifts. Whether you need equalizer and lifting cables / chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Tuxedo lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Tuxedo Lift TP11KAC:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
1
Power Unit

2
TP11KAC-086
1
Fitting PU to Tee Fitting

3
TP11KAC-084
2
Washer PU Fitting

4
TP11KAC-085
1
Nut M14 X 1.5

5
TP11KAC-080
4
Bolt M8 X 15

6
TP11KAC-081
4
Flat Washer #8

7
TP11KAC-082
4
Spring Washer #8

8
TP11KAC-083
4
Locknut M8

9
TP11KAC-087
1
Tee Fitting

10
TP11KAC-088
1
Nut 9/16" PU Fitting

11
TP11KAC-089
1
Hydraulic Hose Short

12
TP11KAC-090
2
Fitting 90 Degree Elbow

13
TP11KAC-091
2
Fitting Straight

14
TP11KAC-008
2
Bushing for Pulley

15
TP11KAC-009
2
Spindle Spring Washer

16
TP11KAC-010
2
Cover

17
TP11KAC-099
2
Equalizer Cable (33' 6")

18
TP11KAC-100
8
Cable Nut

19
TP11KAC-007
2
Cable Sheave / Pulley (lower)

20
TP11KAC-092
2
Hydraulic Cylinder

21
TP11KAC-097
2
Chain Roller

22
TP11KAC-095
2
Pulley Pin

23
TP11KAC-096
4
Bushing

24
TP11KAC-094
4
Chain Pulley "C" Clip

25
TP11KAC-093
2
Chain (See SVI Chain Book)

26
TP11KAC-098
1
Hydraulic Hose Long

27
TP11KAC-3090
2
Seal Kit

28
TP11KAC-038
16
Slider Block

29
TP11KAC-039
2
Carriage

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
