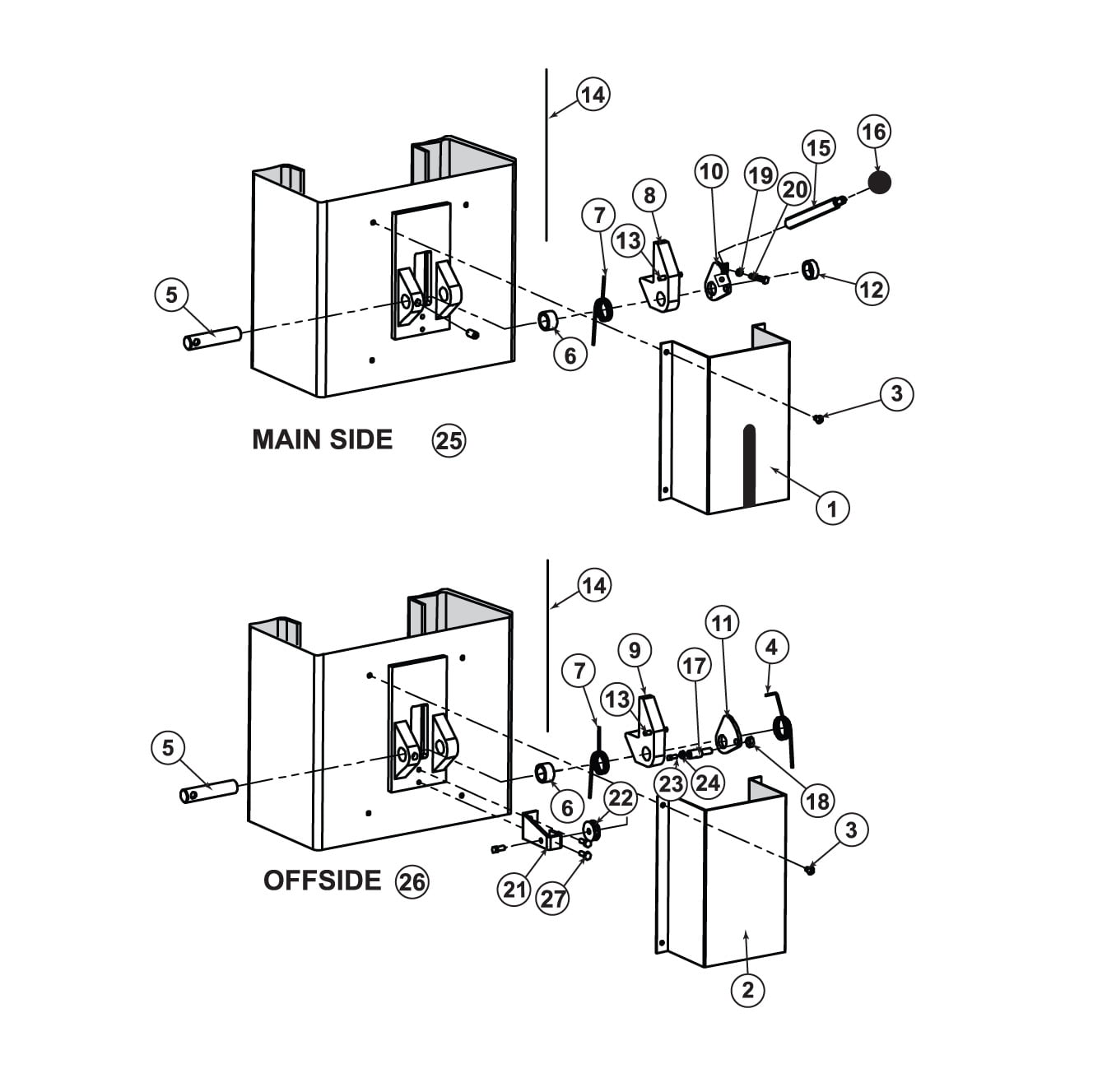

Parts for Tuxedo Lift TP11KAC Lock Parts Detail

Above Ground / Surface Mount 2-Post Lifts – Tuxedo – TP11KAC

Direct Fit™ Repair parts for Tuxedo Lift Model TP11KAC are available from SVI.

SVI is the go-to supplier for repair parts for Tuxedo Lifts. Whether you need equalizer and lifting cables / chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Tuxedo lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Tuxedo Lift TP11KAC:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
TP11KAC-061
1
Lock Release Cover (Main Side)

2
TP11KAC-068
1
Lock Release Cover (Offside)

3
TP11KAC-061-1
8
Screw for Lock Cover

4
TP11KAC-072
1
Secondary Lock Spring

5
TP11KAC-066
2
Lock Shaft

6
TP11KAC-070
2
Spacer Bushing

7
TP11KAC-069
2
Main Lock Spring

8
TP11KAC-049
1
Lock Mainside

9
TP11KAC-057
2
Lock Offside

10
TP11KAC-073-1
1
Idler Plate - Mainside

11
TP11KAC-058
1
Control Plate - Idler Plate (offside)

12
TP11KAC-073
2
Spacer Bushing

13
TP11KAC-042
2
Carriage Lock Roll Pin

14
TP11KAC-064
1
Safety Cable

15
TP11KAC-065
1
Lock Release Handle

16
TP11KAC-074-1
1
Ball Safety Latch Handle

17
TP11KAC-060
1
Bolt Safety Latch

18
TP11KAC-059
1
Nut

19
TP11KAC-079-1
1
Nut

20
TP11KAC-079
1
Bolt M6 X 25

21
TP11KAC-056
1
Cable Sheave Bracket

22
TP11KAC-075
3
Lock Release Cable Pulley

23
TP11KAC-071
3
Inner Hex Screw

24
TP11KAC-071-1
3
Nut M6

25
TP11KAC-3118
1
Carriage Lock Assembly Main Side

26
TP11KAC-3119
1
Carriage Lock Assembly Offside

27
TP11KAC-062
6
Bolt
