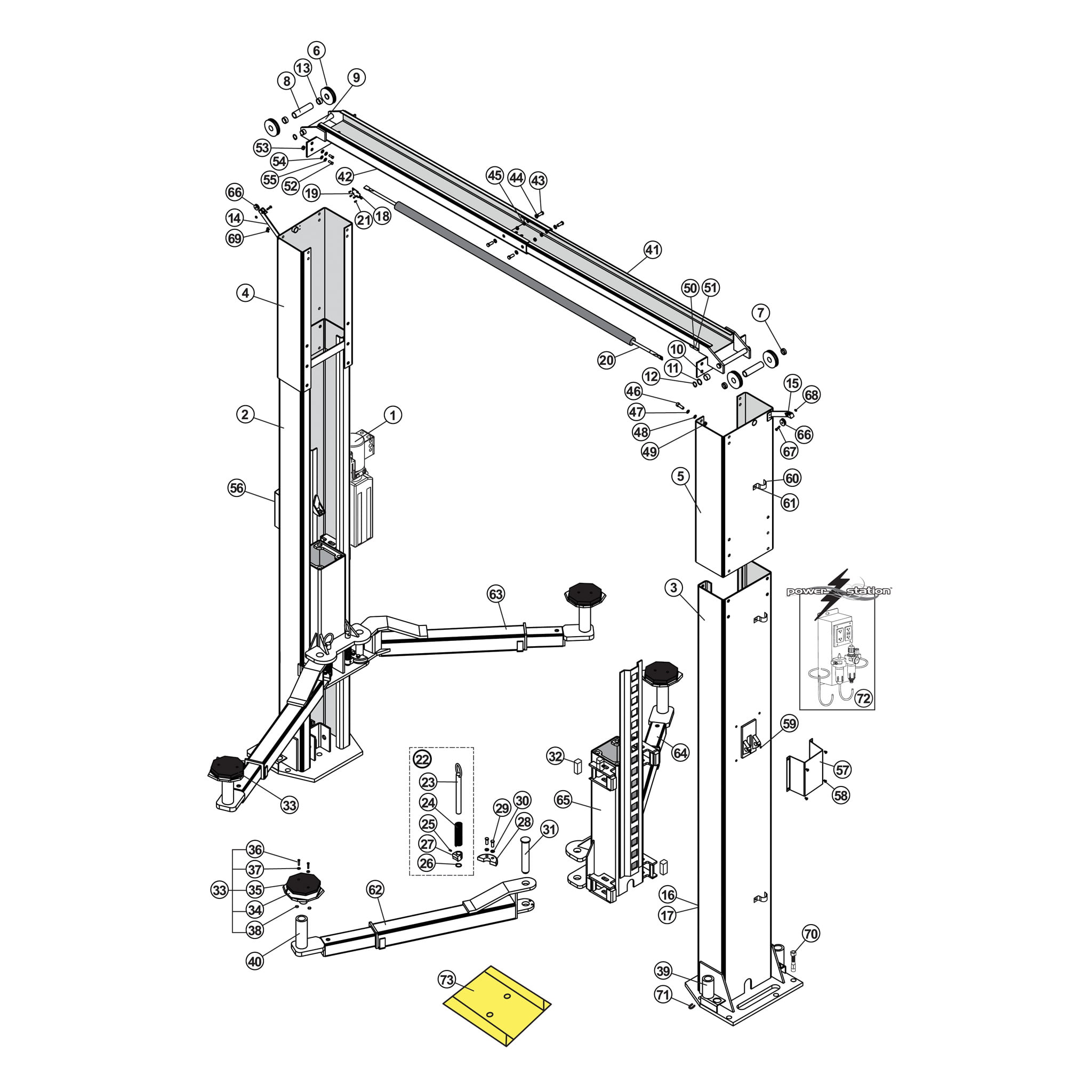

Parts for Tuxedo Lift TP11KAC

Above Ground / Surface Mount 2-Post Lifts – Tuxedo – TP11KAC

Direct Fit™ Repair parts for Tuxedo Lift Model TP11KAC are available from SVI.

SVI is the go-to supplier for repair parts for Tuxedo Lifts. Whether you need equalizer and lifting cables / chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Tuxedo lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Tuxedo Lift TP11KAC:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
1
Power Unit

2
TP11KAC-055
1
Column Main Side

3
TP11KAC-002
1
Column Offside

4
TP11KAC-001A
1
Column Extension Mainside

5
TP11KAC-001B
1
Column Extension Offside

6
TP11KAC-020
4
Cable Sheave / Pulley (upper)

7
TP11KAC-019
2
Cover

8
TP11KAC-021
2
Cover

9
TP11KAC-022
Cable Sheave Shaft

10
TP11KAC-026
4
Bushing

11
TP11KAC-018
4
Flat Washer

12
TP11KAC-017
4
Cable Sheave Retainer

13
TP11KAC-025
2
Cover

14
TP11KAC-063
2
Bracket for Safety Cable (Main Side)

15
TP11KAC-076
2
Bracket for Safety Cable (Offside)

16
TP11KAC-092
2
Hydraulic Cylinder

17
TP11KAC-A5
2
Seal Kit

18
TP11KAC-016
1
Overhead Limit Switch

19
TP11KAC-A7
Limit Switch Wire

20
TP11KAC-012
1
Overhead Shut Off Bar

21
TP11KAC-023
4
Cross Screw for Limit Switch

22
TP11KAC-067
1
Arm Restraint Assembly

23
TP11KAC-037
4
Arm Restraint Pin

24
TP11KAC-036
4
Arm Restraint Spring

25
TP11KAC-034
6
Arm Restraint Cotter Pin

26
TP11KAC-033
4
Spindle Spring Washer

27
TP11KAC-035
4
Arm Restraint Engage Gear

28
TP11KAC-048
4
Arm Restraint Main Gear

29
TP11KAC-046
8
Bolt

30
TP11KAC-047
8
Lock Washer

31
TP11KAC-040
4
Arm Pin

32
TP11KAC-038
16
Slider Block

33
TP11KAC-043
4
Adapter with Pad

34
TP11KAC-102A
4
Adapter Base Only

35
TP11KAC-051
4
Rubber Arm Pad

36
TP11KAC-052
8
Elevator Bolt

37
TP11KAC-053
8
Flat Washer

38
TP11KAC-054
8
Nut

39
TP11KAC-044
4
Height Extension Short (1)

40
TP11KAC-045
4
Height Extension Tall (1)

41
TP11KAC-011
1
Overhead Inner (Male)

42
TP11KAC-024
1
Overhead Outer (Female)

43
TP11KAC-013
6
Bolt

44
TP11KAC-014
12
Flat Washer

45
TP11KAC-015
6
Nut

46
TP11KAC-003
16
Bolt for Overhead Beam to Column

47
TP11KAC-004
32
Washer for Overhead Beam to Column

48
TP11KAC-005
16
Lock Washer

49
TP11KAC-006
16
Nut

50
TP11KAC-027
1
Retaining Ring

51
TP11KAC-028
1
Flat Washer

52
TP11KAC-029
8
Bolt

53
TP11KAC-030
8
Nut

54
TP11KAC-031
16
Flat Washer

55
TP11KAC-032
8
Lock Washer

56
TP11KAC-061
1
Lock Release Cover (Main Side)

57
TP11KAC-068
1
Lock Release Cover (Offside)

58
TP11KAC-061-1
8
Screw for Lock Cover

59
TP11KAC-074
2
Hex Head Cap Screw

60
TP11KAC-055-2
6
Hose Clip

61
TP11KAC-055-1
6
Hex Head Cap Screw

62
TP11KAC-050
2
Swing Arm Assembly Rear

63
TP11KAC-041A
1
Arm Assembly Left Front

64
TP11KAC-041B
1
Arm Assembly Right Front

65
TP11KAC-039
2
Carriage

66
TP11KAC-075
3
Lock Release Cable Pulley

67
TP11KAC-077
2
Screw for Safety Cable Pulley Bracket

68
TP11KAC-078
2
Locknut

69
TP11KAC-062
6
Bolt

70
TP11KAC-A1
Wedge Anchor Bolt

71
1
Shim Assortment 150 Pieces (3 Sizes)

72
1
Power Station Air / Electric Utility Box

73
1
Single Wheel Spotter Dish 10-3/4” x 15” Wide

73
1
Dual Wheel Spotter Dish 20-1/8” x 15” Wide

--
NOT SHOWN:

--
TP11KAC-3030
4
Truck Adapter Bracket

--
TP11KAC-3052
Bolt for Truck Adapter Bracket

--
TP11KAC-3089
2
Saddle Adapter

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
