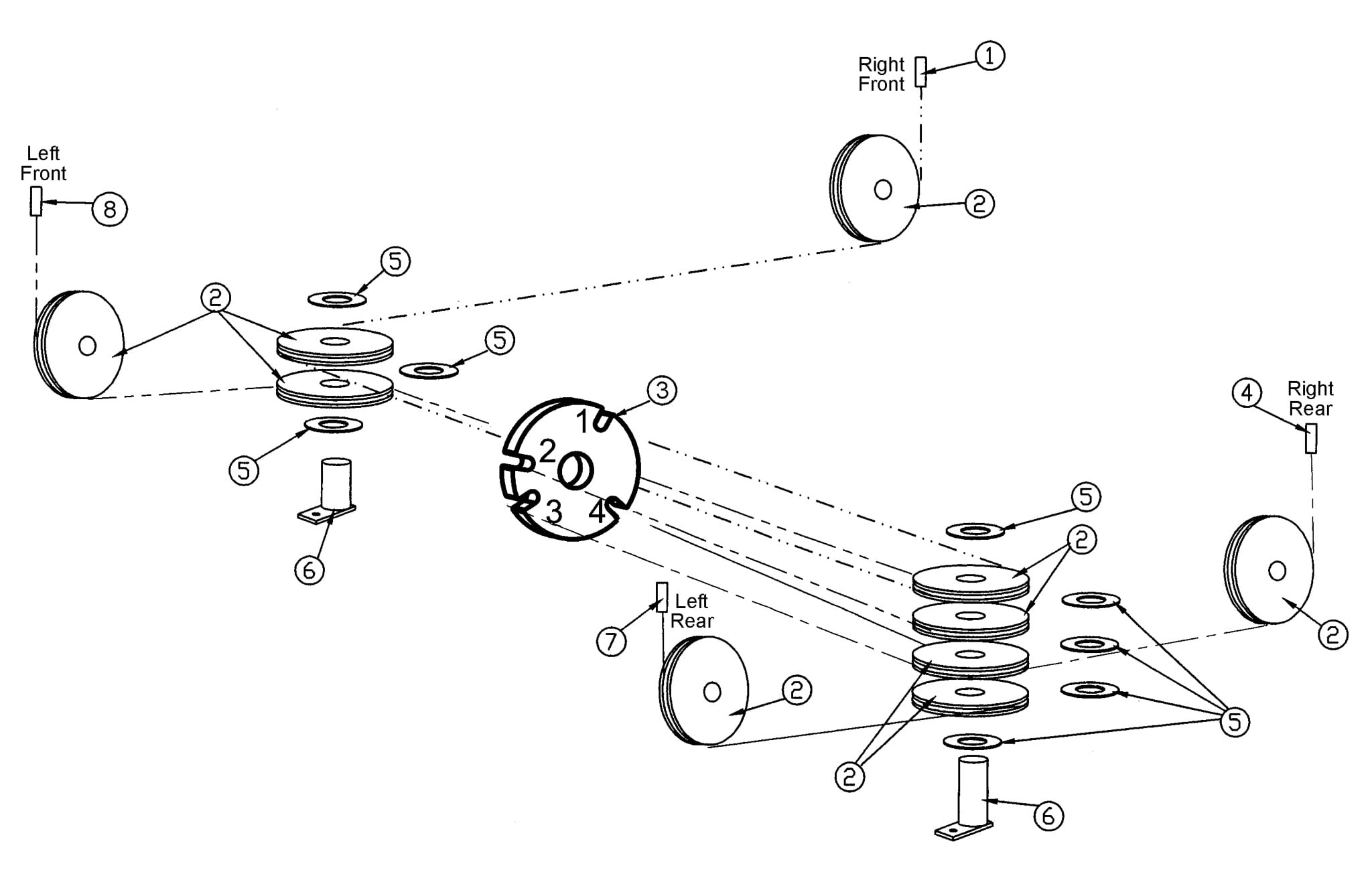

Parts for Rotary Lift AR12 Cables and Sheaves

Above Ground / Surface Mount 4-Post Lifts – Rotary Lift – AR12

Direct Fit™ brand Repair Parts for Rotary Lifts Model AR12 are available from SVI.

SVI is the your best choice for repair parts for Rotary Lifts. Whether you need cables, sheaves, chain, chain rollers, air cylinders, hydraulic cylinders, seal kits, lock release air valve switch, power units, or another part for your 4-post Rotary lift, SVI has what you need. We offer excellent pricing, top-notch customer service and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Rotary AR12:

If it’s cables you’re looking for, we have them! Cables vary based on placement on the lift and also varies on the wheelbase. Please confirm before ordering.

CABLES LISTED BELOW:

DescriptionAR12
158-1/2″ WB		AR12
182-1/2″ WB		AR12
206-1/2″ WB		AR12NB
158-1/2″ WB		AR12NB
182-1/2″ WB		AR12NB
206-1/2″ WB
Right Front CableBH-7544-53BH-7544-51BH-7544-55BH-7544-87BH-7544-89Contact SVI
Left Front CableBH-7544-54BH-7544-52BH-7544-56BH-7544-86BH-7544-88Contact SVI
Right Rear CableBH-7544-50BH-7544-50BH-7544-50BH-7544-85BH-7544-85BH-7544-85
Left Rear CableBH-7544-49BH-7544-49BH-7544-49BH-7544-84BH-7544-84BH-7544-84
Add to
Quote
Add to
Order
Item
SVI Part #
OEM#
Req
Description

1
BH-7544-53
S130027
1
RF Cable 30' 8-1/2" (158-1/2 WB)
View
1
BH-7544-51
S130025
1
RF Cable 32' 8-1/2" (182-1/2" WB)
View
1
BH-7544-55
S130021
1
RF Cable 34' 8-1/2" (206-1/2" WB)
View
1
BH-7544-87
S130033
1
RF Cable 30' 3-1/2" (158-1/2" WB) NB
View
1
BH-7544-89
S130041
1
RF Cable 32' 3-1/2" (182-1/2" WB) NB
View
1
Request Details
S130138
1
RF Cable (206-1/2" WB) NB
2
BH-7531-51
FC5804-2
10
Cable Sheave
View
2
BH-7531-51G
FC5804-2x
Cable Sheave - Greaseable
View
3
BH-7529-27
S120075
1
Pull Bar
View
4
BH-7544-50
S130019
1
Right Rear Cable 15' 5-1/2"
View
4
BH-7544-85
S130039
1
Right Rear Cable 15' 1/2" (Narrow Bay)
View
5
BH-7514-73
FC5843-3
7
Spacer
View
6
BH-7501-47
FC555-1
2
Front Sheave Pin
View
6
BH-7501-47G1
FC555-1x
2
Greaseable Sheave Pin (1 Hole at 2-3/8")
View
6
BH-7501-47G1-C
2
Greaseable Sheave Pin (1 Hole at 3-1/2")
View
6
BH-7501-47G2
FC555-1x
2
Greaseable Sheave Pin (2 Holes)
View
6
BH-7501-47G4
FC555-1x
2
Greaseable Sheave Pin (4 Holes)
View
6
Request Details
S120666
Rear Sheave Pin
7
BH-7544-49
S130018
1
Left Rear Cable 10' 9-1/4"
View
7
BH-7544-84
S130038
1
Left Rear Cable 10' 4-1/2" (Narrow Bay)
View
8
BH-7544-54
S130026
1
Left Front Cable 26' 1/4" (158-1/2 WB)
View
8
BH-7544-52
S130024
1
Left Front Cable 28' 1/4" (182-1/2" WB)
View
8
BH-7544-56
S130020
1
Left Front Cable 30' 1/4" (206-1/2" WB)
View
8
BH-7544-86
S130032
1
LF Cable 25' 7-1/2" (158-1/2" WB) NB
View
8
BH-7544-88
S130040
1
LF Cable 27' 7-1/2" (182-1/2" WB) NB
View
8
Request Details
S130137
1
LF Cable (206-1/2" WB) NB
--
Not pictured:
--
F-HC-0312-18-0750
2
5/16"-18NC HHCS x 3/4" Lg.
View
--
BH-7529-26
S120068
1
Retainer Weld
View
