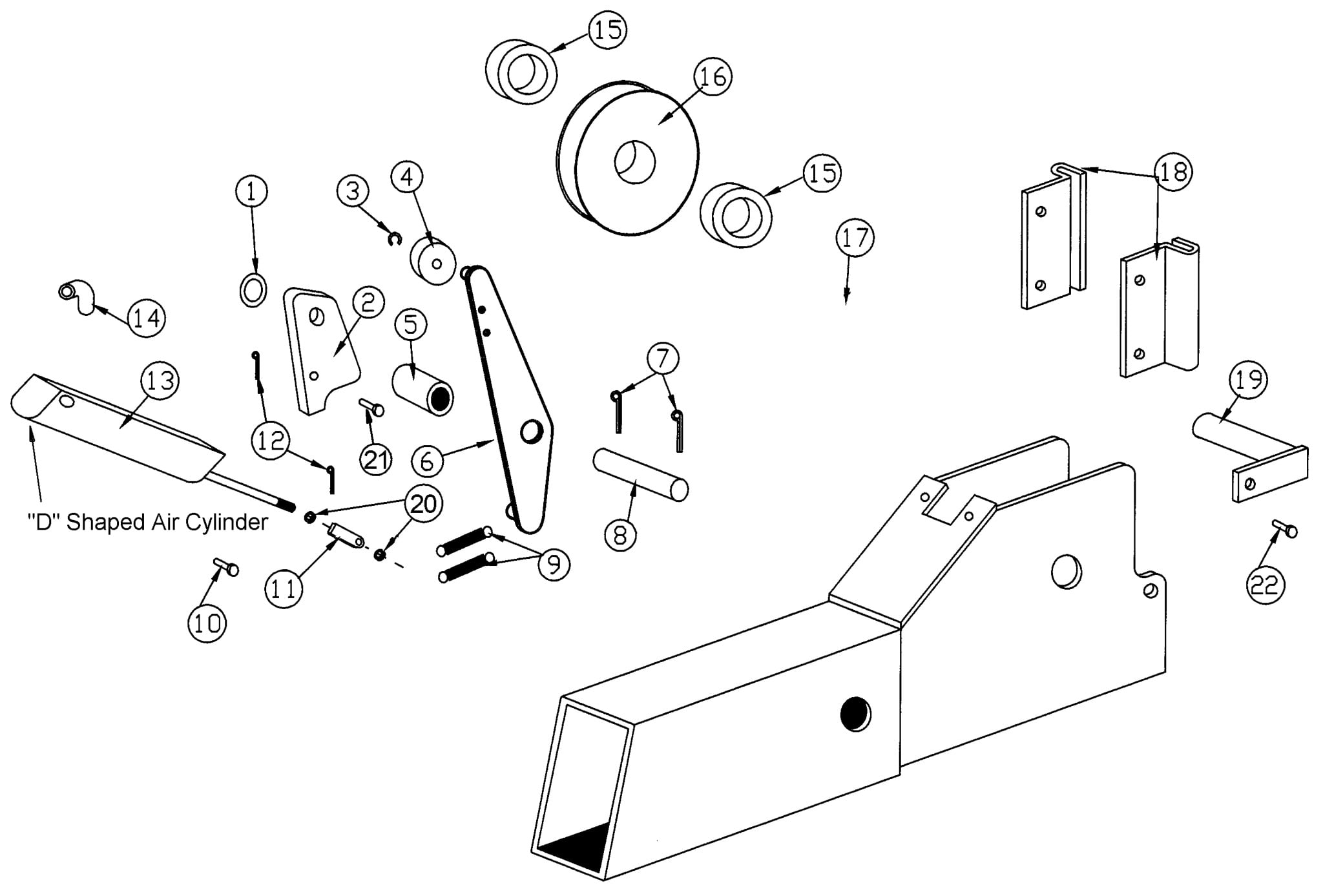

Parts for Rotary AR12 Lock Detail

Above Ground / Surface Mount 4-Post Lifts – Rotary Lift – AR12

Direct Fit™ brand Repair Parts for Rotary Lifts Model AR12 are available from SVI.

SVI is the your best choice for repair parts for Rotary Lifts. Whether you need cables, sheaves, chain, chain rollers, air cylinders, hydraulic cylinders, seal kits, lock release air valve switch, power units, or another part for your 4-post Rotary lift, SVI has what you need. We offer excellent pricing, top-notch customer service and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Rotary AR12:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Qty
Description

1
FC5301-98
Spacer

2
FC5706-10
4
Locking Latch

3
41410
4
3/8" Ext. Retaining Ring 5304-37

4
FC553-21
8
Slack Cable Roller

5
FC5706-9
4
Spacer

6
S120103
4
Kicker

7
41201
8
1/8" x 1-1/4" Cotter Pin

8
FC5901-7
4
Lock Shaft

9
FC522-25
8
Spring

10
Request Details
S130051
Clevis Pin

11
FC5706-7
4
Clevis

12
Request Details
41901
8
1/4" Hair Pin Cotter

13*
S130061
4
Air Cylinder (1 port) (properly ID)

13*
S130017
4
Air Cylinder (2 port) (properly ID)

14
FC5224-39
4
Elbow

15
FC5927-10
8
Spacer

16
FC5804-2
10
Sheave

16
FC5804-2x
Sheave-Greaseable

17
FC5802-18
4
Yoke End Cover

18
FC5706-16
8
Slider 2-Hole Version (pictured)

18
FC5301-97
Slider 1-Hole Version

19
FC5224-21
Sheave Pin 4.25"

19
FC5728-7
Sheave Pin 5.5"

19
FC555-1x
Greaseable Sheave Pin (1 Hole at 2-3/8")

19
Greaseable Sheave Pin (1 Hole at 3-1/2")

19
FC555-1x
Greaseable Sheave Pin (2 Holes)

19
FC555-1x
Greaseable Sheave Pin (4 Holes)

20
40622
1/4"-28NF Hex Nut

21
Request Details
S130051
Clevis Pin

--
40782
1/4 Flatwasher

--
S130120
Nylon Tree Rivet

22
40252
Hex Head Cap Screw

* Various shapes and styles of air cylinders have been used over the years. Consult SVI sales for a "Direct Fit" solution.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
