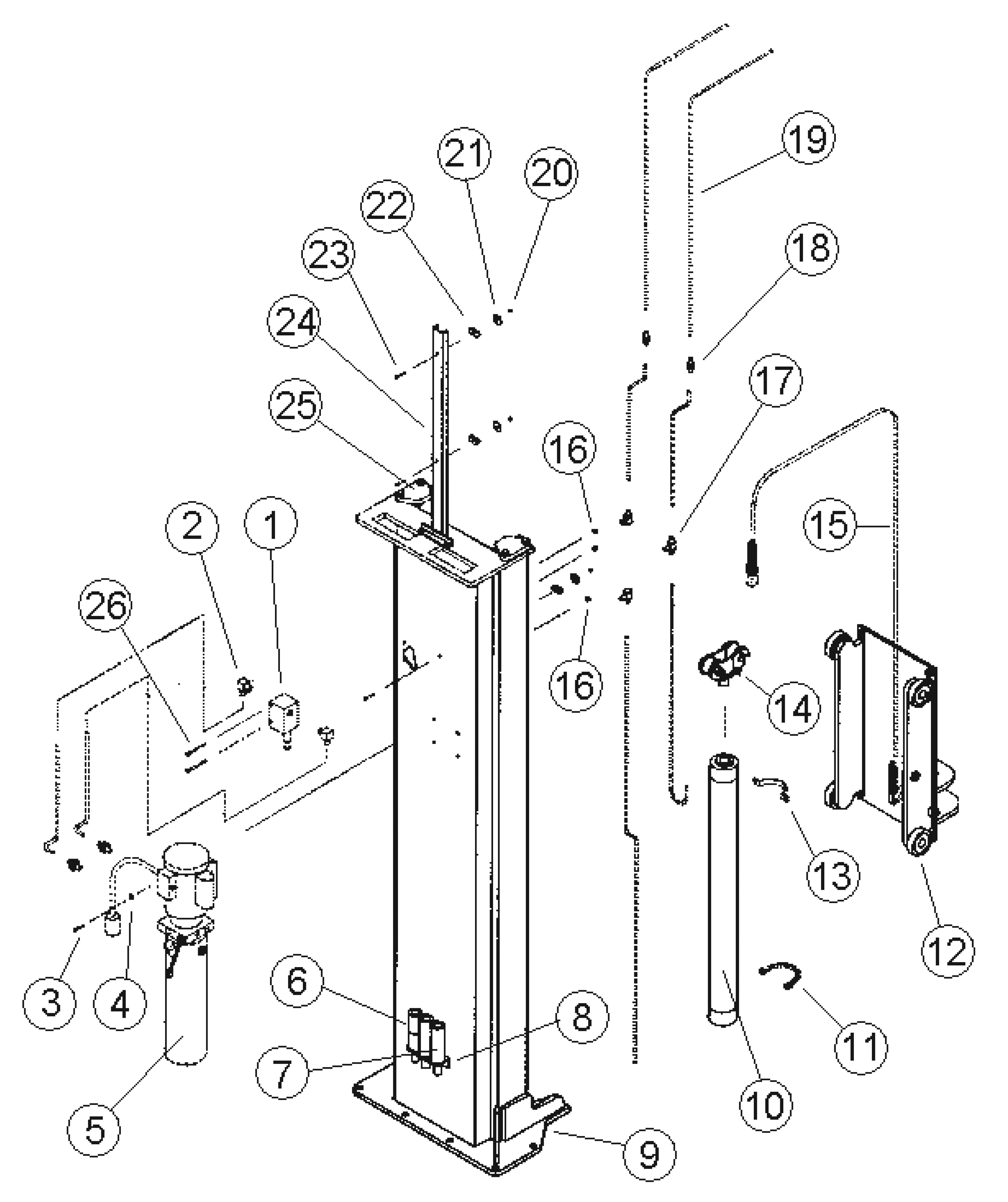

Parts for Mohawk System 1A Power Unit Column Mainside

Above Ground / Surface Mount 2-Post Lifts – Mohawk – SYSTEM IA

SVI is the #1 Source for repair parts for Mohawk Lifts. Whether you need cables, sheaves, slider blocks, power units, height extensions and pads, or another part for your 2-post Mohawk lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Mohawk Lift System 1A:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description

1
601-410-030
Diverter Valve

2
601-420-011
Straight Fitting #6 JIC to #6 JIC

3
600-640-012
5/16”-18 x 3/4” Bolt

4
600-710-003
5/16” Flatwasher

5
601-300-045
Power Unit

6
025-002-127
3” Nesting Height Extension

6
4” Nesting Height Extension

6
5” Nesting Height Extension

7
025-002-128
6” Nesting Height Extension

8
025-002-126
Height Extension Bracket

9
009-010-005
Power Unit Column Assy

10
007-007-001
Hydraulic Cylinder

11
009-001-122
Cylinder Clamp - Bottom

12
600-860-012
Carriage Roller Assembly

13
009-010-107
Cylinder Clamp - Top

14
009-010-040
Chain Roller / Yoke Assembly

15
600-830-001
Leaf Chain order 77 pitches

16
600-690-001
5/16”-18 Lock Nut

17
601-420-046
Tee O-Ring to #6 JIC to #6 JIC

18
601-420-011
Straight Fitting #6 JIC to #6 JIC

19
009-010-018
59-1/4” Steel Tube Assembly

20
600-690-005
1/4”-20 Lock Nut

21
F-FW-0312-FW
600-710-006
5/16” Fender Washer

22
601-710-001
Double Hyd Line Clip

23
600-640-019
1/4”-20 x 1-1/2” Bolt

24
007-007-033
Hydraulic Line Support

25
009-001-141
Stop Plate

26
600-640-020
5/16”-18 x 3-1/2” Bolt
