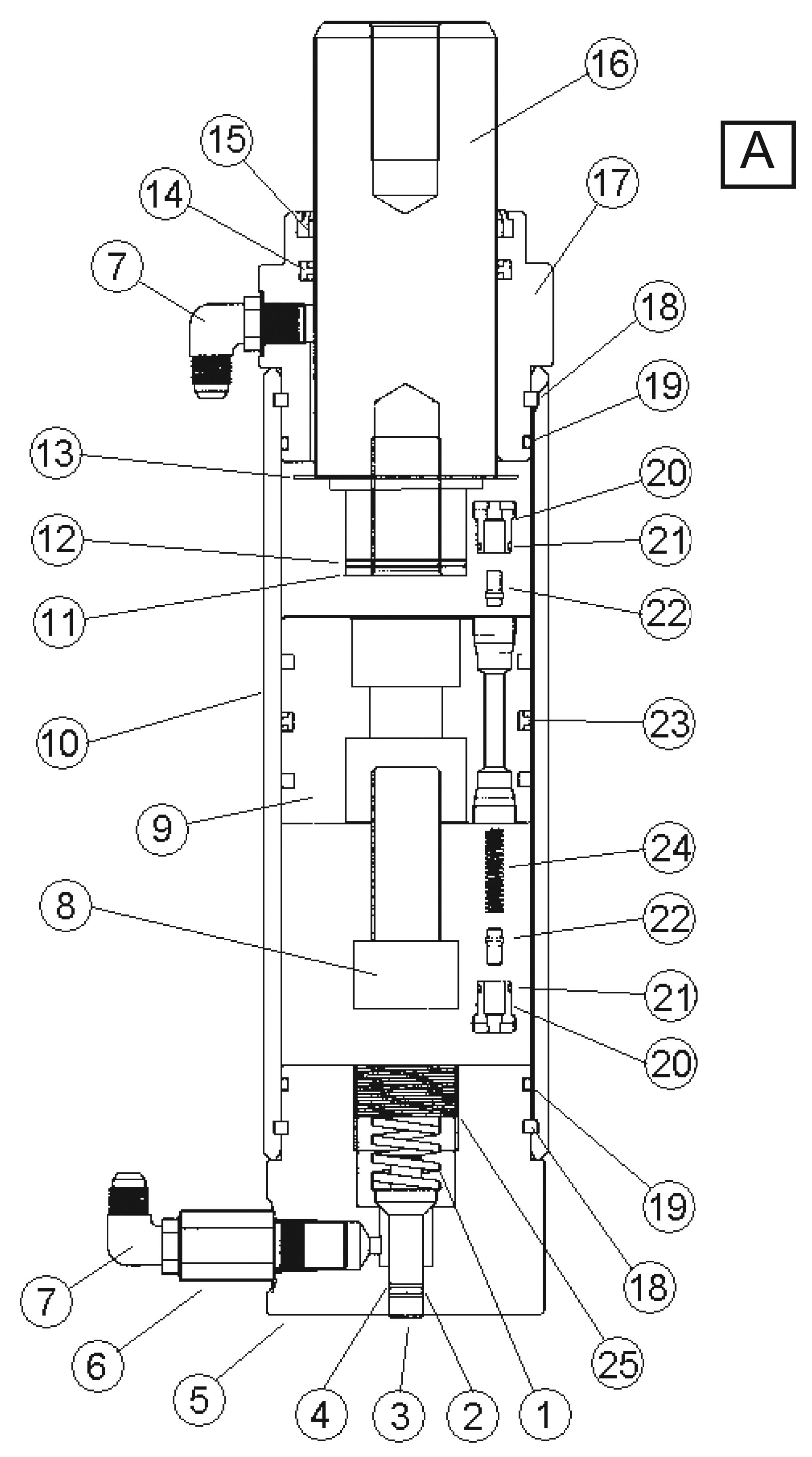

Parts for Mohawk LMF-12 Hydraulic Cylinder Power Unit Side

Above Ground / Surface Mount 2-Post Lifts – Mohawk – LMF-12

SVI is the #1 Source for repair parts for Mohawk Lifts. Whether you need cables, sheaves, slider blocks, power units, height extensions and pads, or another part for your 2-post Mohawk lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Mohawk Lift LMF12:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description

A
BH-7342-07
015-000-009
Power Unit Column Cylinder
View
1
BH-7340-69
600-840-002
Spring
View
2
OB-70-012
601-030-002
Inlet Spool O-Ring
3
BH-7340-68
009-010-113
Inlet Spool
View
4
AU-012
601-060-003
Inlet Spool Back-Up
5
BH-7340-67
007-007-110
End Cap/Gland
View
6
BH-7340-66
601-410-031
Velocity Fuse
View
7
BH-7006-06
601-420-017
90° Elbow
View
8
BH-7342-09
600-650-001
Socket Head Capscrew
View
9
BH-7342-10
012-012-102
Cylinder Piston
View
10
BH-7342-11
012-012-101
Cylinder Barrel
View
11
BH-7342-12
012-012-103
Cylinder Rod
View
12
OB-70-030
601-030-009
O-Ring
13
BH-7340-77
007-007-143
Washer
View
14
BH-7340-62
601-000-003
Rod T-Seal w/back-ups
View
15
BH-7340-79
601-020-003
Rod Wiper
View
16
BH-7342-12
012-012-103
Cylinder Rod
View
17
BH-7340-64
015-000-109
Gland
View
18
BH-7340-65
025-002-132
Gland Retainer
View
19
OB-90-237
601-030-003
O-Ring
20
BH-7340-71
009-001-153-2
Spool Retainer
View
21
OB-70-012
601-030-002
O-Ring
22
BH-7340-72
009-001-152-1
Spool
View
23
BH-7340-75
601-010-005
Piston T-Seal w/back-ups
View
24
BH-7342-13
600-840-009
Spring
View
25
BH-7340-70
007-007-145
Set Screw
View
--
BH-7340-89
007-007-007
Bottom Gland Assembly (includes items: 7, 6, 5, 4, 3, 2, 1, 25, and 19)
View
--
BH-7342-18
012-012-003
Cylinder Piston Assembly (includes items: 9, 20, 21, 22, 23, and 24,)
View
--
BH-7342-19
015-000-011
Cylinder Rod Gland Housing Assembly (7, 14, 15, 17, and 19)
View
--
BH-7340-50
012-012-198-1
Seal Kit
View
--
BH-7340-27
012-012-098-1
Seal Kit
View
