Parts for Globe Lifts FS-10BS

In Ground Single Post Lifts – Globe – FS-10BS

SVI is the #1 Source for repair parts for in-ground Globe Lifts. Whether you need hoist packing seal kits, rack bars, gears, equalizer assemblies and components, safety legs, safety lock parts, lifting saddles and adapters, pit cover plates, power unit, or another part for your in-ground Globe Lift, SVI has what you need. We offer excellent pricing, top-notch customer service and fast shipping with in-stock items that usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

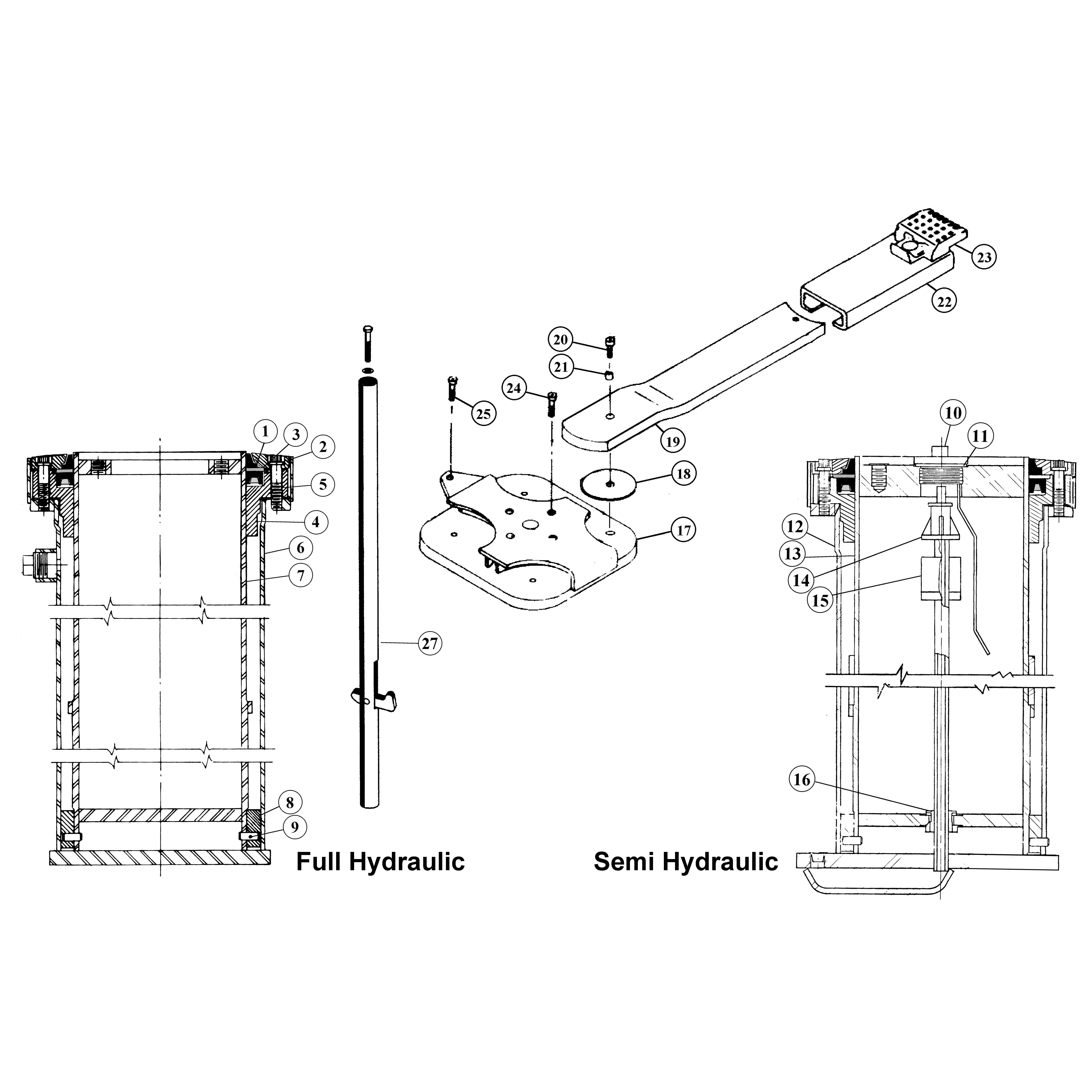

In Ground Single Post Lifts – Globe – FS-10BS

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
UW102
1
Lift Packing Kit

1
UW102
1
Spring Style Lift Packing Kit

2
B-35054
1
Wiper Seal Cover (Gland) 12 Bolt

3
B-35056
1
Holder Ring (Steel)

3
1
Holder Ring (for 2L Plungers)

4
B-35055
1
Upper Guide Bearing

4
B-35055
1
10-5/8" DUSL Style Upper Bearing Kit

5
438XG22
12
Capscrew

6
35573-006
1
Casing Assembly (Full Hyd.)

7
B-35570-12
1
Plunger Assembly (Full Hyd.)

8
BH-9420-08
B-41569
1
Lower Guide Bearing

9
359XM1250
1
Spring Pin

10
B-41538-1
1
Access Plug/Dipstick New 2"

11
204X3
1
Access Plug Gasket 2"

14
A-41085
1
Float Stop

15
A-39183
1
Float

16
A-43457
1
New Orifice Seals without tools

16
A-43457-G01
1
New Style Orifice Kit with tools

17
C-42876
1
Bolster Assembly

18
B-32101-2
4
Wear Washer

19
B-42936
4
Arm Assembly

20
426XG-N14
4
Locking Cap Screw

21
A-40689
4
Arm Bushing/Spacer

22
C-34354
4
Sleeve and Adapter Assy.

--
Rubber Pad Adapter

23
C-34355
4
Lifting Pad only

23
359XH0750
2
Stop Pin

24
F-SC-0875-9-2750
438XI22
4
Cap Screw

25
430XG20
1
Cap Screw

26
412XH-008
4
Arm Stop Pin for Sleeve black

26
Cap / Plug

26
4
Arm Stop Pin for Sleeve silver

27
C-43860
1
Non-Rotator

27
C-43860
1
Top Release Non-Rotator

--
Air/Oil Tank for Full Hydraulic Lift (Add "FG" for Fiberglass Coating)

--
N21812-G1
Air Vent / Bleeder

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
