Direct Lift Replacement Parts for OH8000

Above Ground / Surface Mount 2-Post Lifts – Direct Lift Replacement Parts – OH8000

Direct Fit™ brand Repair parts for Direct Lift Model OH8000 are available from SVI.

SVI is the go-to supplier for repair parts for Direct Lifts. Whether you need equalizer and lifting cables / chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Direct lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

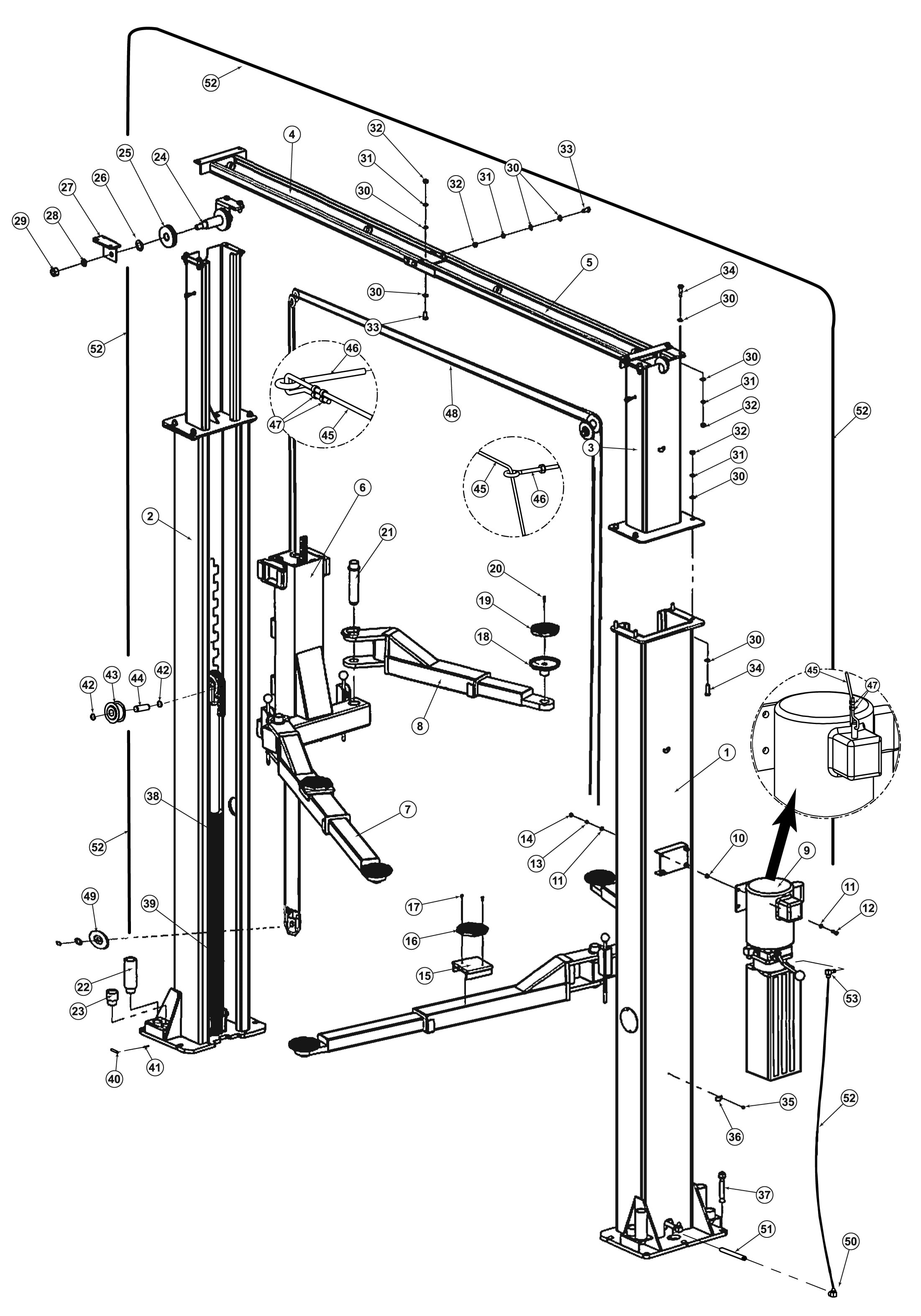

Also see these additional breakdowns for Direct Lift OH8000:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
30400-1000
1
Column A, Master Side

2
30400-1000A
1
Column B, Slave Side

3
30400-3000
2
Uprights

4
30400-4000B
1
Cross Beam B

5
30400-4000A
1
Cross Beam A

6
30400-5000
2
Carriage

7
30400-6000-X
2
Inner Arm

8
30400-7000-X
2
Outer Arm

9
P3548
1
Power Unit

10
Request Details
30400-1999
4
Washer

11
Request Details
B41-8
10
Ø8 Flat Washer

12
Request Details
B10-8x35
4
M8x35 Bolt

13
Request Details
B40-8
4
Ø8 Lock Washer

14
Request Details
B30-8
6
M8 Nut

15
30400-7013
2
Saddle

16
52200-3
2
Rubber Insert

17
B29-6x16
4
M6x16 Screw

18
30400-6005-2
4
Lifting Pad

19
PV-6003
4
Rubber Arm Pad

19
PV-6003x
Rubber Arm Pad (Set of 4)

20
Request Details
B20-6x20
4
M6x20 Bolt

21
30400-5005
4
Arm Pin

22
30400-6015A
4
Adapter A

23
30400-6014A
4
Adapter B

24
30400-3002
2
Cable Sheave Shaft

25
52007
4
3.62" Cable Sheave

26
Request Details
30400-1005C
6
Flat Washer

27
30400-3001
4
Top Bracket

28
Request Details
B40-20
6
Ø20 Lock Washer

29
Request Details
B30-20
4
M20 Nut

30
Request Details
B41-12
42
Ø12 Flat Washer

31
Request Details
B40-12
21
Ø12 Lock Washer

32
Request Details
B30-12
21
M12 Nut

33
Request Details
B10-12x25
5
M12x25 Bolt

34
Request Details
B10-12x40
16
M12x40 Bolt

35
Request Details
B23-6x8
10
M6x8 Screw

36
30500-9056
1
Hydraulic Hose Clip

37
B14-3/4"x140
10
Anchor Bolt 3/4"x 5-1/2"

38
YG01-9100G
2
Hydraulic Cylinder

39
BL644x121
2
Leaf Chain

40
30400-5023
4
Pin, Leaf Chain

41
Request Details
B52-2x20
4
Ø2x20 Cotter Pin

42
Request Details
B60-25
6
Ø25 Snap Ring

43
30400-9012-01
2
Cable Sheave Shaft

44
91773
2
Cable Sheave

45
B86-1.5x5500
1
Steel Wire

46
Request Details
B15-6x50
2
M6x50 Screw

47
Request Details
B87-1.5
4
Clip

48
30400-3101M-2
2
Cable

49
30400-1005B
2
4.75" Cable Sheave

50
30400-9052YZ
2
Fitting, Hydraulic

51
30400-9050YZG1
2
Fitting, Hydraulic

52
1WG-01
1
Hydraulic Hose, Short

53
30400-9051YZ
1
T Fitting

54
1WG-02
1
Hydraulic Hose, Long

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
