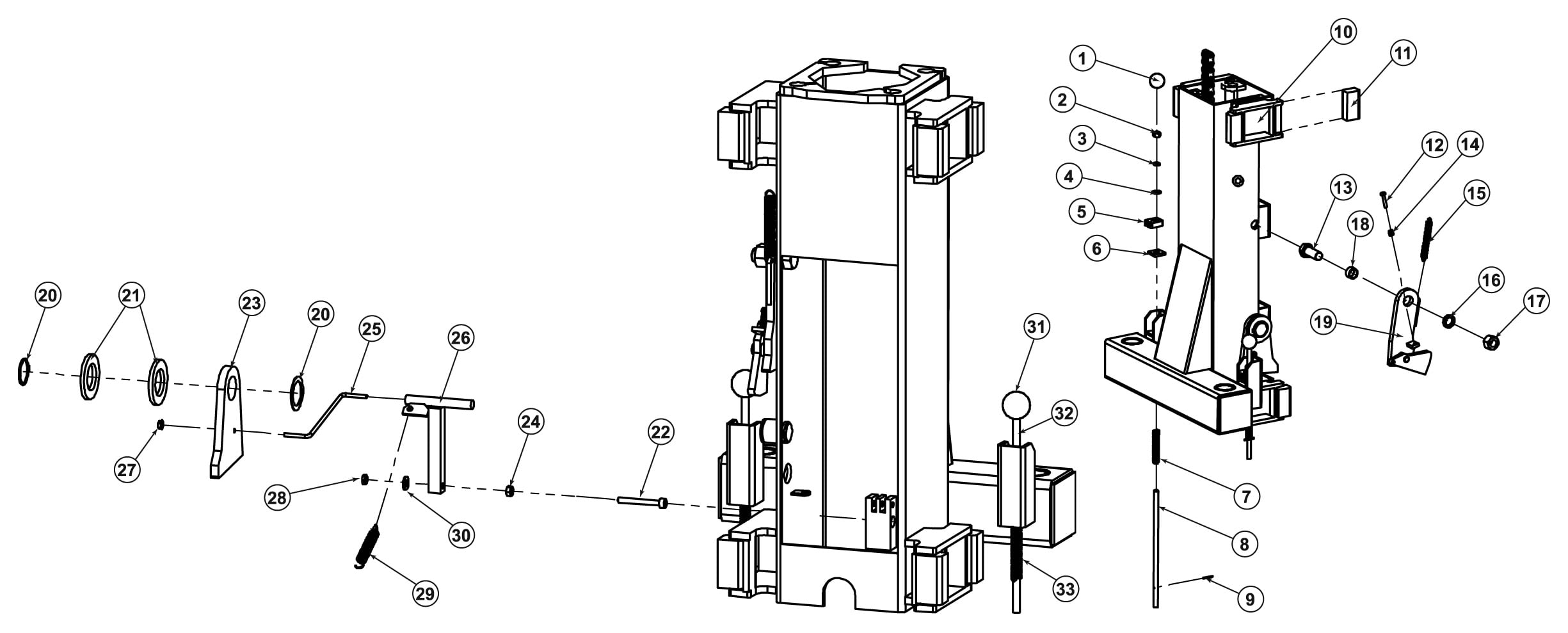

Parts for Direct Lift OH8000 Carriage Assembly

Above Ground / Surface Mount 2-Post Lifts – Direct Lift – OH8000

Direct Fit™ brand Repair parts for Direct Lift Model OH8000 are available from SVI.

SVI is the go-to supplier for repair parts for Direct Lifts. Whether you need equalizer and lifting cables / chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Direct lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Direct Lift OH8000:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
B84-35
4
Plastic Knob

2
B30-10
4
M10 Nut

3
Request Details
B40-10
4
Ø10 Lock Washer

4
Request Details
B41-10
4
Ø10 Flat Washer

5
30400-5014
4
Gear Rack

6
30400-5017
4
Spacer

7
30400-5012-1
4
Spring

8
30400-5015
4
Plunger

9
Request Details
B51-3x26
4
Ø3x26 Raw Pin

10
30400-5000
2
Carriage

11
30400-5024
16
Slider Block

12
Request Details
B28-6x35
2
M6x35 Screw

13
Request Details
B11-20x50
2
M20x50 Bolt

14
30400-5006-1
2
Spring

15
30400-5006-3
2
Spring

16
Request Details
B40-20
6
Ø20 Lock Washer

17
Request Details
B31-20
2
M20 Nut

18
30400-5011
2
Bushing

19
30400-5006
2
Safety Block Organ

20
Request Details
B60-35
2
Ø35 Snap Ring

21
Request Details
B41-36
4
Ø36 Flat Washer

22
Request Details
B20-8x60
2
M8x60 Bolt

23
30400-5028
2
Slack Chain Safety Latch

24
30400-5035
2
Partition Sheath

25
30100-5027
2
Slack Chain Safety Rod

26
30100-5029
2
Slack Chain Lever Weldment

27
991070
2
3/16" Cap Nut

28
Request Details
B33-8
2
M8 Nylon Insert Nut

29
30400-5032
2
Spring

30
B41-8
10
Ø8 Flat Washer

31
B84-35
4
Plastic Knob

32
30400-5015
4
Plunger

33
30400-5012-1
4
Spring

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
