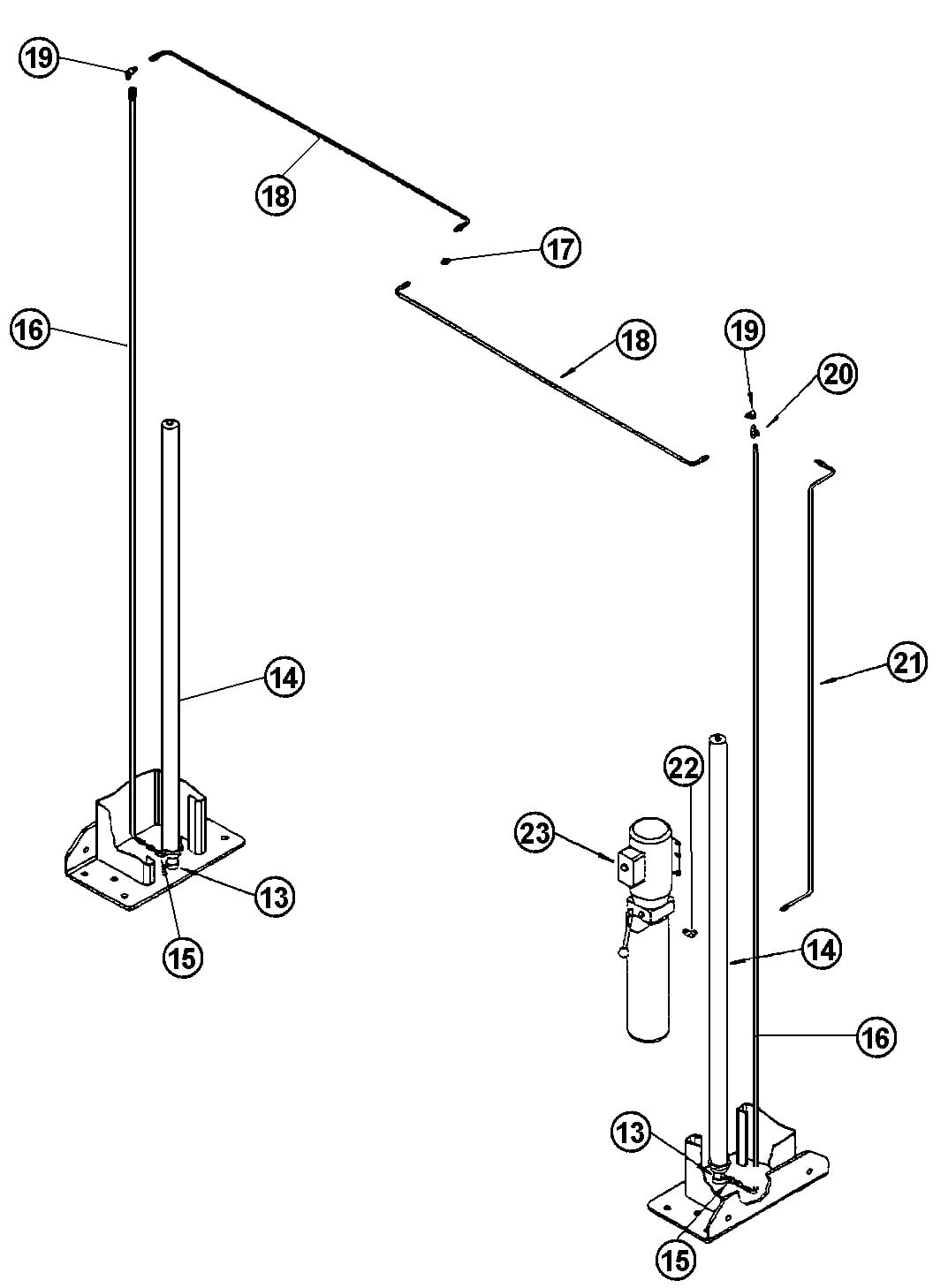

Parts for Challenger 37000 Hydraulic System

Above Ground / Surface Mount 2-Post Lifts – Challenger – 37000

SVI is the #1 Source for repair parts for Challenger Lifts. Whether you need cables, sheaves, slider blocks, power units, height extensions and pads, or another part for your 2-post Challenger lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Challenger Lifts 37000:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Req
Description

**
39100
Hydraulic Hose Kit

13
31061
2
Push Nut 1/4"

14*
36115
2
Hydraulic Cylinder

15
31116
2
Union O-Ring x Tube

16
36049
2
Hydraulic Line

16**
39100-266
Idler Cylinder Hose Assembly

16**
39100-130
Power Cylinder Hose Assembly

17
31047
1
Straight Union

18
36032
2
Hydraulic Line - Overhead

19
36051
2
9/16 Swivel Elbow

20
31032
1
Union Tee Parker

21
36033
1
Hydraulic Line (Barnes)

21
36128
1
Hydraulic Line (Fenner)

21**
39100-087
Power Unit Hose Assembly

22
31089
2
90° Elbow

23
1
2HP 1PH 3.5 Gal. Power Unit

23
1
2HP 3PH 3.5 Gal. Power Unit

* Call with serial number to order seal kit
