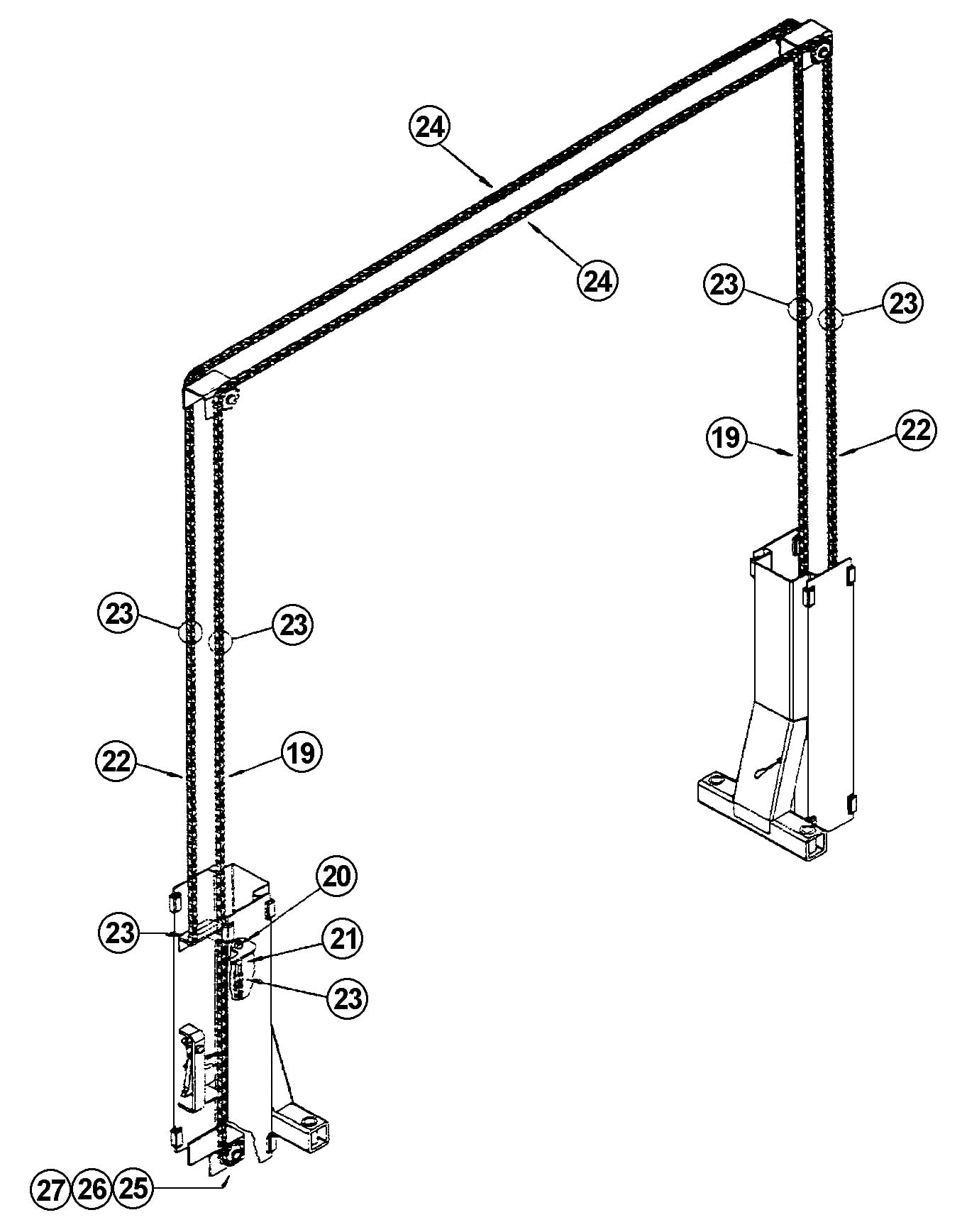

Parts for Challenger 27000 Synchronization System

Above Ground / Surface Mount 2-Post Lifts – Challenger – 27000

SVI is the #1 Source for repair parts for Challenger Lifts. Whether you need cables, sheaves, slider blocks, power units, height extensions and pads, or another part for your 2-post Challenger lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Challenger Lifts 27000:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
31063
1
Pivot Bracket

2
31128
1
Shut Off Bar

3
31129
1
Cushion 1/2 Shut Off Bar

4
31061
4
Push Nut 1/4"

5
31164
1
Limit Switch Bracket

6
31165
1
Capture Plate - Limit Switch

7
31166
1
Limit Switch Overhead Sq.

8
31060
1
Strain Relief

9
31167
1
Limit Switch Cord

10
31021
4
1-3/8 External Snap Ring

11
31020
4
1-3/8 Washer

12
26008
4
Eq. Chain Sprocket

13
27016
1
Overhead Channel Assembly

19
27024
2
Eq. Chain w/Connect Link 110 Pitches

20
26055
2
7/8-14 Adjustment Lug

21
26054
2
Adj. Stud for Eq. Chain

22
26046
2
Eq. Chain Lower 28 Pitches

23
11035
8
Master Link

24
27026
2
Eq. Chain Assy. 269 Pitches (144" Col.)

24
27124
2
Eq. Chain Assy. 261 Pitches (140" Col.)

25
31021
6
1-3/8 External Snap Ring

26
31020
6
1-3/8 Washer

27
26008
6
Eq. Chain Sprocket

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
