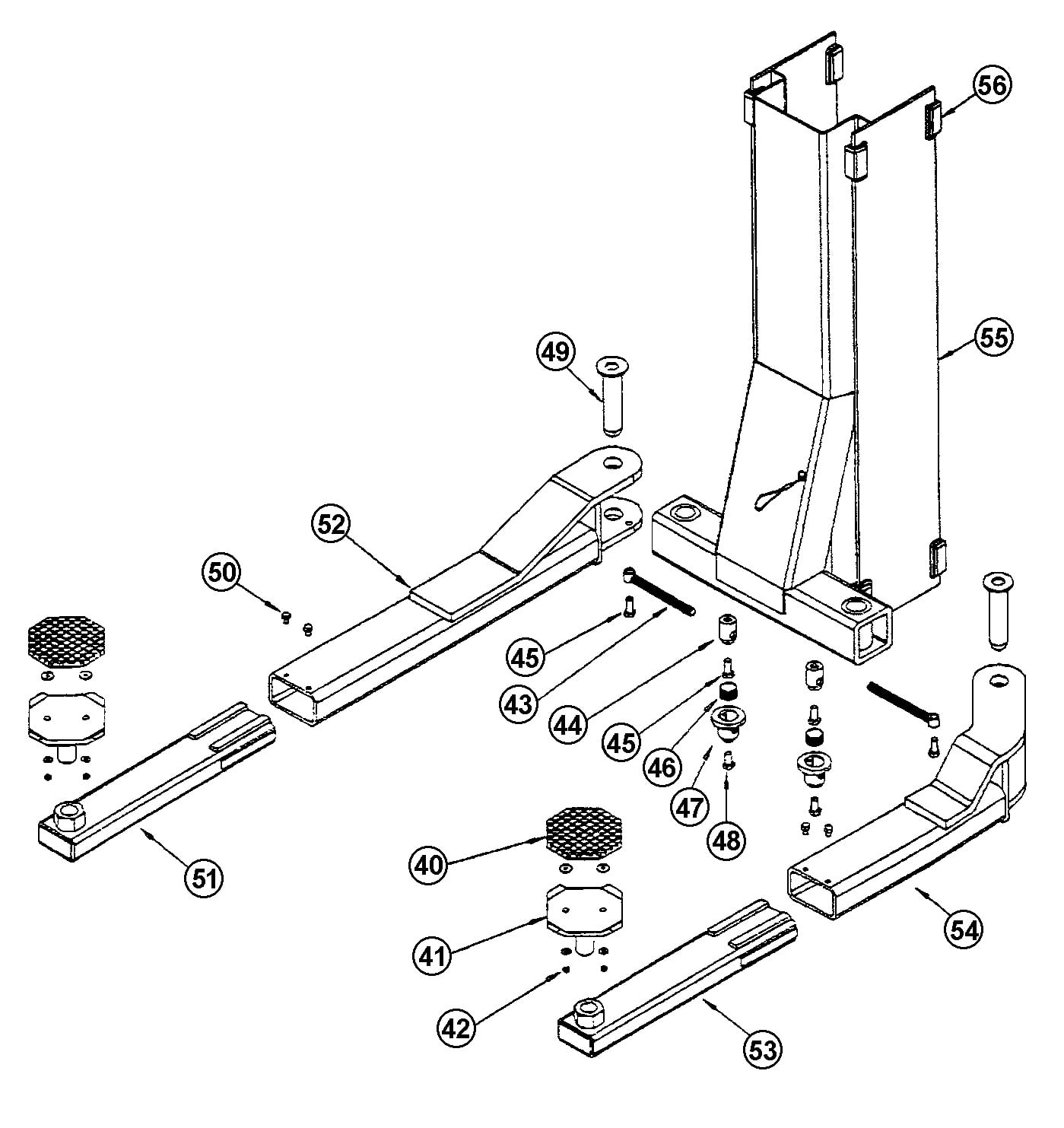

Parts for Challenger 27000 Carriage Arm Assembly

Above Ground / Surface Mount 2-Post Lifts – Challenger – 27000

SVI is the #1 Source for repair parts for Challenger Lifts. Whether you need cables, sheaves, slider blocks, power units, height extensions and pads, or another part for your 2-post Challenger lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Challenger Lifts 27000:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

40
31057
4
Rubber Arm Pad Hex

40
Rubber Arm Pad Hex Kit for 1 Lift

41
31133
4
Adapters with Rubber Pad

42
31601
8
Push Nut 1/4"

43
31110
4
Link Weldment

44
31108
4
Arm Restraint Insert

45
31112
8
Allen Bolt 1/2-13

46
31109
4
Spring

47
31107
4
Sleeve Weldment for BH-7226-25

47a
31052
4
Arm Restraint Kit w/Hardware

47b
1
Arm Restraint Kit - Complete Lift

48
31111
4
1/2-13 x 3/4 Hex Bolt

49
31134
4
Arm Pin - 1-1/2" x 6"

49
4
Arm Pin - Call w/size

49
4
Arm Pin - Call w/size

49
4
Arm Pin - Call w/size

50
31305
8
3/8-16 x 3/4 Ext. Stop Bolt

51
39018
2
Arm Inner Rear

52
39017
2
Female Arm Outer - Rear Assembly

53
39019
2
Arm Inner Front

54
39016
1
Female Arm Front Right Assembly

54
39015
1
Female Arm Front Left Assembly

55
27007
2
Carriage Weldment

56
31023
16
Slider UHMW w/Metal Insert

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
