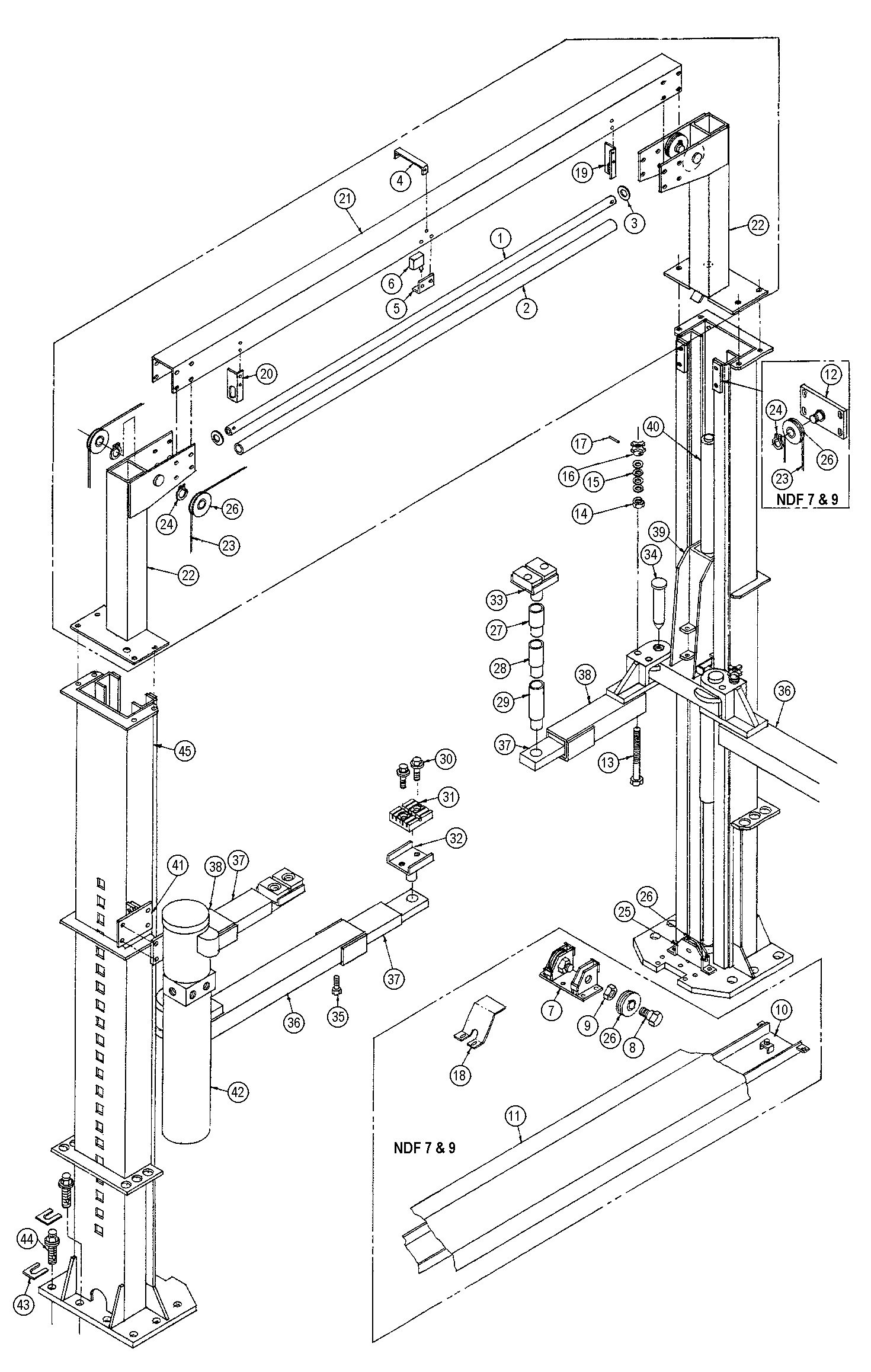

Parts for Ben Pearson NDO 9

Above Ground / Surface Mount 2-Post Lifts – Ben Pearson – NDO 9

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7110-41
82856
1
Pipe Bumper NDO
View
2
BH-7110-42
81863
1
Tubing Bumper NDO
View
3
BH-7113-67
100224
2
Flat Washer NDO
View
3
BH-7101-55
81483
2
Hex Screw
View
3
BH-7112-24
100159
2
Lock Washer
View
3
BH-7112-23
100102
2
Hex Nut
View
4
BH-7113-80
83805
1
Cable Support Strap NDO
View
5
BH-7111-13
81864
1
Switch Support Angle NDO
View
5
BH-7110-73
100234
4
HFHSL Screw
View
5
BH-7110-75
100237
4
HFHSL Nut
View
6
BH-7004-19
80282
1
Micro Switch NDO
View
6
BH-7113-69
81910
1
Micro Switch Cover
View
7
BH-7113-81
83728
2
Idler Support Struct. Bottom NDF
View
8
BH-7113-82
83804
4
Shoulder Screw NDF
View
9
BH-7113-83
81977
4
Nylock Nut NDF
View
9
BH-7112-36
100240
12
HFHSL Screw (Support)
View
10
BH-7101-44
83734
1
Trough Structure NDF
View
10
BH-7112-36
100240
4
HFHSL Screw (Trough to Base)
View
11
BH-7112-46
83800
1
Cover Structure Trough NDF
View
11
BH-7110-76
100239
2
HFHSL Nut (Cover to Trough)
View
12
BH-7113-84
83725
2
Idler Support Struct Top NDF
View
13
BH-7113-85
83712
4
Adjusting Screw
View
14
BH-7113-86
83711
4
Nut Wedge
View
15
BH-7112-29
100141
16
Flat Washer
View
16
BH-7113-87
83713
4
Hand Knob
View
17
BH-7113-88
100109
4
Roll Pin
View
18
BH-7113-89
83798
2
Shield, Bottom Idlers NDF
View
18
BH-7112-35
100342
4
HDHSL Screw (Shield Cover)
View
19
BH-7110-33
81861
1
Angle RH NDO
View
19
BH-7110-73
100234
4
HFHSL Screw
View
19
BH-7110-75
100237
4
HFHSL Nut
View
20
BH-7110-40
81860
1
Angle LH NDO
View
21
BH-7113-99
83688
1
Top Channel Cross Over NDO
View
21
BH-7110-74
100238
16
HFHSL Screw (Ext to Channel)
View
21
BH-7110-76
100239
16
HFHSL Nut
View
22
BH-7102-86
83681
2
Post Extension Struct. NDO
View
22
BH-7112-63
100304
8
HFHSL Screw (Ext to Post)
View
22
BH-7110-82
100039
8
HFHSL Nut
View
23
BH-7100-07
83689
2
Cable Assy NDO
View
23
BH-7100-08
83740
2
Cable Assy NDF
View
24
BH-7100-00C
80864
4
Retaning Ring NDO
View
24
BH-7100-00C
80864
2
Retaining Ring NDF
View
25
BH-7100-00A
82800
2
Idler Support Struct Bottom NDO
View
25
BH-7100-00B
81819
2
Idler Pin
View
25
BH-7100-00C
80864
4
Retaining Ring
View
25
BH-7112-36
100240
4
HFHSL Screw
View
26
BH-7100-00
81924
6
Cable Sheave (Nylon)
View
26
BH-7100-00S
81924
6
Cable Sheave (Steel)
View
27
BH-7101-02
81693
4
2-5/8” Height Adapter
View
28
BH-7101-04
81692
4
3-1/2” Height Adapter
View
29
BH-7101-03
81691
4
5” Height Adapter
View
30
F-HC-0312-18-0750
100313
2
HFHSL Screw
View
30
F-FW-0375-SAE
Flat Washer
View
31
BH-7101-00
82365
1
Rubber Arm Pad
View
31
BH-7101-00-4
Rubber Arm Pad Kit
View
32
BH-7101-01
82361
1
Steel Adapter
View
33
BH-7101-01C
82591
4
Adapter Base & Pad Assy. Consists of Item #’s 30-32
View
34
BH-7102-37
83715
4
Arm Pin
View
35
BH-7113-07
100010
4
Hex Screw
View
36
BH-7113-98
83704
2
Lift Arm Structure Long
View
37
BH-7113-97
83706
4
Arm Extension Structure
View
38
BH-7103-01
83699
2
Lift Arm Structure Short
View
39
BH-7113-96
83690
2
Carriage Assy
View
40
BH-7100-62
83542, 82803
2
Hydraulic Cylinder
View
40
BH-7100-98
80063
2
Cap Screw
View
40
BH-7113-95
80064
2
Hex Nylock Nut
View
41
BH-7113-93
83732
1
Power Unit Bracket Structure
View
41
BH-7112-20
100198
4
Hex Screw
View
41
BH-7112-24
100159
4
Lock Washer
View
41
BH-7112-23
100102
4
Hex Nut
View
41
BH-7110-74
100238
2
HFHSL Screw
View
41
BH-7110-76
100239
2
HFHSL Nut
View
42
BH-7006-01
1
Power Unit 1 PH, 2 HP
View
43
BH-7512-92
80589
1
Shim Kit 150 pcs, 3 sizes
View
44
BH-7075-03L
80062
16
3/4 x 5-1/2 Wedge Anchor
45
BH-7113-90
83779
2
Post Structure NDO 7 & NDF 7
View
45
BH-7113-91
83673
2
Post Structure NDO 9 & NDF 9
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
