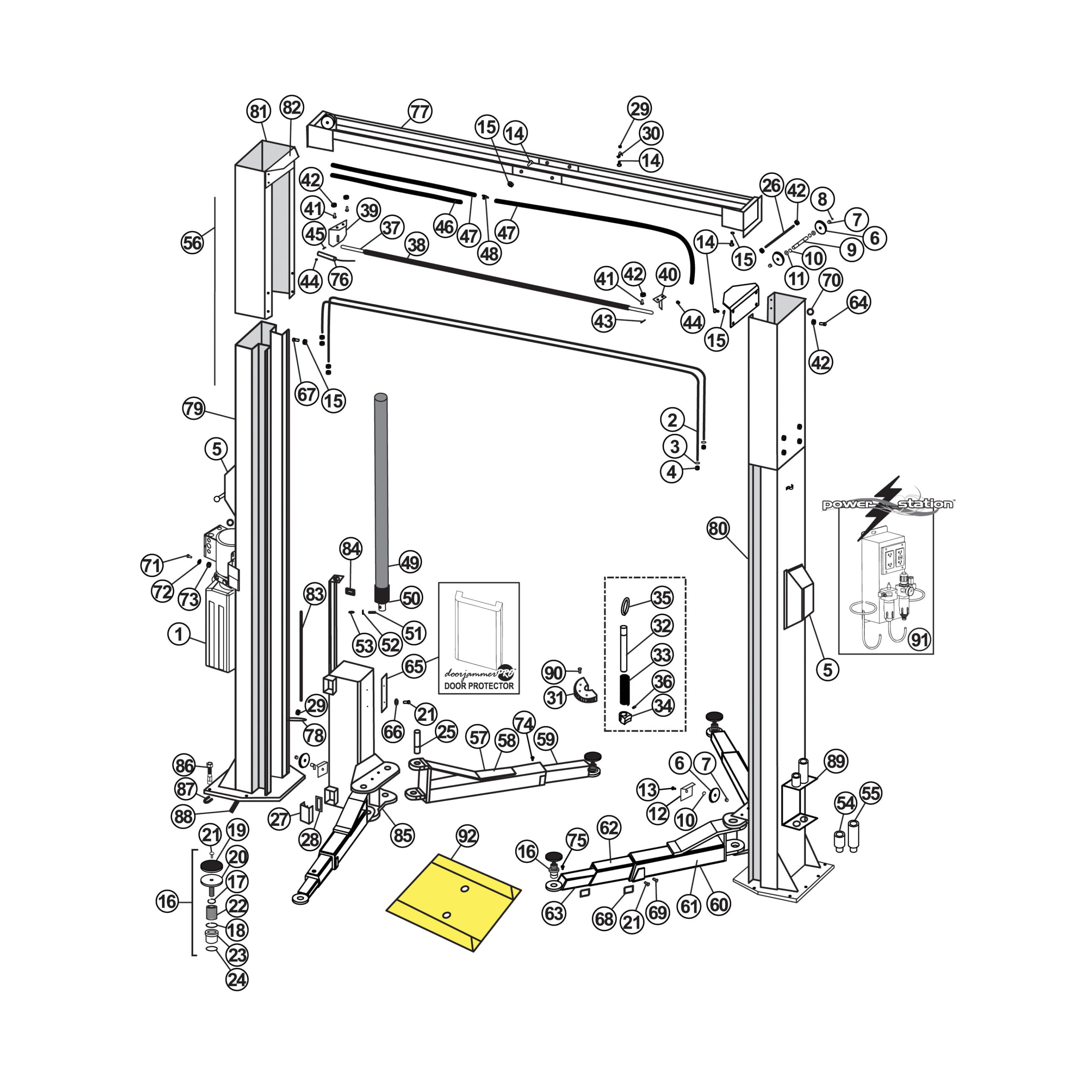

Parts for Atlas Lift Apex 10H

Above Ground / Surface Mount 2-Post Lifts – Atlas – Apex 10H

Repair parts for Atlas Lifts Model Apex10H are available from SVI.

SVI is the go-to supplier for repair parts for Atlas Lifts. Whether you need equalizer and lifting cables or chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units and parts, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Atlas lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Atlas Lift Model APEX-10H:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BZ-Y1-N
1
Hydraulic Power Unit

2
Z23A501100
2
Equalizer Cable 361" (9170mm) (Standard Version)

2
Z23A501100-H1
2
Equalizer Cable 409" (10390mm) (H Ext. Version)

3
0205017
4
Washer D14

4
0204006
4
Self-Locking Nut M14

5
Z23A504101
2
Lock Release Cover

6
Z23A110001T
6
Cable Sheave / Pulley

7
0210079
6
Cable Sheave Bushing

8
0215041
4
Greaser

9
Z23A410001
2
Pulley Shaft

10
0211014
10
Retaining Ring D15

11
0205023
7
Washer D24

12
Z23A110002
2
Cable Sheave Cover Plate

13
0206031
2
Screw M6X10

14
0201136
22
Screw M10X20

15
0204030
28
Flange Nut M10

16
Z23A313000AM
4
Adjustable Adapter and Pad Assembly

17
0212035
2
Retaining Ring 32

18
0212034
2
Retaining Ring 42

19
Z23A313202
4
Round Rubber Pad

20
Z23A313100AM
4
Pad Adapter Base Only

21
F-SC-M06-16
0202032
13
Screw M6X16

22
Z23A313001
2
Inner Thread Bushing

23
Z23A313002
2
Outer Thread Bushing

24
0309091
2
O-Ring

25
Z23A500102
4
Arm Shaft

26
Z23A410002
2
Anti-Derailment Safety Pin

27
Z23A200001
4
Slider Block

28
Z23A200002
4
Slider Shim

29
0203032
18
Nut M10

30
Z23A503100
8
Hose Clamp

31
Z23A310001
2
Arm Restraint Main Gear

32
Z23A200004
2
Safety Release Pin

33
Z23A200005
2
Arm Restraint Spring

34
Z23A200003
2
Arm Restraint Engage Gear

35
Z23A200006
2
Arm Restraint Release Ring

36
0213052
4
Roll Pin 6X40

37
Z23A400001AM
1
Overhead Stop Bar

38
Z23A400002
1
Overhead Stop Bar Cover / Cushion

39
2L-1-07
1
Overhead Stop Bar Support

40
SYJ30-17-02M1
2
Overhead Stop Bar T Bracket

41
0206040
6
Screw M6X12

42
0203004
12
Nut M6

43
0201033
1
Screw M8X40

44
0203008
4
Nut M8

45
0201020
1
Screw M8X55

46
WW3800
1
Hydraulic Hose 1/4 x 149-5/8" (3800mm) (Standard version)

46
WW4410
1
Hydraulic Hose 1/4 x 173-5/8" (4410mm) (H version)

47
ZZ5090
2
Hydraulic Hose 1/4 x 200-3/8" (5090mm) (Standard version)

47
ZZ5700
2
Hydraulic Hose 1/4 x 224-3/8" (5700mm) (H version)

48
0303021
2
T-Fitting 1/4

49
Z23AY20000
2
Hydraulic Cylinder

50
Z23AY20000x
Seal Kit for Hydraulic Cylinder

51
0307021
1
Parachute Valve 1/4

52
0313001
2
Washer 1/4

53
0303061
2
Straight Fitting 1/4

54
Z23A601200
4
Nesting Height Extension 80mm / 3"

55
Z23A601300
4
Nesting Height Extension 150mm / 6"

56
Z23A502100
1
Lock Release Cable 315" (8000mm) (Standard Version)

56
Z23A502100-H1
1
Lock Release Cable 362-3/16" (9200mm) (H Ext. Version)

57
Z23A310000AM
2
Long Arm Assembly

58
Z23A311000AM
2
Long Arm Frame

59
Z23A312000AM
2
Long Arm Extension

60
Z23A320000AM
2
Short Arm Assembly

61
Z23A321000AM
2
Short Arm Outer Frame

62
Z23A322000
2
Short Arm Middle Extension

63
Z23A323000AM
2
Short Arm Inner Extension

64
0201144
4
Screw M6X25

65
XSZ-8-802-2
2
Square Rubber Protection

65
DoorJammerPRO Door Protector 12" - Pair

66
0205006
8
Washer D6

67
0201137
22
Round Head Screw M10X20

68
Z23A324001
6
Arm Shim

69
0201060
3
Screw M10X16

70
Z23A502201
4
Safety Release Wire Guide

71
0201046
2
Screw M10X20

72
0208007
2
Lock Washer D10

73
F-FW-M10-11-20
0205011
2
Washer D10

74
0201022
1
Screw M8X12

75
0202020
2
Screw M5X8

76
SP-1430-14
1
Mercury Switch

77
Z23A400000AM
1
Overhead Beam Assembly

77
Z23A410000AM
1
Left Beam Assembly

77
Z23A411000AM
1
Left Beam

77
Z23A420000
1
Right Beam Assembly

78
Z23A503200
8
Pipe U Bolt

79
Z23A110000AM
1
Column Assembly - Power Side

79
Z23A110100AM
2
Column

80
Z23A120000AM
1
Column Assembly - Offside

81
Z23A130001
2
Column Extension 31-1/2" (800mm) (standard version)

81
Z23A130001-H1
2
Column Extension 55-1/2" (1410mm) (H version)

82
Z23A500101
2
Overhead Beam Support

83
Z23A510101AM
4
Long Rubber Protection

84
Z23A510102
2
Short Rubber Protection

85
Z23A200000
2
Carriage Assembly

85
Z23A210000
1
Carriage Weldment

86
Wedge Anchor Bolt

87
Z23A510201
20
Nylon Shim 1

87
1
Shim Assortment 150 Pieces; 3 Sizes

88
Z23A510202
20
Nylon Shim 2

89
Z23A601102
2
Pad Extension Holder Rack

90
0201050
6
Screw M10X35

91
1
Power Station Air/Electric Utility Box

92
1
Single Wheel Spotter Dish 10-3/4" x 15" Wide

93
Z23A611000
High / Low Flip-Up Adapter Accessory

*
FJ6258
Specialty Adapter Base and Pad KIT for GM Trucks 2" Pin

*
FJ6258x
Specialty Adapter Base and Pad for GM Trucks 2" Pin

*See Specialty Adapters—7" Wide GMT-Style Adapters for use with 2019, 2020, 2021, and newer Chevrolet 1500 Silverado and GMC Sierra Truck Models
