787

Hand Powered Pumps – Tokheim – 787

Add to
Quote
Add to
Order

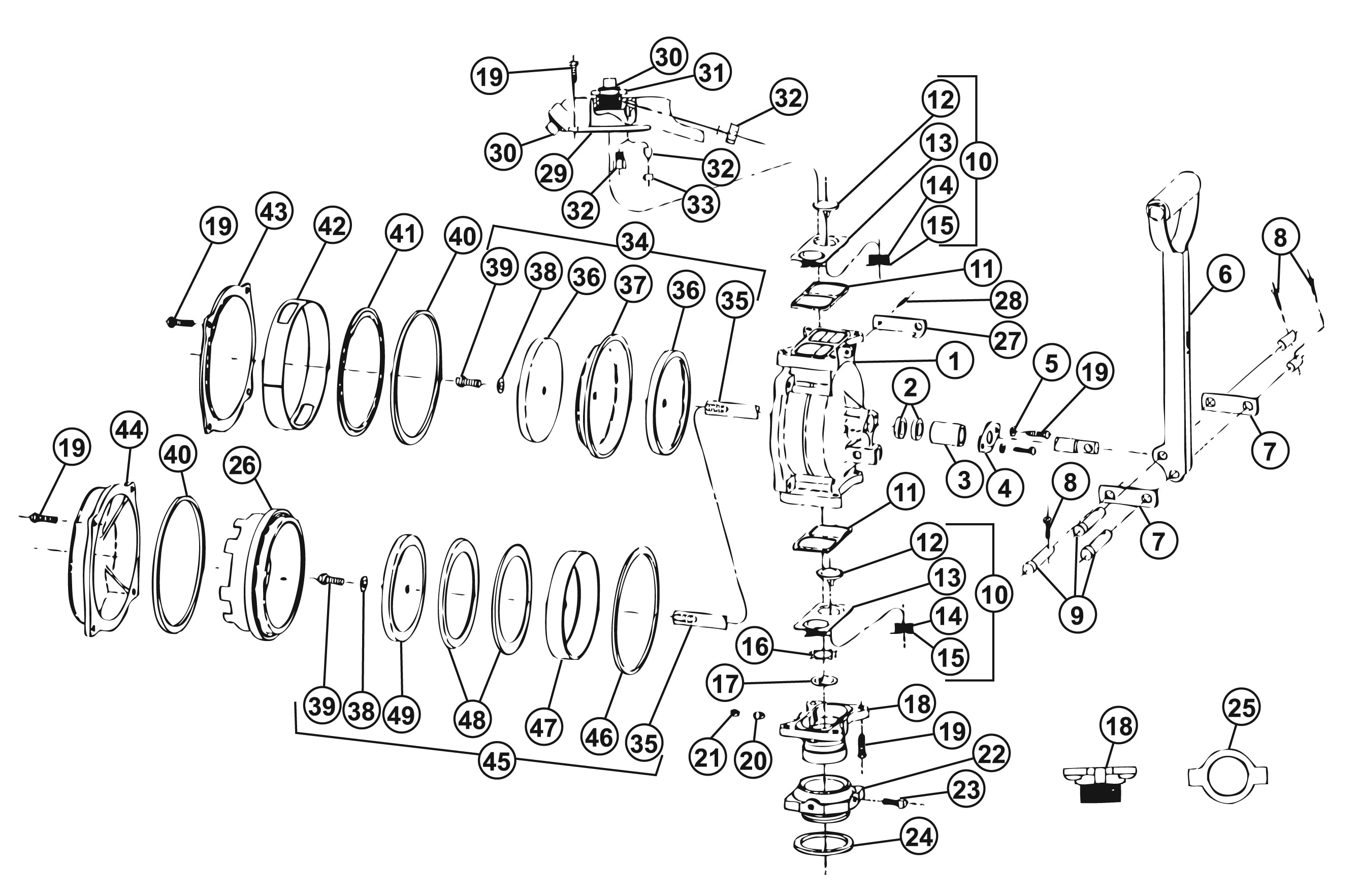

Item
SVI Part #
OEM #
Description

1
BP-4217-61
048911
Pump Body
View
2
BP-4217-23
048249
Packing
View
2
Request Details
040046
Packing, 1520T
3
BP-4217-22
048252
Bearing
View
4
BP-4217-51
048254
Bearing Plate
View
5
Request Details
068155
1/4 Lockwasher
6
BP-4217-59
029398
Handle and Grip Assembly
View
7
BP-4217-53
034916
Connecting Link
View
8
Request Details
042355
3/32 x 3/4 Lg. Cotter Pin
9
Request Details
043020
Pin 1-15/32" long
10
Request Details
048278
Valve Assembly
10
Request Details
066942
Valve Assembly, 1520T
11
BP-4217-27
048289
Valve Gasket
View
11
Request Details
054150
Small Valve Seal, 1520T
11
Request Details
054151
Large Valve Seal, 1520T
12
BP-4217-26
048288
Check Valve
View
12
Request Details
066941
Valve, 1520T
13
BP-4217-60
048247
Valve Plate
View
14
Request Details
048285
Valve Spring
15
BP-4217-24
048286
Spring Retainer
View
16
Request Details
048287
Push-On Ring
16
Request Details
049532
Push-On Ring, 1520T
17
BP-4217-52
048260
Suction Screen
View
17
Request Details
051616
Suction Screen, 1520T
18
BP-4215-22
026031
Inlet Fitting, 1" FNPT used w/bung adapter
View
18
BP-4217-63
048280
Inlet Fitting, 1" FNPT x 2" MNPT w/vent hole
View
18
Request Details
048491
Inlet Fitting, 1" FNPT x 2" MNPT w/o vent hole
19
BP-4217-65
048296
1/4-20 x 7/8 Lg. Hex Hd. Thread Forming Screw
View
20
Request Details
048253
Fire Screen
20
Request Details
051613
Fire Screen, 1520T
21
Request Details
048297
Push-On Ring
21
Request Details
049531
Push-On Ring, 1520T
22
BP-4214-53
026116
Bung Adapter Assembly
View
23
BP-4214-30
053245
1/4-20 x 3/4 Lg. Sq. Hd. Cup Pt. Set Screw
View
24
Request Details
027367
Gasket (Bung Adapter)
25
BP-4217-71
039163
Locking Ring
View
26
Request Details
003927
Piston Cylinder (piston pumps only)
27
BP-4217-55
020641
Clasp
View
28
Request Details
043261
3/16 Dia. x 1/2 Lg. Roll Pin
29*
Request Details
026032
Fitting, 1" Vertical Outlet
29*
Request Details
026056
Fitting, 1" Vertical Outlet, 1520T
29*
BP-4217-64
048267
Fitting, 3/4" Side Outlet
View
30
Request Details
047290
Pipe Plug, 3/4"
31
Request Details
017278
Bushing - Hexagon, 1520T
32
Request Details
048266
Vacuum Breaker (Production prior to 2/27/98)
32
BP-4211-23
066570
Vacuum Breaker (Production 2/27/98 or later)
View
32
Request Details
066527
Vacuum Breaker, 1520T
33
Request Details
048264
Retainer (except 1520T)
34
Request Details
048273
Diaphragm Assembly
35
BP-4217-57
048270
Shaft
View
35
Request Details
055895
Shaft (piston pumps only)
36
BP-4217-56
048271
Diaphragm Retainer
View
37
BP-4217-25
048272
Diaphragm
View
38
Request Details
068044
3/8 Lockwasher
38
Request Details
068936
3/8 Lockwasher
39
BP-4217-42
051981
3/8-24 x 3/4 Lg. Self-Locking Screw
View
39
Request Details
051977
3/8-24 x 7/8 Lg. Self-Locking Screw, 1520T
40
BP-4217-28
048243
Ring, Square Cut
View
40
Request Details
054086
Cover Seal, 1520T
41
BP-4217-29
048244
Diaphragm Washer
View
42
BP-4217-70
048246
Diaphragm Ring
View
43
BP-4217-62
048245
Cover
View
44
Request Details
003506
Piston Cover
44
Request Details
023060
Piston Cover, 1520T
45
Request Details
045701
Piston Assembly
45
Request Details
045702
Piston Assembly, 1520T
46
BP-4217-41
027368
Ring - Square Cut
View
46
Request Details
054092
Seal Ring Assembly, 1520T
47
Request Details
045662
Piston Retainer
47
Request Details
045660
Piston Retainer, 1520T
48
BP-4217-44
045705
Piston Cup (piston pumps only)
View
49
Request Details
045663
Piston Retainer
49
Request Details
045661
Piston Retainer, 1520T

*Outlet fittings also require items 32 and 33 to prevent leakage
