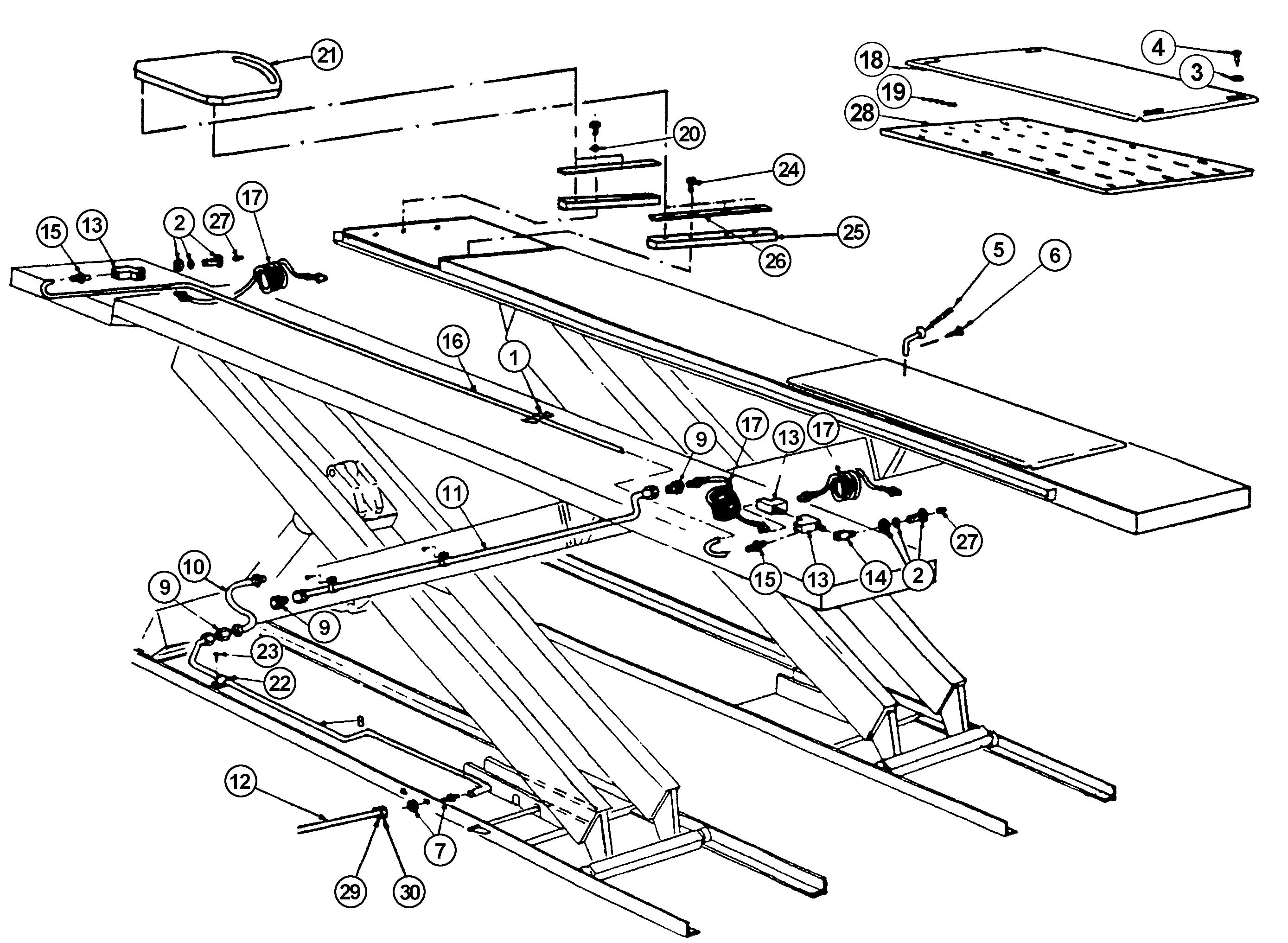

Parts for Wheeltronic Space Saver 9000 Options

Above Ground / Surface Mount Scissor Lifts – Wheeltronic – Space Saver 9000

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7801-73
6-0500
5
Frame Clip
View
2
BH-7801-06
6-0167
2
Terminal Bolt, 3/4"-16m w/ 1/4" NPT F
View
3
Request Details
6-0426
8
Flat Washer
4
Request Details
6-0069
8
Shoulder Bolt, 3/8" x 5/8"
5
BH-7794-37
2-0637
4
Locking Pin Assembly
View
6
Request Details
6-0505
4
Self-Tap Screw, #10 x 1/2"
7
BH-7800-61
6-0013
1
Bulkhead, Conn. 3/8" JIC C/W Jam Nut
View
8
BH-7796-20
3-0017
1
Tube Assembly
View
9
BH-7800-84
6-0118
3
Adapter, 3/8" JIC M to 1/4" NPT F
View
10
BH-7791-37
1-0119
1
Hose Assembly
View
11
BH-7793-60
2-0062
1
Tube Assembly
View
12
BH-7801-08
6-0171
1
Supply Tube, 3/8" x .049" x 20"
View
13
BH-7800-62
6-0014
3
Street Tee, 1/4" NPT
View
14
BH-7800-63
6-0015
1
Street Elbow, 1/4" NPT
View
15
BH-7802-32
6-0710
2
Poly Tube Straight Adpt., 3/8" x 1/4" NPT
View
16
BH-7791-38
1-0120
1
Hose, 144" W/B
View
16
BH-7791-41
1-0139
1
Hose, 172" W/B
View
17
BH-7798-06
6-0337
3
12' Coiled Hose
View
18
BH-7796-49
3-0197
2
Rear Slip Plate
View
19
BH-7790-35
6-0829
1 set
Ball Bearings (225)
View
20
F-LW-0250
6-0056
12
Lock Washer, 1/4"
View
21
Request Details
4-0220
2
Turnplate
22
BH-7798-50
6-0170
4
Tube Clamp
View
23
BH-7806-10
6-0169
4
Self Tap Screw, #10 x 3/8"
View
24
F-HC-0250-20-1250
6-0027
12
Hex Hd. Bolt, 1/4"-20 x 1-1/4"
View
25
BH-7794-36
2-0636
4
Space Bar
View
26
BH-7794-35
2-0635
4
Retaining Bar
View
27
BH-7801-31
6-0282
2
Plug, 1/4" NPT
View
28
BH-7790-34
3-0196
2
Rear Bearing Cage
View
29
BH-7800-64
6-0017
2
Tubing Sleeve, JIC
View
30
Request Details
6-0016
2
Tubing Nut, 3/8" JIC
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
