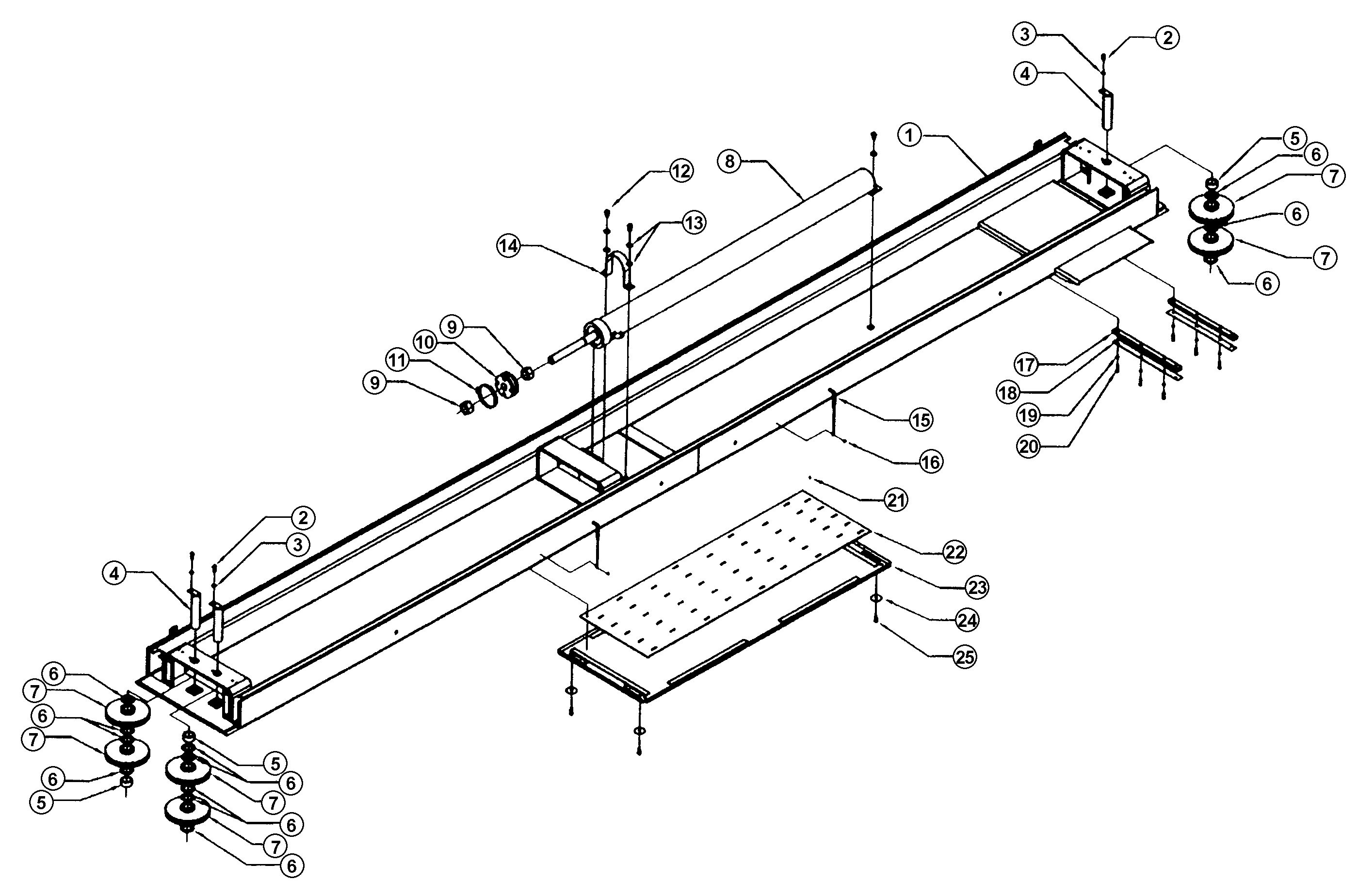

Parts for Wheeltronic 18405AF Kodiak Deck Assembly Left

Above Ground / Surface Mount 4-Post Lifts – Wheeltronic – 18405AF

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7800-17
4-0629
1
L.H. Deck Weldment
View
2
F-HC-0375-16-1000
6-0668
3
Hex Hd. Bolt, 3/8"-16 x 1"
View
3
F-LW-0375
6-0058
3
Lock Washer, 3/8"
View
4
BH-7795-65
2-1355
3
Deck Sheave Pin
View
5
BH-7793-27
1-1697
3
Sheave Spacer, 1"
View
6
BH-7792-15
1-0757
12
Nylon Thrust Washer
View
7
BH-7795-72
2-1377
6
Sheave Assembly
View
8
BH-7797-55
3-0681
1
Cylinder Assembly, - 4" Bore
View
9
F-HN-1375-12
6-1644
2
Hex Nut, 1-3/8"-12
10
BH-7795-81
2-1432
1
Cable Flange (18K 4 Post)
View
11
BH-7801-96
6-0665
1
Hose Clamp, 4-1/2"
View
12
Request Details
6-0044
3
Hex Hd. Bolt, 1/2" x 3/4"
13
F-FW-0500-SAE
6-0248
5
Flat Washer, 1/2"
View
14
BH-7793-31
1-1747
1
Cylinder Sling
View
15
BH-7794-37
2-0637
2
Locking Pin Assembly
View
16
Request Details
6-0505
2
Self-Tap. Screw, #10 x 1/2"
17
BH-7794-36
2-0636
2
Spacer Bar
View
18
BH-7794-35
2-0635
2
Retaining Bar
View
19
F-LW-0500
6-0056
6
Lock Washer, 1/2"
View
20
Request Details
6-0027
6
Hex Hd. Bolt, 1/4" x 1-1/4"
21
BH-7790-35
6-0829
1
1/4" Ball Bearing (1 Packet)
View
22
BH-7790-34
3-0196
1
Bearing Cage
View
23
BH-7796-49
3-0197
1
Rear Slip Plate (Full Floating)
View
24
Request Details
6-0426
4
Flat Washer, 2" x 13/32"
25
Request Details
6-0069
4
Shoulder Bolt, 3/8" x 5/8"
