Parts for Tuxedo Lift TP15KF

Above Ground / Surface Mount 2-Post Lifts – Tuxedo – TP15KF

Direct Fit™ brand Repair parts for Tuxedo Lift Model TP15KF are available from SVI.

SVI is the go-to supplier for repair parts for Tuxedo Lifts. Whether you need equalizer and lifting cables / chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Tuxedo lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Tuxedo Lift TP12KF:

Add to
Quote
Add to
Order

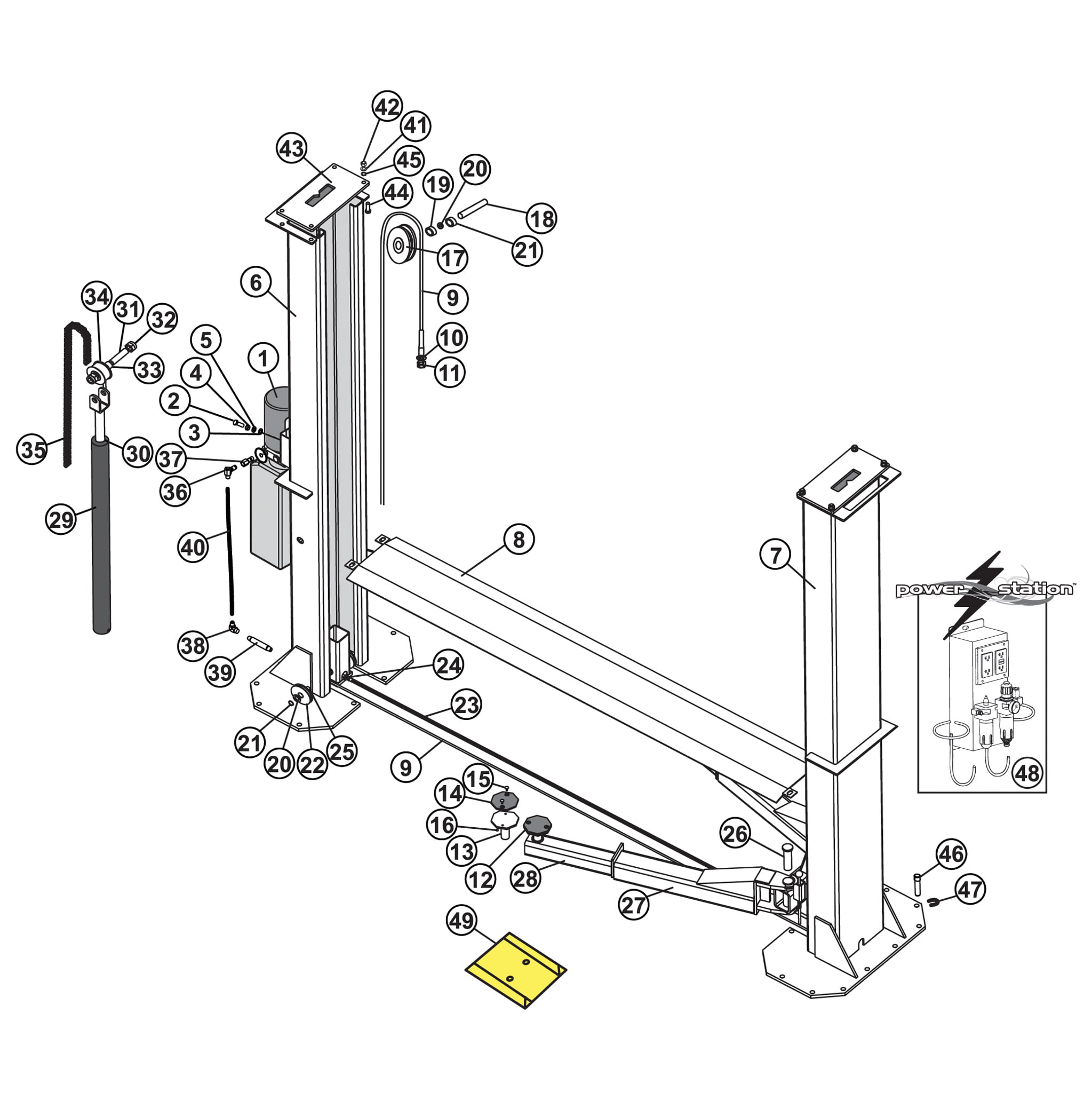

Item
SVI Part #
OEM #
QTY
Description

1
TP15KF-045
1
Power Unit

2
TP15KF-046
4
Bolt

3
TP15KF-049
4
Nut

4
TP15KF-048
4
Elastic Washer

5
TP15KF-047
4
Bushing

6
TP15KF-002
1
Main Side Column

7
TP15KF-001
1
Offside Column

8
TP15KF-066
1
Protective Floor Plate

9
TP15KF-050
2
Cable Assembly

10
TP15KF-042
8
Bushing

11
TP15KF-067
8
Nylock Hex Nut

12
TP15KF-020x
4
Lift Adapter and Pad Assembly

13
TP15KF-020
4
Adapter Base Only

14
TP15KF-021
4
Rubber Arm Pad

15
TP15KF-022
8
Elevator Bolt

16
TP15KF-023
8
Hex Nut

17
TP15KF-007
2
Sheave

18
TP15KF-003
6
Sheave Pin

19
TP15KF-008
2
Oilless Bushing

20
TP15KF-010
6
Shaft Washer

21
TP15KF-009
6
Bushing

22
TP15KF-004
4
Sheave

23
TP15KF-054
1
Hydraulic Hose

24
TP15KF-053
2
Hydraulic Fitting

25
TP15KF-005
4
Oilless Bushing

26
TP15KF-019
4
Swing Arm Pin

27
TP15KF-015
4
Outer Swing Arm

28
TP15KF-016
4
Inner Arm

29
TP12/15KX-8016
2
Hydraulic Cylinder

30
TP12KF-X-051x
2
Hydraulic Cylinder Seal Kit

31
TP15KF-064
2
Chain Roller Pin

32
TP15KF-065
4
Nylock Hex Nut

33
TP15KF-063
2
Oilless Bushing

34
TP15KF-062
2
Chain Roller

35
TP15KF-055
2
Chain (See SVI Chain Book)

36
TP15KF-051
1
Hydraulic Fitting

37
TP15KF-052
1
Hydraulic Pump Fitting

38
TP15KF-060
1
Elbow Fitting

39
TP15KF-059
1
Pipe Fitting

40
TP15KF-061
1
Hydraulic Hose

41
TP15KF-013
8
Elastic Washer

42
TP15KF-014
8
Nut

43
TP15KF-006
2
Top Column Cover

44
TP15KF-011
8
Bolt

45
TP15KF-012
8
Flat Washer

46
TP15KF-068
16
Wedge Anchor Bolt (3/4" x 5-1/2")

47
Shim Assortment 150 Pieces (3 Sizes)

48
1
Power Station Air / Electric Utility Box

49
1
Single Wheel Spotter Dish 10-3/4” x 15” Wide

49
1
Dual Wheel Spotter Dish 20-1/8” x 15” Wide

--
NOT SHOWN:

--
TP15KF-017
4
Cover Board

--
TP15KF-025
8
Board for Isolation

--
TP15KF-026
2
Ring

--
TP15KF-027
4
Shaft Bushing

--
TP15KF-057
2
Throttle

--
TP15KF-058
2
Spring

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
