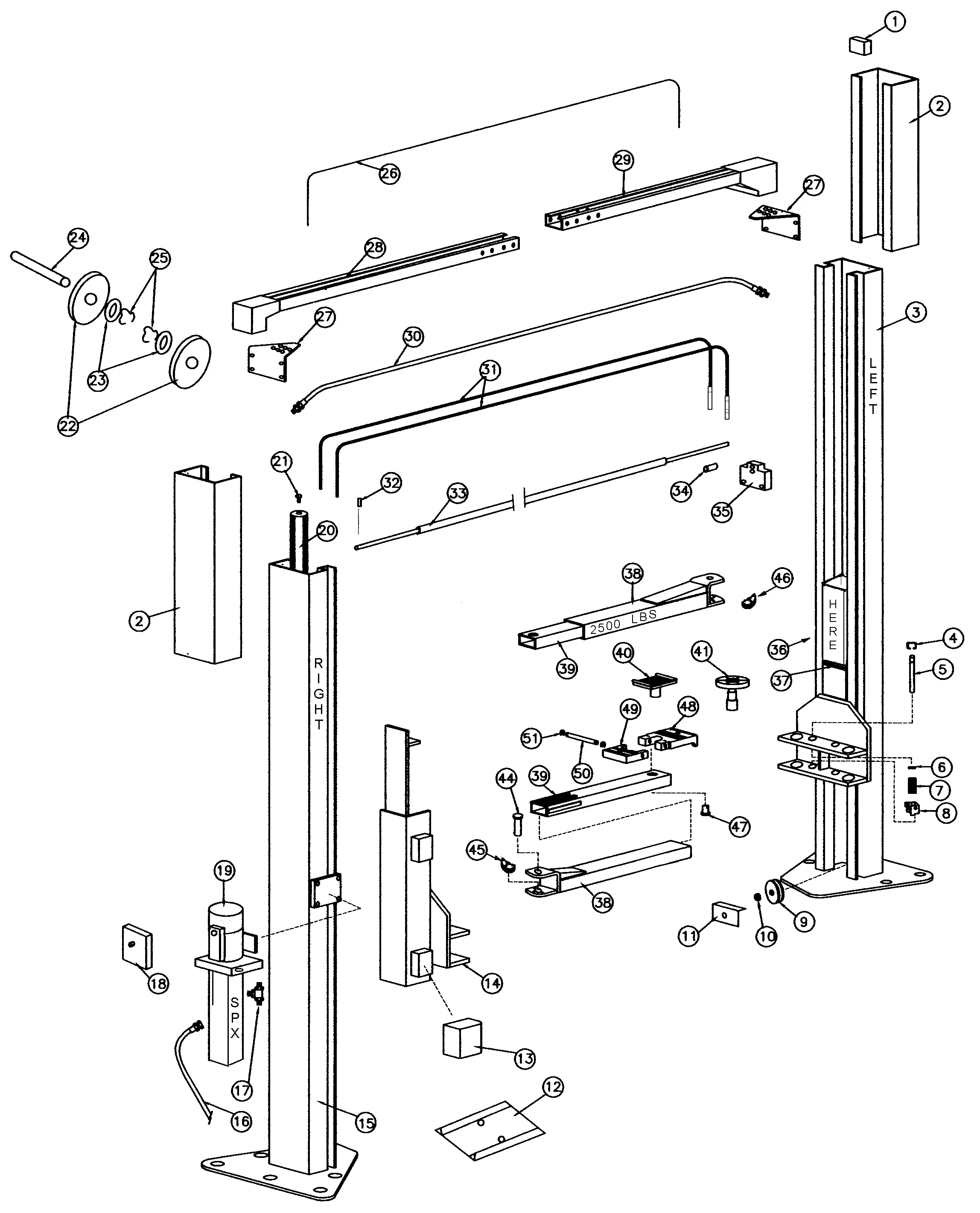

Parts for Rotary SPO10

Above Ground / Surface Mount 2-Post Lifts – Rotary Lift – SPO10

Repair parts for Rotary Lifts Models SPO10, SPO10 EH1, SPO10 EH2, and SPO10 EH4, are available from SVI.

SVI is the #1 Source for repair parts for Rotary Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your 2-post Rotary lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Rotary Lift SPO10:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
N619
2
Cable Bracket

2*
N470
2
Column Extension

3*
N752
1
Left Column

4
FJ7985-1
4
Arm Restraint Release Loop

5
N121-1
4
Arm Restraint Pin

6
N119-3
4
C-Clip Truarc 5103-93

7
FJ7656-2
4
Arm Restraint Spring

8
N2121
4
Arm Restraint Engage Gear

9
SVI Exclusive
6
Sheave, Steel

10
41411
Ext. Retaining Ring 5304-75

11
FJ7382-16
2
Debris Shield / Sheave Cover

12
SVI Exclusive
1
15" Wide Reach Wheel Spotter

12
SVI Exclusive
1
15" Wide Reach Dual Spotter

13
FJ7360
8
Slider Block (cup style)

13
FJ5106
2
Shim and Slider Kit (1 carriage)

13
FJ5106x
Slider Block only

13
FJ5106xx
Shim only

14*
N822
2
Carriage

15*
N755
1
Right Column

16
FJ837
1
Power Unit Hose

17
FJ7668
1
Tee

18
FA7147-1
1
Capacitor Housing (not for SPX)

19
P1302
1
Power Unit 1Ø

20
N342
2
Hydraulic Cylinder 68" stroke

20
N343
2
Hydraulic Cylinder 71" stroke

20A
Available—Call SVI
Hydraulic Cylinder Seal Kit (varies)

21
with cylinder
2
Bleeder Screw

22
SVI Exclusive
6
Sheave, Steel

22
N377
6
Sheave, Nylon

23
41388
4
Spacer 1-1/2" x .045 thick

24
FJ7444-8
2
Sheave Shaft

25
41411
Ext. Retaining Ring 5304-75

26
FJ7595-1
1
Lock Latch Release Cable

27
N439
2
Mounting Bracket

28-29
N444BL
1
L/R OH Assembly for 10" Col. (blue)

28-29
N448BL
1
L/R OH Assembly for 12" Col. (blue)

28-29
N444RD
1
L/R OH Assembly for 10" Col. (red)

28-29
N448RD
1
L/R OH Assembly for 12" Col. (red)

30
FJ839
1
Overhead Hydraulic Hose

30
FJ842
1
Overhead Hydraulic Hose (EH-1)

30
FJ843
1
Overhead Hydraulic Hose (EH-2)

30
FJ845
1
Overhead Hydraulic Hose (EH-4)

31
N374
2
Equalizer Cable

31
N379
2
Equalizer Cable (EH-1)

31
N375
2
Equalizer Cable (EH-2)

31
N376
2
Equalizer Cable (EH-4)

32
FJ7871
1
Spacer

33
N467
1
Overhead Limit Bar

34
FJ6179
1
Limit Bar Adapter

35
N413
1
Overhead Limit Switch Assy 1Ø

35
N413-1
1
Overhead Limit Switch only 1Ø

36-37
SVI Exclusive
1
doorjammerPRO pair (24")

36-37
SVI Exclusive
1
doorjammerPRO pair (12")

38*
N2174-1
4
Outer Swing Arm

39*
N2180-1
4
Inner Swing Arm

39*
N2174-2
4
Inner Swing Arm Kit

40
FJ6182
4
Rubber Pad Adapter Base

40
FJ6158-4
4
Rubber Pad only

41
FJ6185
4
Spin-up Adapter w/Pad

44
N2154
4
Arm Swivel Pin

45
N2122
4
Arm Restraint Gear (not adjustable)

45
SVI Exclusive
4
Arm Restraint Gear (adjustable)

47
FJ79-6
4
Adapter Swivel Pin

48
FJ6177
4
High Step Ductile Iron Adapter

48
FJ697
4
Rubber Pad Adapter for Flip-Up

49
FJ6178
4
Low Step Ductile Iron Adapter

50
FJ6179
4
Adapter Pivot Pin

51
FJ671-6
8
Hog Ring Clip

KIT
FJ671-7YL
Adapter Repair Kit - For 4 Arms

KIT
FJ671-8YL
Adapter Repair Kit - For 1 Arms

KIT
N2148
Arm Restraint Kit

KIT
Cable & Nylon Sheave Revamp Kit SPO10

KIT
Cable & Steel Sheave Revamp Kit SPO10

KIT
Cable & Nylon Sheave Revamp Kit SPO10 EH1

KIT
Cable & Steel Sheave Revamp Kit SPO10 EH1

KIT
Cable & Nylon Sheave Revamp Kit SPO10 EH2

KIT
Cable & Steel Sheave Revamp Kit SPO10 EH2

KIT
Cable & Nylon Sheave Revamp Kit SPO10 EH4

KIT
Cable & Steel Sheave Revamp Kit SPO10 EH4

KIT
FA5112
Full Size Steel Shim Kit

--
FA5112-2
Full Size Steel Shim 1/16" Thick

--
FA5112-1
Full Size Steel Shim 1/4" Thick

--
PowerStation Air / Electric Utility Box

* Custom order by request. Sample may be needed.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
BH-7500-963N

Equalizer and Locking Cable and Sheave Revamp Kit for SPO10

View Part
Request a quoteAdd to order
BH-7500-963S

Equalizer and Locking Cable and Steel Sheave Revamp Kit for SPO10

View Part
Request a quoteAdd to order
BH-7500-964N

Equalizer and Locking Cable and Sheave Revamp Kit for SPO10 EH1

View Part
Request a quoteAdd to order
BH-7500-964S

Equalizer and Locking Cable and Steel Sheave Revamp Kit for SPO10 EH1

View Part
Request a quoteAdd to order
BH-7500-965N

Equalizer and Locking Cable and Sheave Revamp Kit for Rotary SPO10 EH2

View Part
Request a quoteAdd to order
BH-7500-965S

Equalizer and Locking Cable and Steel Sheave Revamp Kit for SPO10 EH2

View Part
Request a quoteAdd to order
BH-7500-966N

Equalizer and Locking Cable and Sheave Revamp Kit for SPO10 EH4

View Part
Request a quoteAdd to order
BH-7500-966S

Equalizer and Locking Cable and Sheave Revamp Kit for Rotary SPO10 EH4

View Part
Request a quoteAdd to order
BH-7515-36

Full Size Steel Shim Kit

View Part
Request a quoteAdd to order
BH-7508-42

Arm Restraint Kit SPO10 and SPOA10

View Part
Request a quoteAdd to order
