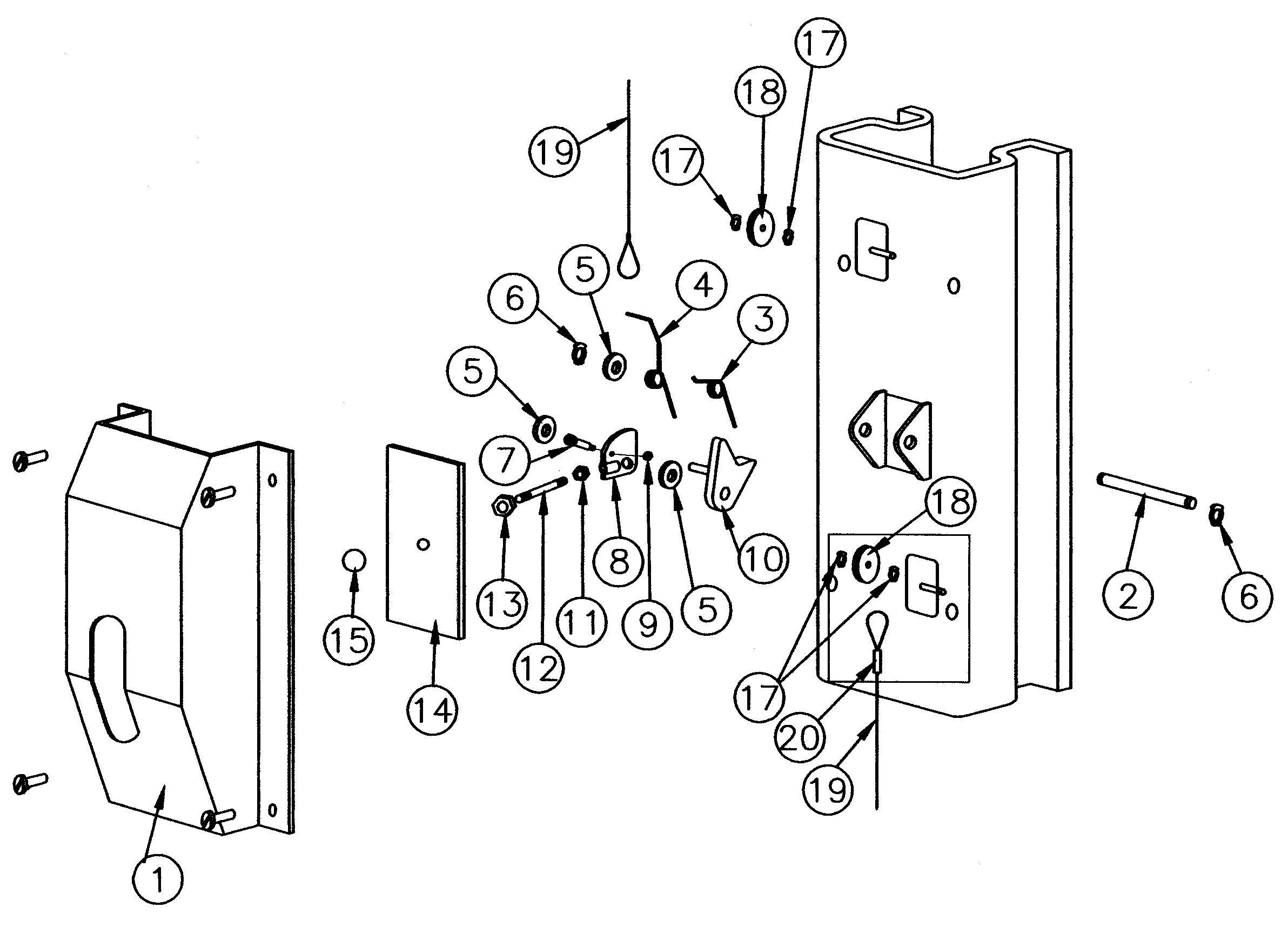

Parts for Rotary SPO10 Lock Detail

Above Ground / Surface Mount 2-Post Lifts – Rotary Lift – SPO10

Repair parts for Rotary Lifts Models SPO10, SPO10 EH1, SPO10 EH2, and SPO10 EH4, are available from SVI.

SVI is the #1 Source for repair parts for Rotary Lifts. Whether you need cables, sheaves, cable / sheave revamp kits, slider blocks, power units, height extensions and pads, or another part for your 2-post Rotary lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Rotary Lift SPO10:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
GP1010
1
Latch Cover Kit w/ Screws

1
5/16-18 x 3/8 Machine Screw

2–6
FJ7382-2
1
Lock Latch Shaft / Spring Kit

5
41388
8
3/4" x 1-1/2" Bushing (1 incl. in kit)

7
40220
5/16" x 1" Shoulder Bolt (1/4-20)

8
FJ7594-2
1
Control Plate

9
1/4-20 Lock Nut

10
N616
1
Lock Pawl

11
3/8-16 Jam Nut

12
FJ7382-18
1
Lock Release Handle

13
1/2-13 Jam Nut

14
N617
1
Cover (included with item 1)

15
FC134-91
1
Red Ball

17
41410
Ext. Retaining Ring 5304-37

18
FJ7322
Lock Cable Sheave

19
FJ7595-1
1
Locking Latch Release Cable

20
N63-1
Cable Clamp

KIT
FJ7595
Latch Cable Adjuster Kit (Includes parts 7, 8, 19 & 20)

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
