Parts for Rotary SP88

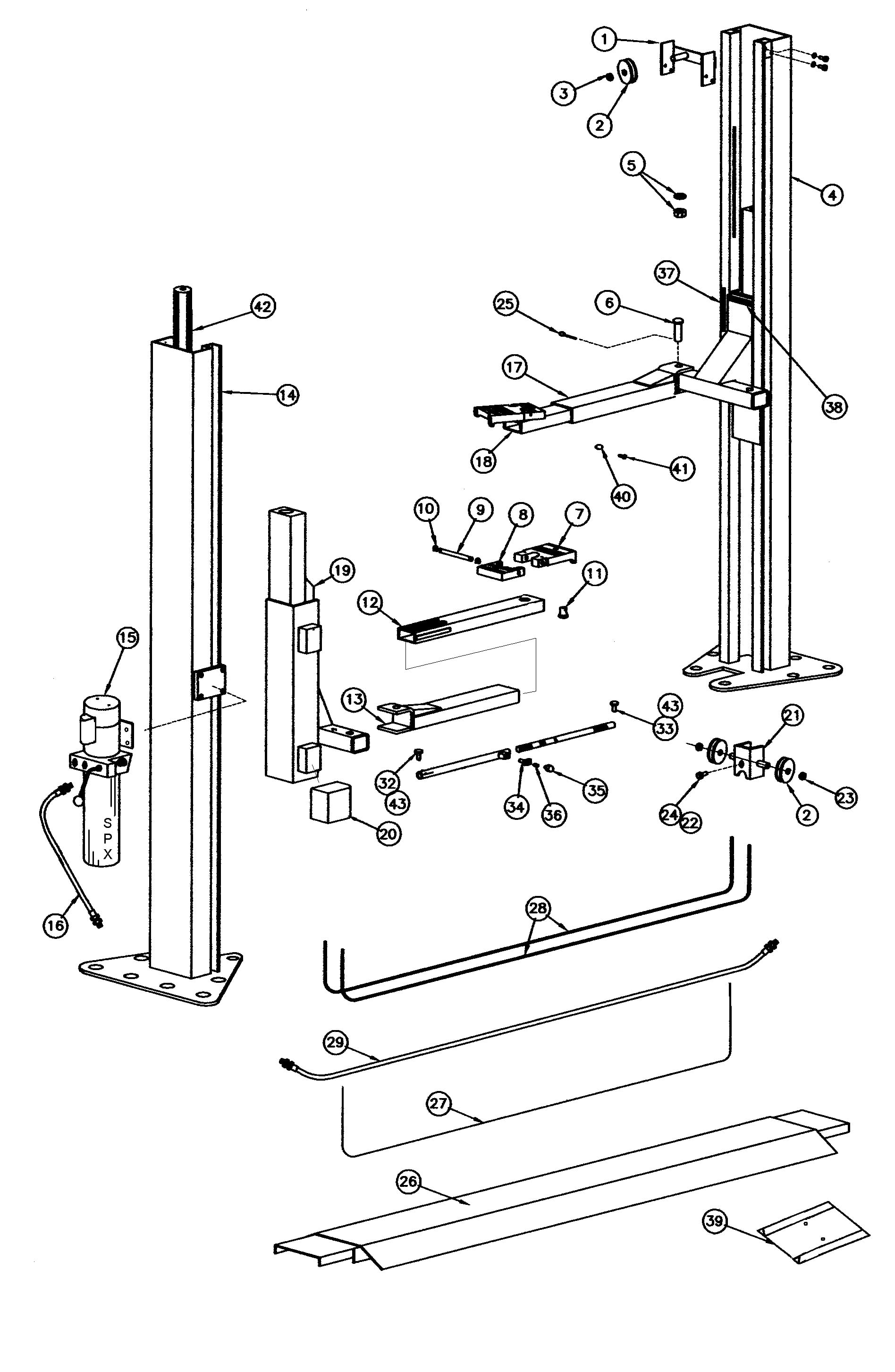

Above Ground / Surface Mount 2-Post Lifts – Rotary Lift – SP88

Repair parts for Rotary Lifts Model SP88 are available from SVI.

SVI is the go-to supplier for repair parts for Rotary Lifts. Whether you need equalizer and lifting cables or chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Rotary lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Rotary Lift SP88:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
FJ7428-3
2
Top Sheave Bracket

2
SVI Exclusive
6
Sheave, Solid Steel

2
FJ7116-1
6
Sheave, Nylon

3
6
Ext. Retaining Ring 5304-75

4*
Request Details
FJ7425
1
Left Column

5
4
1/2-13 Hex Jam Nut

5
4
1/2-13 Hex Nut

6
FJ7453-4
4
Arm Swivel Pin

6
FJ7453-4x
4
Arm Swivel Pin - Fixes Arm Sag

7
FJ671-1
4
High Step Ductile Iron Adapter

7
FJ697
4
Rubber Pad Adapter for Flip-Up

8
FJ671-2
4
Low Step Ductile Iron Adapter

9
FJ671-3
4
Adapter Pin

10
FJ671-6
8
Hog Ring

11
FJ79-6
4
Adapter Swivel Pin

12*
FJ7416-2
4
Inner Swing Arm

13*
FJ7455-1
2
RF / LR Outer Arm

14*
Request Details
FJ7426
1
Right Column

15
P502
1
Power Unit

16
FJ818
1
Power Unit Hose

17*
FJ7456-1
2
LF / RR Outer Arm

18*
FJ7416-2
4
Inner Arm Kit (includes adapters)

19
FJ7453
2
Carriage Weldment

20
FJ7360
8
Slider Block (cup style)

20
FJ5106
2
Shim and Slider Kit (1 carriage)

21
FJ7425-6
2
Lower Sheave Shaft Bracket

22
2
1/4-20 x 1" Hex Capscrew

23
6
Ext. Retaining Ring 5304-75

24
2
1/4-20 Lock Nut

25
4
3/16" x 2" Cotter Pin

26
FJ576
1
Center Cover Kit

27
FJ7594-1
1
Locking Latch Release Cable

28
FJ7422
2
Equalizer Cable Assy

29
FJ7356
1
Hydraulic Hose

--
FJ7522
4
Arm Restraint Assembly Complete

32
FJ7233-22
4
Clevis Pin for Outer Tube

33
FJ7359-5
4
Clevis Pin for Inner Bar

34
FJ7233-25
4
Arm Restraint Plunger

35
FC134-9-10
4
Red Ball

36
Arm Restraint Spring (for OEM version)

36
BH-7503-46HD
FC134-9-7
4
Arm Restraint Spring

37-38
SVI Exclusive
1
doorjammerPRO protection (pair)

37-38
SVI Exclusive
1
doorjammerPRO 12" (pair)

39
FF729
1
15" Wide Reach Wheel Spotter

39
SVI Exclusive
1
15" Wide Reach Dual Spotter

40
4
5/16" Flatwasher

41
FC576
4
Hex Capscrew

42
FJ7311
2
Hydraulic Cylinder

42A
Seal Kit Texas Hyd Cyl

42B
Seal Kit Massey Ferguson Cyl

42C
Seal Kit Texas / Massey Universal

43
8
1/8" x 3/4" Cotter Pin

KIT
GP1019
Plunger / Spring / Ball KIT

KIT
FJ7522
Arm Restraint Assembly

KIT
FJ7359
Arm Restraint Kit (for 1 lift)

KIT
FJ671-7YL
Adapter Repair Kit for 4 Arms

KIT
FJ671-8YL
Adapter Repair Kit for 1 Arm

* Custom order by request. Sample may be needed
