Parts for Rotary SM123

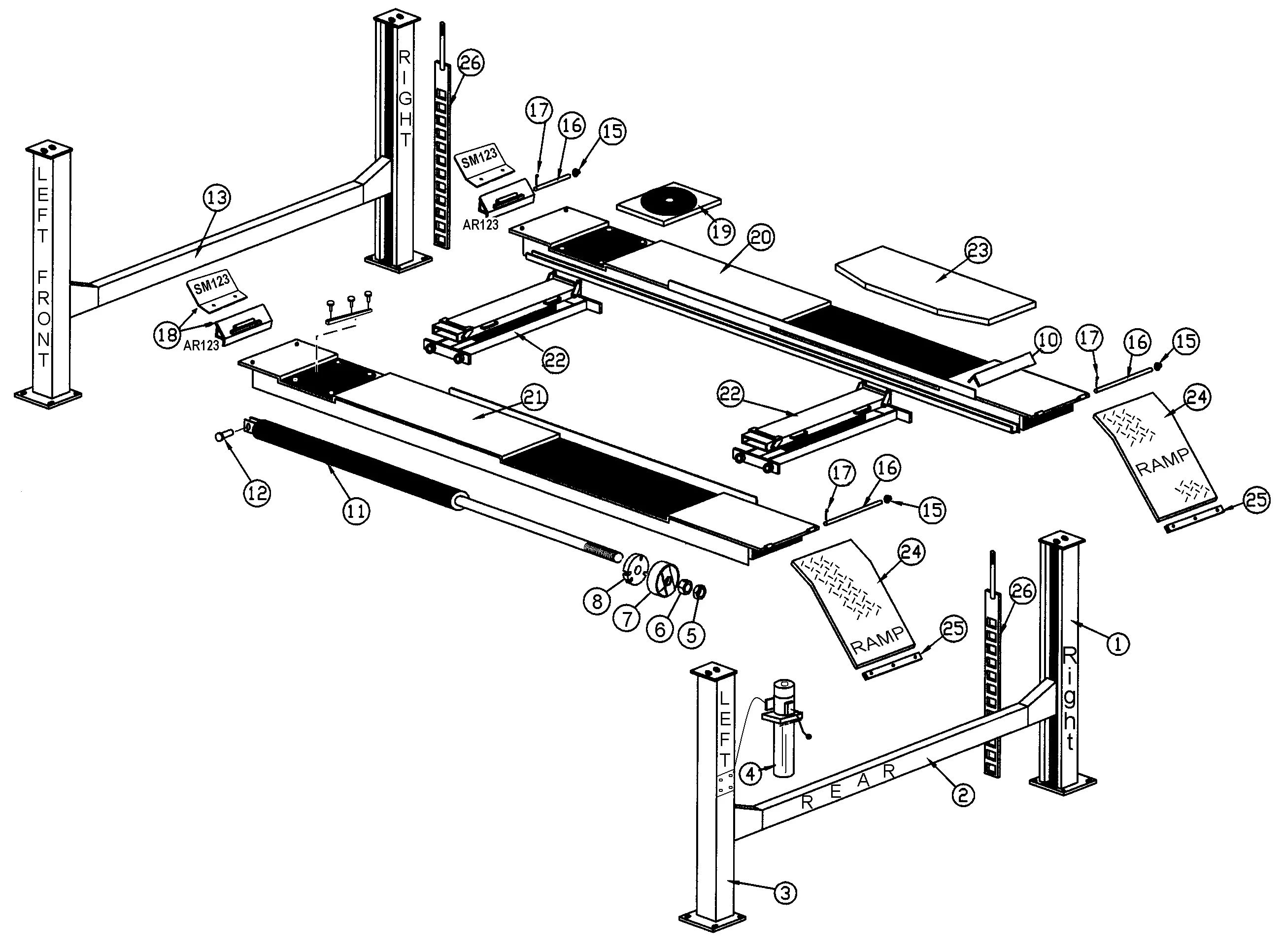

Above Ground / Surface Mount 4-Post Lifts – Rotary Lift – SM123

Repair parts for Rotary Lifts Model SM123 are available from SVI.

SVI is the your best choice for repair parts for Rotary Lifts. Whether you need cables, sheaves, chain, chain rollers, air cylinders, hydraulic cylinders, seal kits, lock release air valve switch, power units, or another part for your 4-post Rotary lift, SVI has what you need. We offer excellent pricing, top-notch customer service and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Rotary SM123:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1*
BH-7520-96
S120032
2
Column
View
2*
Request Details
varies
1
Rear Crossmember or Assembly
3*
Request Details
S120033
1
Column (Power Unit)
4
BH-7006-01
1
Power Unit (1PH)
View
5
F-JN-1375-06
40773
1
1-3/8"-6 Hex Jam Nut
6
F-HN-1375-06
40771
1
1-3/8"-6 Hex Nut
7**
BH-7529-26
S120068
1
Cable Retainer Weld
View
7**
BH-7501-89
FC543-2
1
Right Cable Retainer (N/A)
View
7**
BH-7501-90
FC543-3
1
Left Cable Retainer (N/A)
View
8**
BH-7529-27
S120075
1
Cable Pull Bar
View
8**
BH-7529-20
FC543
1
Cable Plate (N/A)
View
10
BH-7508-89
FC320
2
Wheel Chock
View
11
BH-7544-94
S130002
1
Hydraulic Cylinder
View
11
BH-7544-96
S130002-12HY
Seal Kit for Hyco
View
11
BH-7531-42U
FC5797-TH-UN
Seal Kit for Texas "TXT" Cylinder
View
12
BH-7513-43
FC5346-1
1
Clevis Pin
View
13*
Request Details
varies
1
Front Crossmember or Assembly
15
BH-7525-70
FC5179-4
2
5/8" Push Nut
View
16
BH-7517-78
FC134-99
2
Hinge Pin
View
17
F-CP-156-1000
41202
2
5/32" x 1" Cotter Pin
18
BH-7508-75
FC134-13
2
Wheel Stop (hinge pin style) for AR
View
18
BH-7524-66
FC342
2
Wheel Stop (bolt on) for SM
View
19
BA-1600-01
1
Turnplate Set 14-3/4" x 14" (2)
View
20-21*
Request Details
varies
1
Right or Left Runway
22
Request Details
SB300001
2
Rolling Jack (see section for parts)
23
Request Details
See Rear Slip Plate Parts
24
BH-7542-64
S110016
2
Ramp and Chock Assembly
View
24
BH-7542-65
S120072
2
Approach Ramp only
View
25
BH-7508-78
FC134-33
2
20" Ramp Slide
View
25
BH-7508-78K
S100051
2
20" Ramp Slide KIT with Fasteners
View
26
BH-7544-72
S120028
4
Lock Ladder
View

* Custom order by request. Sample may be needed.

**For Items 7–8, order BH-7529-26 (OEM #S120068) - Retainer Weld and BH-7529-27 (OEM #S120075) - Pull Bar Drill. Previous parts are N/A.
