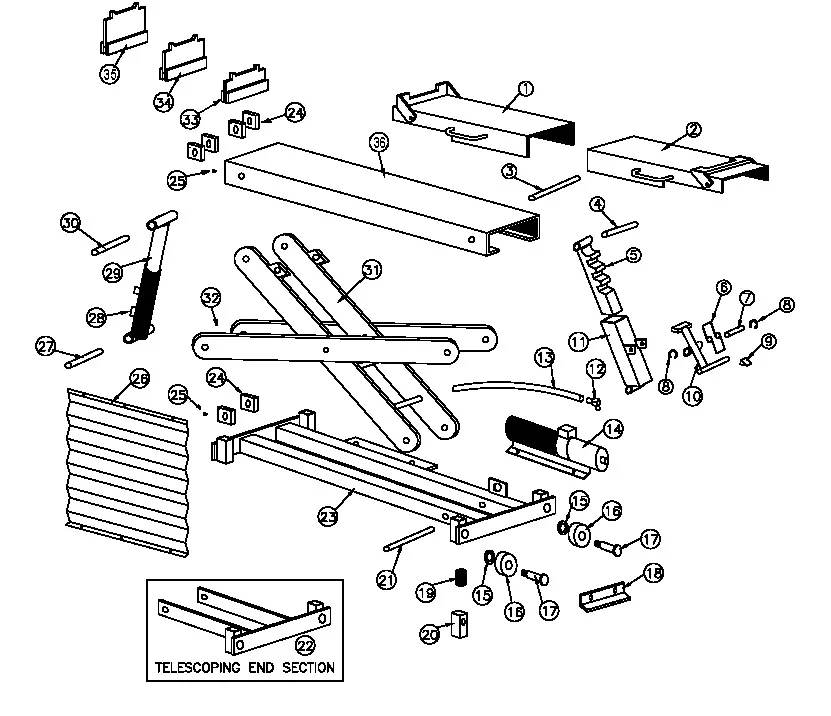

Parts for Rotary FC5278

Above Ground / Surface Mount Rolling Bridge Jacks – Rotary Lift – FC5278

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7514-55
FC5185-7
1
Left Sliding Base & Adapter
View
2
BH-7525-73
FC5185-10
1
Right Sliding Base & Adapter
View
3
BH-7516-37
FC5185-5
1
Shaft
View
4
BH-7525-93
FC5185-9
1
Lock Bar Pin
View
5
BH-7525-75
FC5185-14
1
Lock Bar
View
6
BH-7517-30
FC5141-15
1
Spring
View
7
BH-7525-19
FC5141-12
1
Spring Pin
View
8
BH-7510-16
2
3/8" Klipring
View
9
BH-7504-12
FC5141-16
1
Clip
View
10
BH-7501-70
FC5141-2
1
Latch
View
11
BH-7525-18
FC5141-1
1
Lock Bar Sleeve
View
12
BH-7525-52
FC5163-2
1
Elbow
View
13
BH-7512-18
FC5110
1
19" Hydraulic Hose Assembly
View
14
Available—Call to order
Pump - Call with details/number off current pump
15
BH-7514-03
FC5277-20
4
Roller Spacer
View
16
BH-7514-01
FC5185-51
4
Roller Wheel
View
17
BH-7514-08
FC67-29H
4
Roller Axle
View
18
BH-7525-15
FC5124-2
2
Retainer Angle for FC5277, FC5278, FC5279
View
19
BH-7514-05
FC5277-10
4
Spring
View
20
BH-7514-06
FC67-28H
4
Inner Guide
View
21
BH-7516-35
FC5185-4
1
Lower Shaft
View
22
BH-7514-07
FC5277-5
2
Telescoping End Section for FC5277, FC5278, FC5279
View
23
BH-7504-45
FC5277-2
1
Base Structure for FC5277, FC5278, FC5279
View
24
BH-7525-85
FC5185-67
4
Slider Block
View
25
F-RP-187-1750
8
3/16" x 1-3/4" Roll Pin
26
BH-7525-27
FC5144-1
2
Accordion Guard Panel
View
27
BH-7516-34
FC5185-21
1
Bottom Cylinder Pin
View
28
Request Details
FC5185-45
1
Elbow
29
BH-7516-24
FC5185-20
1
Hydraulic Cylinder
View
29
BH-7516-03
FC5410
1
Hydraulic Cylinder Seal Kit
View
30
BH-7525-93
FC5185-9
1
Top Cylinder Pin
View
31
BH-7525-77
FC5185-19
1
Cylinder Scissor Assembly
View
32*
Request Details
1
Scissor Assembly
33
BH-7514-54
FC5108
2
Height Extension - (3")
View
34
BH-7514-35
FC579
2
Height Extension - (5")
View
35
BH-7514-54A
FC5108x
2
Height Extension - (8")
View
36
BH-7525-84
FC5185-6
1
Top Plate Channel
View

* Custom order by request. Sample may be needed.
