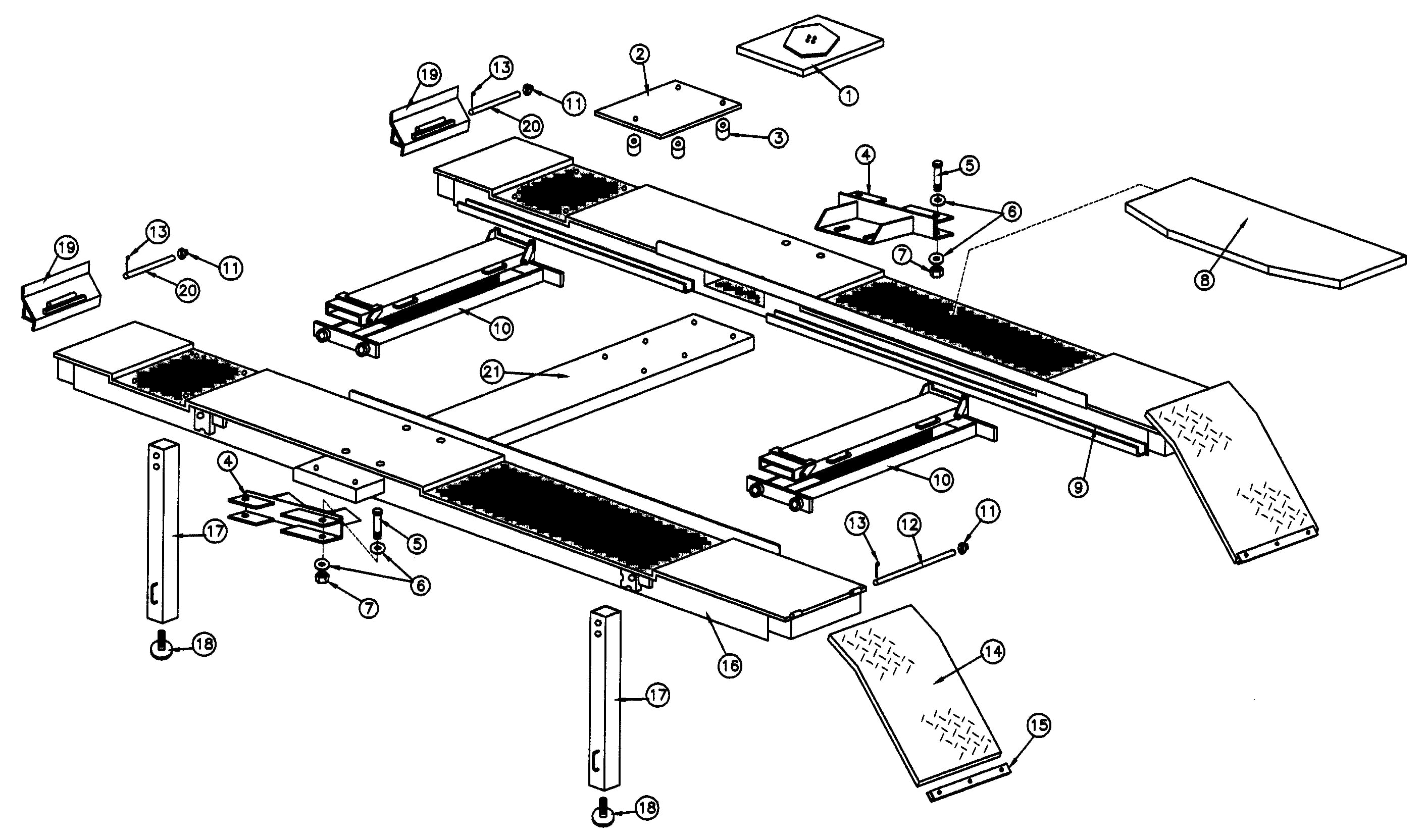

Parts for Rotary ARO9 Aligner

Above Ground / Surface Mount 2-Post Lifts – Rotary Lift – ARO9

SVI is the go-to supplier for repair parts for Rotary Lifts. Whether you need equalizer and lifting cables or chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Rotary lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Rotary Lift ARO9 Aligner:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
1
Alignment Turnplate (set of 2)

2
FC134-11
2
Plate

3
Request Details
FC134-95
6
Spacer

4
FJ7810
2
Carriage Saddle

5
F-HC-1500-06-7000
4
1-1/2-6 x 7 Hex Head Capscrew

6
F-LW-1500
8
1-1/2" Lockwasher

7
F-HN-1500-06
4
1-1/2" Hex Nut

8
FC5249
2
Slip Plate Assembly

9*
FC136
1
Right Runway

10
Request Details
2
Rolling Jack

11
5/8" Push Nut

12
FC134-99
4
Pin

13
F-CP-156-1000
4
5/32" x 1" Cotter Pin

14
FC134-12
2
Drive On Ramp/Chock

15
FC134-33
2
Ramp Slide

15
S100051
Ramp Slide KIT

16*
FC147
1
Left Runway

17
FC134-28
4
Levelling Leg

18
FC134-36
Levelling Leg Adjustment Foot

19
FC134-13
2
Front Wheel Chock

20
FC134-99
4
Pin

21*
FC217
1
Cross Support

* Custom order by request. Sample may be needed.
