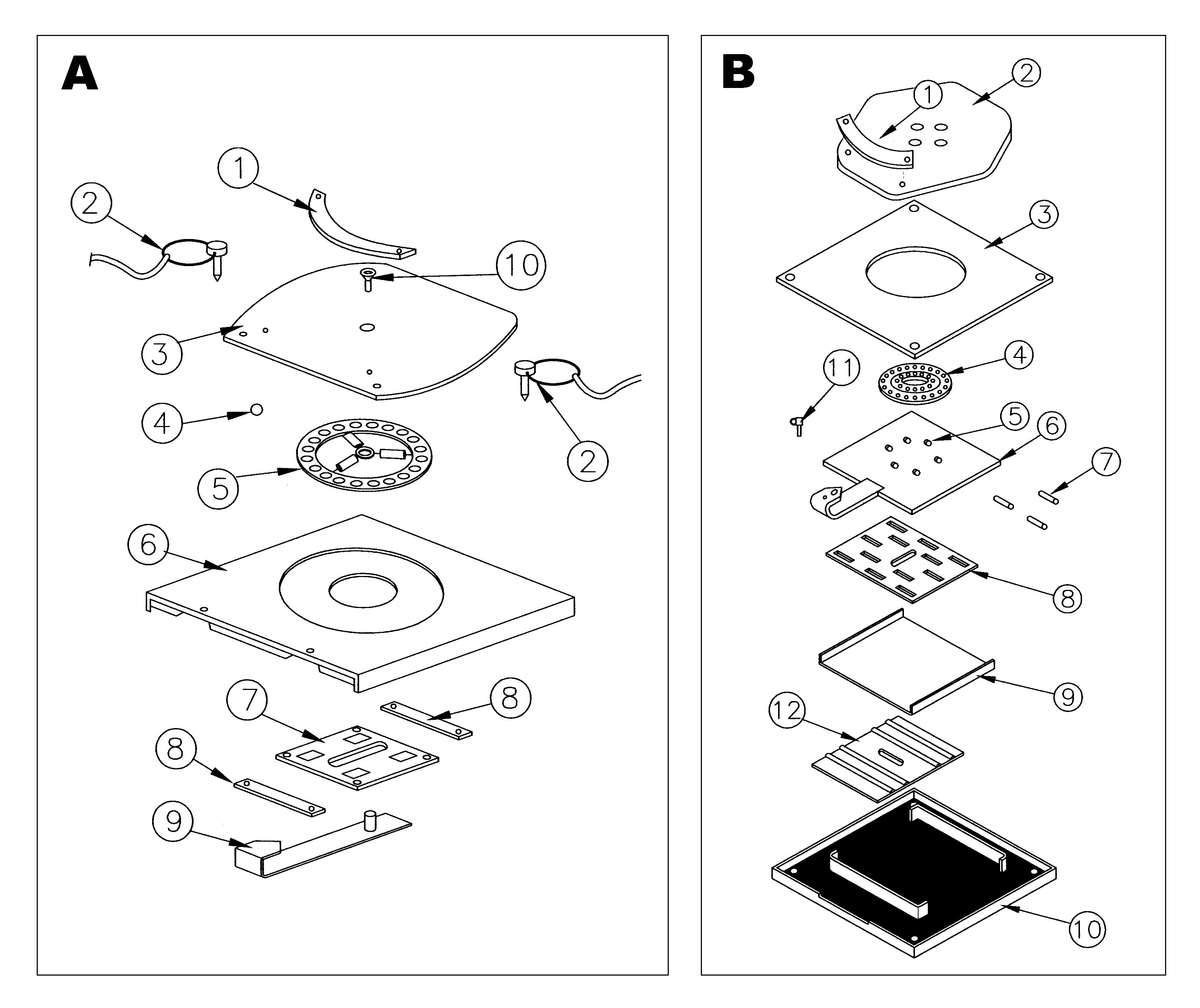

Parts for Rotary ARO9 Aligner Turnplate

Above Ground / Surface Mount 2-Post Lifts – Rotary Lift – ARO9

SVI is the go-to supplier for repair parts for Rotary Lifts. Whether you need equalizer and lifting cables or chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Rotary lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Rotary Lift ARO9 Aligner:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

A1
NP228
1
Radius Gauge

A2
FC5104-4
2
Lock Pin

A3
FC5792-9
1
Turnplate Top

A4
FC5190-7
3/4" Delrin Ball

A5
Request Details
FC5792-13
1
Ball Retainer

A6
FC5792-1
1
Turnplate Base

A7
FC5792-12
1
Degree Pointer Guide

A8
BH-7531-94
FC5792-6
2
Strap

A9
FC5792-7
1
Degree Pointer

B1
NP228
1
Radius Gauge

B2
FC5105-9
1
Top Turntable Hex Plate

B3
FC5105-8
1
Top Fixed Plate

B4
FC5105-7
1
Short Roller Retainer Cage

B5
FC5105-6
Short Roller

B6
FC5105-5
1
Pointer Plate Assembly

B7
FC5105-2
Long Roller

B8
FC5105-3
2
Long Roller Retainer Cage

B9
FC5105-4
1
Divider Plate

B10
FC5105-1
1
Bottom Plate

B11
FC5104-4
Lock Pin

B12
FC5105-99
1
Lower Slide Bearing

KIT
Radius Gauge Rebuild Kit
