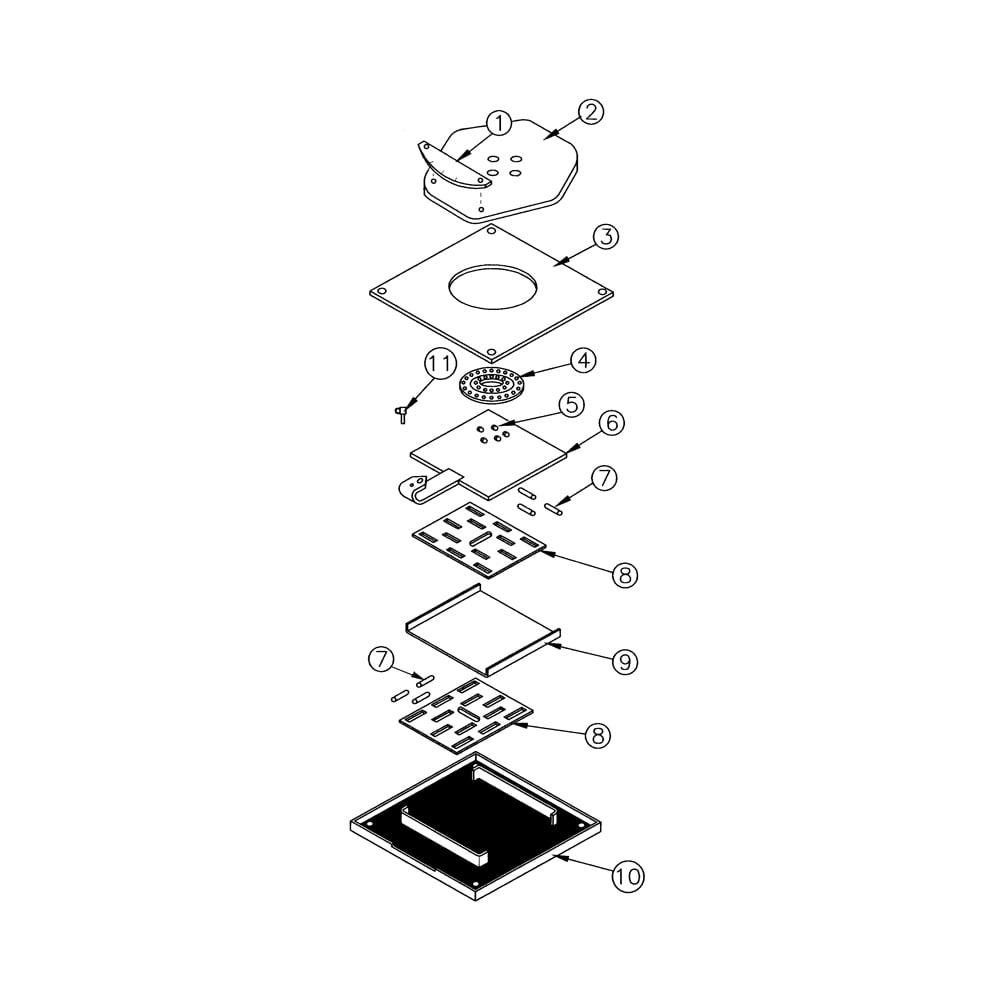

Parts for Rotary AR94 Aligner Turnplate

Above Ground / Surface Mount 2-Post Lifts – Rotary Lift – AR94

SVI is the go-to supplier for repair parts for Rotary Lifts. Whether you need equalizer and lifting cables or chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Rotary lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Rotary Lift AR94 Aligner:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
n/a
NP142
1
Degree Plate

2
FC5105-9
1
Top Turntable Hex Plate

3
FC5105-8
1
Top Fixed Plate

4
FC5105-7
1
Short Roller Retainer Cage

5
FC5105-6
Short Roller

6
FC5105-5
1
Pointer Plate Assembly

7
FC5105-2
Long Roller

8
FC5105-3
2
Long Roller Retainer Cage

9
FC5105-4
1
Divider Plate

10
FC5105-1
1
Bottom Plate

KIT
Radius Gauge Rebuild Kit

KIT
14-3/4" x 14" Alignment Turnplate Set

KIT
14-3/4" x 14" Alignment Turnplate Set - Stainless Steel

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
