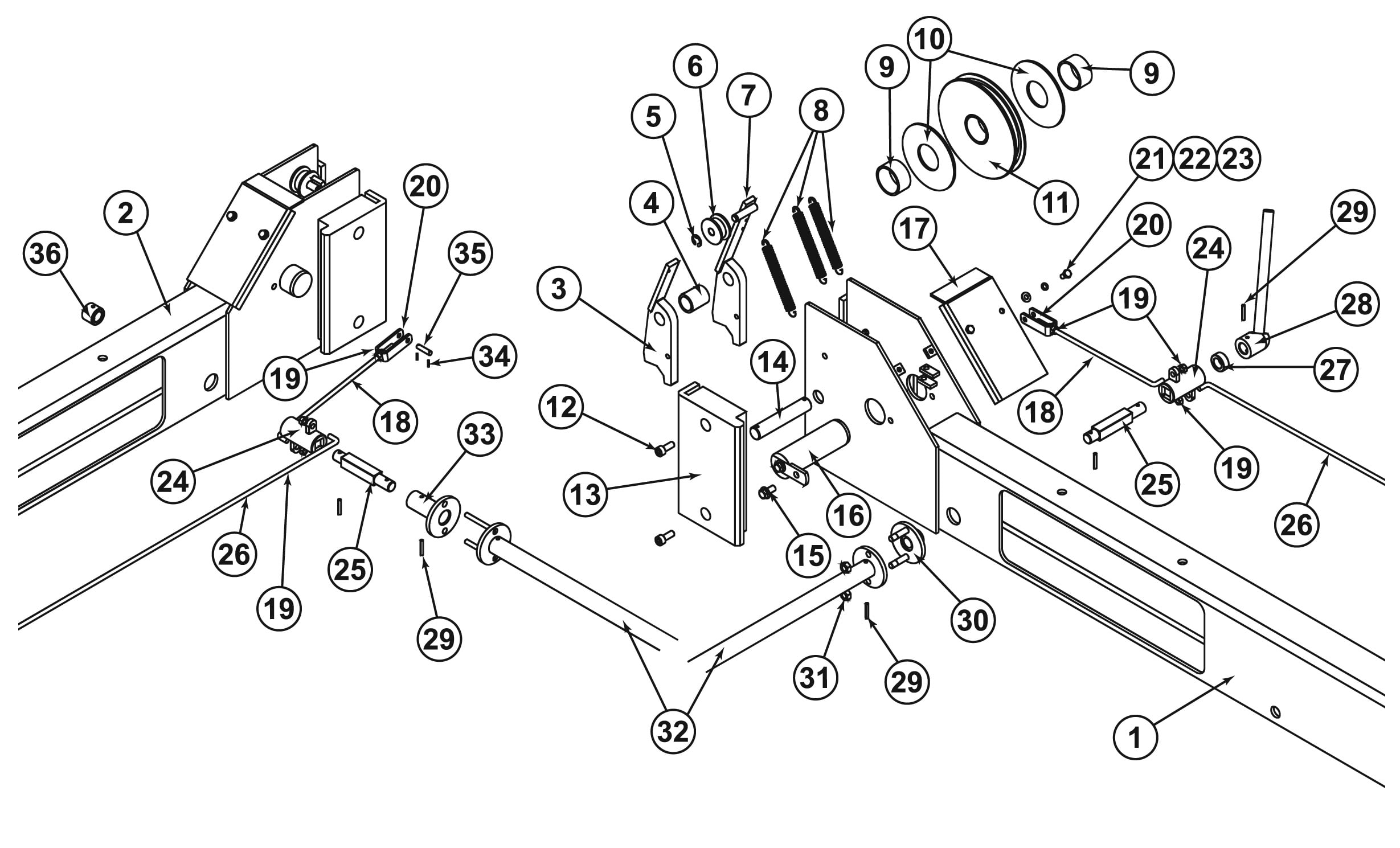

Parts for Quality Lifts Q4P09 Crossbeams

Above Ground 4-Post Lifts – Quality Lifts – Q4P09

Repair parts for Quality Lifts Model Q4P09 are available from SVI.

SVI offers Direct Fit™ brand Repair Parts and Solutions

SVI is the your best choice for repair parts for Quality Lifts. Whether you need cables, sheaves, chain, chain rollers, air cylinders, hydraulic cylinders, seal kits, lock release air valve switch, power units, air / electric utility box, or another part for your 4-post Quality lift, SVI has what you need. We offer excellent pricing, top-notch customer service and in-stock items usually ship out same day.

Looking for a specific part or a model parts breakdown? Contact SVI today!

Also see these additional breakdowns for Quality Lift QP409:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
Request Details
TCS4-04-01-00
1
Front Crossbeam Weld

2
Request Details
TCS4-05-01-00
1
Rear Crossbeam Weld

3
TCS4-04-11-00
4
Primary Lock Pawl

4
Request Details
B40132
4
Spacer Bushing

5
Request Details
Q4P09-008
4
Ø10mm Snap Ring

6
JSZ5-5-02-05
4
Roller

7
B40134
4
Slack Cable Latch

8
JSZE-5-02-09
12
Extension Springs

9
B40438-X
8
Sheave Spacer Bushing

10
B40053
8
1/8" Thick Bearing

11
TCS4-04-03-00
4
Sheave Assembly

12
Request Details
Q4P09-006
16
M8 x 20mm Lg. Socket Head Capscrew

13
TCS4-04-02
8
Slide Block

14
B40127
4
Lock Pivot Pin

15
Request Details
B31188
4
M8 x 16mm Lg. Hex Locking Flg. Hd. Capscrew

16
B40116
4
Sheave Pin Assembly (Crossbeam)

17
TCS4-04-14
4
Sheave Guard

18
TCS4-04-08
2
Mechanical Lock Rod - Short

19
Request Details
B40467
12
M6 Nut

20
Request Details
TCS4-04-06
4
Lock Rod Clevis

21
Request Details
Q4P09-007
8
M6 x 12mm Lg. Cap Screw

22
Request Details
68004-7
8
M6 Lock Washer

23
X10-032
8
M6 Washer

24
Request Details
TCS4-04-07-00
2
Mechanical Lock Coupler

25
TCS4-04-12
2
Lock Coupler Pivot Pin

26
TCS4-04-09
2
Mechanical Lock Rod - Long

27
Request Details
TCS-4-04-05
1
Lock Spacer

28
TCS4-04-04-00
1
Mechanical Lock Handle

29
Request Details
Q4P09-009
4
Ø4mm x 24mm Lg. Roll Pin

30
Request Details
TCS4-04-10-00
1
Flange Coupling - Male

31
Request Details
X10-048
2
M8 Nut

32
TCS4-10-00
1
Mechanical Lock Bar

33
Request Details
TCS4-05-10-00
1
Flange Coupling - Female

34
Request Details
Q4P09-005
8
Ø6mm x 10mm Lg. Roll Pin

35
B2211
4
Ø6mm x 30mm Lg. Roll Pin

36
Request Details
TCS4-05-11
1
Retainer Sleeve

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
