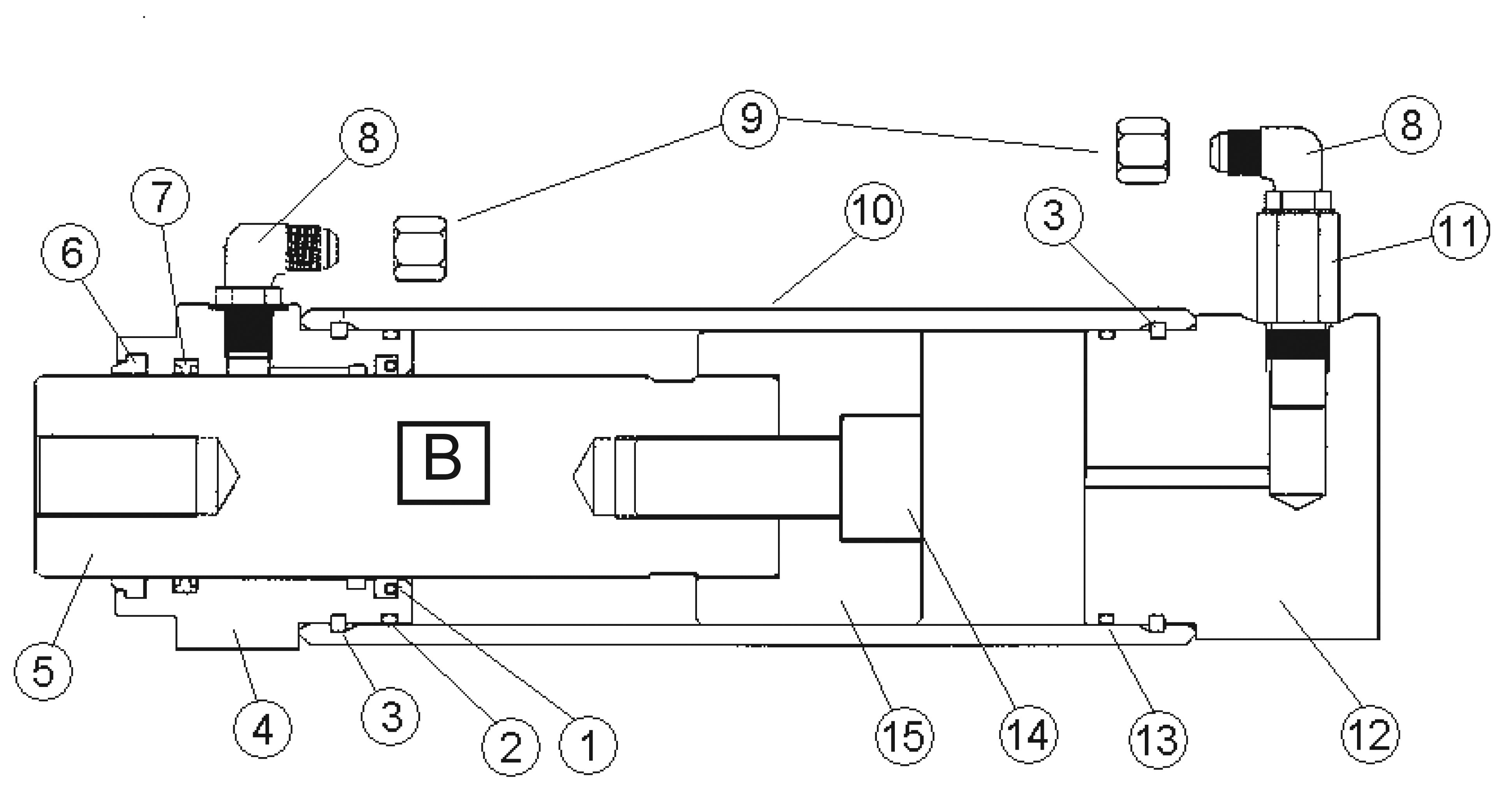

Parts for Mohawk TP-15 Hydraulic Cylinder Opposite Side

Above Ground / Surface Mount 2-Post Lifts – Mohawk – TP-15

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description

B
BH-7342-08
015-000-010
Opposite Side Cylinder Assembly
View
1
BH-7340-80
601-040-001
Polypack Seal
View
2
OB-90-237
601-030-003
O-Ring
3
BH-7340-65
025-002-132
Gland Retainer
View
4
BH-7342-14
015-000-110
Gland
View
5
BH-7342-15
012-012-105
Cylinder Rod
View
6
BH-7340-82
601-020-002
Rod Wiper
View
7
BH-7340-83
601-000-002
Rod T-Seal w/back-ups
View
8
BH-7006-06
601-420-017
90° Elbow
View
9
BH-7340-86
601-420-001
Nut
View
10
BH-7342-11
012-012-101
Barrell
View
11
BH-7340-66
601-410-031
Velocity Fuse
View
12
BH-7342-16
007-007-108
Gland
View
13
OB-90-237
601-030-003
O-Ring
14
BH-7342-09
600-650-001
Socket Head Capscrew
View
15
BH-7342-17
012-012-104
Cylinder Piston
View
--
BH-7340-94
007-007-009
Bottom Gland Assembly (includes items: 8. 11, 12, and 13)
View
--
BH-7340-90
009-001-006
Cylinder Rod Gland Assembly (includes items: 1, 2, 4, 6, and 7)
View
--
BH-7340-28
012-012-097-1
Seal Kit
View
