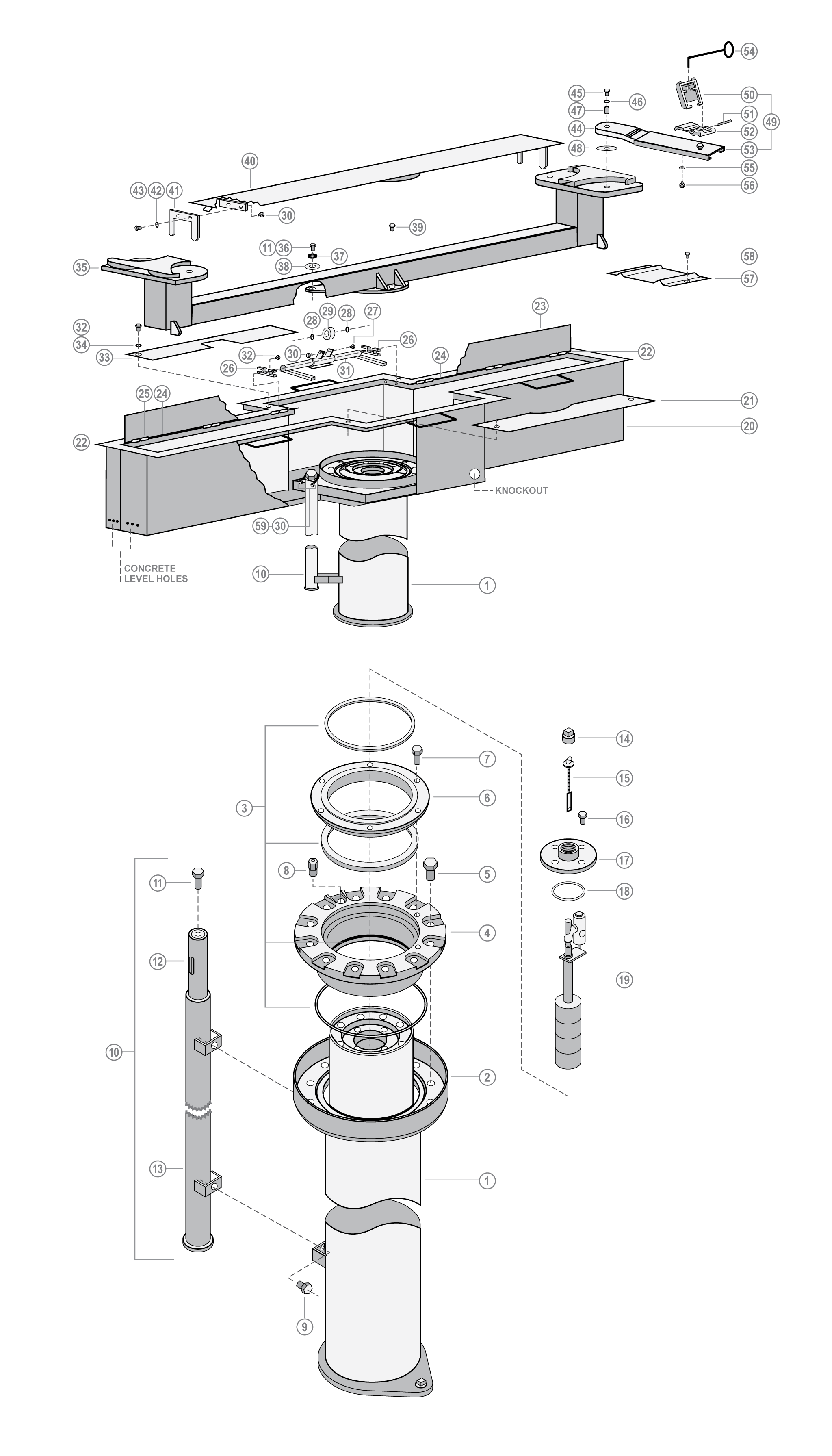

This is the Semi-Hydraulic version of the Single Post, Swing Rail Drive-Through Lift.

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-9321-01
T13952-01
1
Plunger & Cylinder Assembly
View
1
BH-9321-01FG
1
Fiberglass Coated Option
2
BH-9321-02
T13948-G1
1
Plunger Assembly - See Note
View
3
BH-1716
1
Hoist Kit for Manitowoc 10-5/8" Cylinder
View
3
BH-1716LS
1
Hoist Kit for Manitowoc - Leak Sealer Version
View
3
BH-1716-OE
1
Hoist Kit for Manitowoc - OEM Version
View
4
BH-9321-04
T13943-02
1
Upper Bearing
View
5
F-HC-0750-10-2250
Q10412-01
12
3/4"-10 x 2-1/4" Hex Head Cap Screw
View
6
BH-9321-13
R18229-02
1
Wiper Retainer New (w/step up)
View
7
F-HC-0437-14-1500
K01907
6
7/16"-14 x 1-1/2" Hex Head Cap Screw
View
8
BH-9321-07
N21812-G1
1
Air Vent Bleeder Valve
View
9
F-HC-0375-16-0750
K01901
2
3/8"-16 x 3/4" Hex Head Cap Screw
View
10
BH-9313-57
N20268-10
1
Safety Leg and Casing Assembly (Includes 11, 12, 13)
View
11
F-HC-1000-08-3000
K01914-64
1
1"-8 x 3" Head Head Cap Screw
View
12
TR-68
R13470-01
1
Telescoping Post & Latch Assembly
13
BH-9320-40
R16245-02
1
Safety Leg Casing
View
14
BH-9321-12
K02284
1
1-1/4" Pipe Plug
View
15
BH-9321-11
N18490-01
1
Oil Gauge
View
16
F-HC-0375-16-0875
K47659
4
3/8"-16 x 7/8" Hex Head Cap Screw
View
17
BH-9313-44
N18842
1
Cover
View
18
OB-70-241
Q10068-32
1
70 Duro O-Ring
19
BH-9780-73
R13365
1
Low Oil Control
View
20
BH-9321-42
T13931
1
Welded Trench Box Assembly
View
21
BH-9320-22
R13431-01
1
Cover Plate
View
22
F-CP-125-0750
K42307
2
1/8" x 3/4" Cotter Pin
View
23
BH-9320-20
R13429-02
1
39-1/4" Moveable Door Assembly
View
24
BH-9320-56
K88603
2
Door Hinge Rod
View
25
BH-9320-19
R13429-01
1
34" Moveable Door Assembly
View
26
BH-9320-55
K88601
2
Pivot Bracket Assembly
View
27
F-HC-0375-16-3250
K41353
1
3/8"-16 x 3-1/4" Lg. Hex Head Cap Screw
28
F-FW-0500-USS
K02208
2
1/2" Std. Flat Washer
View
29
BH-9324-21
K90197
1
Wheel Assembly
View
30
F-HN-0375-16
K01943
7
3/8" Hex Nut
View
31
BH-9320-18
R13426
1
Door Lever Assembly
View
32
F-HN-0375-16-1000
K01902
8
3/8" x 1" Lg. Hex Head Cap Screw
33
BH-9320-21
R13430
1
Cover Plate
View
34
F-FW-0375-USS
K02206
4
3/8" Flat Washer
View
35
BH-9321-49
T13958-02
1
Crosshead Assembly
View
36
F-HC-1000-08-3000
K01914-64
1
1"-8 x 3" Lg. Hex Head Cap Screw (Also Item 11)
View
37
F-LW-1000
K02217-22
1
1" Lock Washer
View
38
F-FW-1000
K02212
1
1" Flat Washer
39
F-HC-0750-10-2250
Q10412-01
6
3/4"-10 x 2-1/4" Hex Head Cap Screw
View
40
BH-9320-99
T09455
1
Cover Door Assembly
View
41
BH-9313-50
N19654
2
Door Guide Bar
View
42
F-LW-0375
K50775
4
3/8" Lock Washer
View
43
F-HC-0375-16-1250
K01903
4
3/8"-16 x 1-1/4" Lg. Hex Head Cap Screw
View
44
BH-9324-09
N20275
4
Swing Arm
View
45
F-HC-0437-14-2250
K78272
4
7/16"-14 x 2-1/4" Lg. Hex Head Cap Screw
View
46
F-LW-0437
K02215
4
7/16" Hvy. Lock Washer
View
47
BH-9320-11
K85825
4
Swing Arm Pivot Bushing
View
48
BH-9320-08
K87033
4
Swing Arm Pivot Washer
View
49
BH-9324-10
N20366-02
4
Sleeve and Adapter Assembly (Includes 51, 52, 53, 54)
View
50
BH-9320-04
R16123-02
4
Pick-up Pad (With Protruded Ends)
View
51
BH-9320-05
R12709-02
4
Swivel Base Pad
View
52
BH-9320-06
Q10038-04
4
5/16" Dia. X 4 Spiral Pin
View
53
BH-9313-31
R12956-02
4
Sliding Base Assembly
View
54
BH-7352-15
K62563
1
38" Positioning Rod
View
55
F-LW-0500
K02455
4
1/2" Lock Washer
View
56
F-HC-0500-13-1000
K01909
4
1/2"-13 x 1" Hex Head Cap Screw
View
57
BH-9701
T07915
1
Wheel Stop
View
57
BH-9702
T07915
1
Wheel Stop - Dual Position
View
58
F-SA-0375-2000
K03782
2
3/8" x 2" Spike Anchor
View
59
F-UB-0375-16-2000
K67996-07
1
3/8" "U" Bolt
