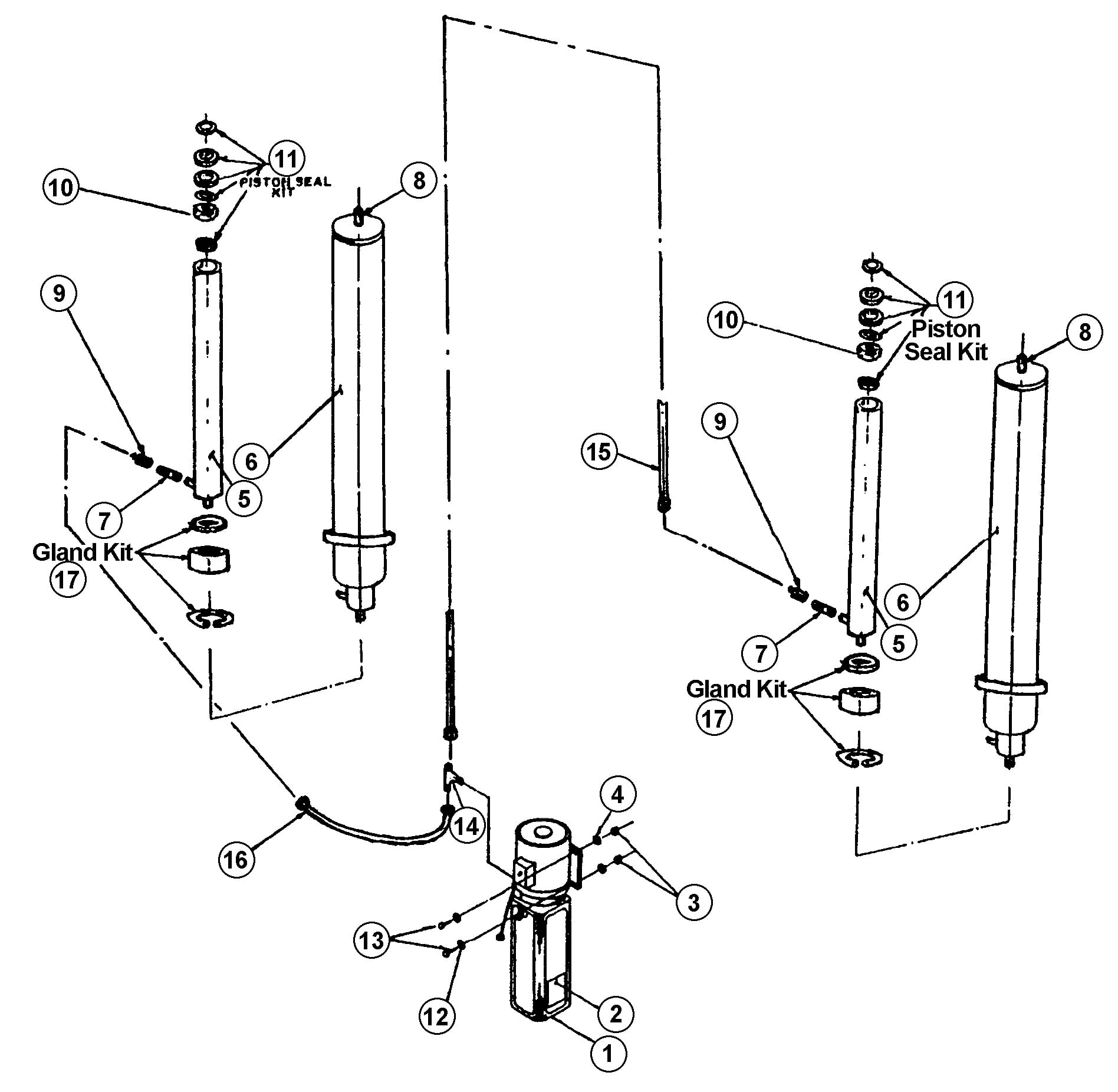

Parts for Magnum 81776S Hydraulics

Above Ground / Surface Mount 2-Post Lifts – Magnum/American Tire Dist/Heafners – 81776S

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
BH-7805-15
6-1310
1
Power Pack
View
2
BH-7805-101
6-1265
1
Lift Operation Decal
3
F-HN-0312-18
6-0294
4
Hex Nut, 5/16"-18
View
4
F-LW-0312
6-0674
4
Lock Washer, 5/16"
View
5
BH-7793-10
1-1469
2
Piston Rod, 1-1/4" x 1/4" x 72-11/16"
View
6
BH-7793-08
1-1465
2
Cylinder Tube Machined
View
7
BH-7805-29
6-1509
2
Male Nipple, 1/4" NPT
View
8
Request Details
6-1511
2
1/8" NPT Sq. Head Plug
9
BH-7804-30
6-1510
2
Flow Control
View
10
BH-7793-09
1-1467
2
Piston
View
11
BH-7790-84
0-0337
2
Piston Seal Kit
View
12
F-FW-0312-USS
6-0061
4
Flat Washer, 5/16"
View
13
F-HC-0312-18-1000
6-0293
4
Hex Bolt, 5/16"-18 x 1"
View
14
BH-7804-28
6-1506
1
Branch Tee
View
15
BH-7805-30
2-1231
1
Hydraulic Hose (Long)
View
16
BH-7795-39
2-1230
1
Hydraulic Hose (Short)
View
17
BH-7790-85
0-0338
2
Gland Kit
View
