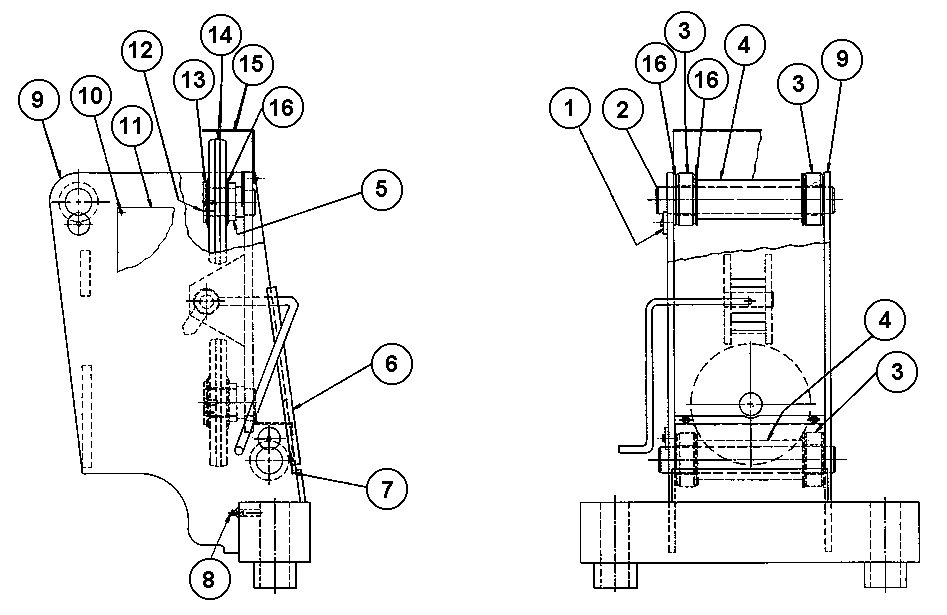

Parts for Hydra-Lift 31 Carriage Assembly Power Side

Above Ground / Surface Mount 2-Post Lifts – Hydra-Lift – 31

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
28010
2
Main Roller Shaft Plate

2
28008
2
Carriage Cross Shaft

3
28310
4
Main Roller Assembly

4
28012
2
Main Roller Spacer

5
28013
2
Track Roller Spacer

6
28189
2
Door Guard

7
28179
1
Bottom Roller Guard

8
28247
2
Grease Nipple

9
28014
1
Carriage Assembly

10
28239
4
Metal Tacks

11
28166
1
Maintenance Plate

12
28499
2
1/8 X 1/2 Lg Roll Pin

13
28011
2
Track Roller Locking Plate

14
28300
2
Track Roller Assy - Specify Size

15
28177
1
Roller Guard Power Side

16
28006
12
Nylon Thrust Washer

*
28004
Complete Carriage Assembly - Power Side

* Custom order by request. Sample may be needed.
