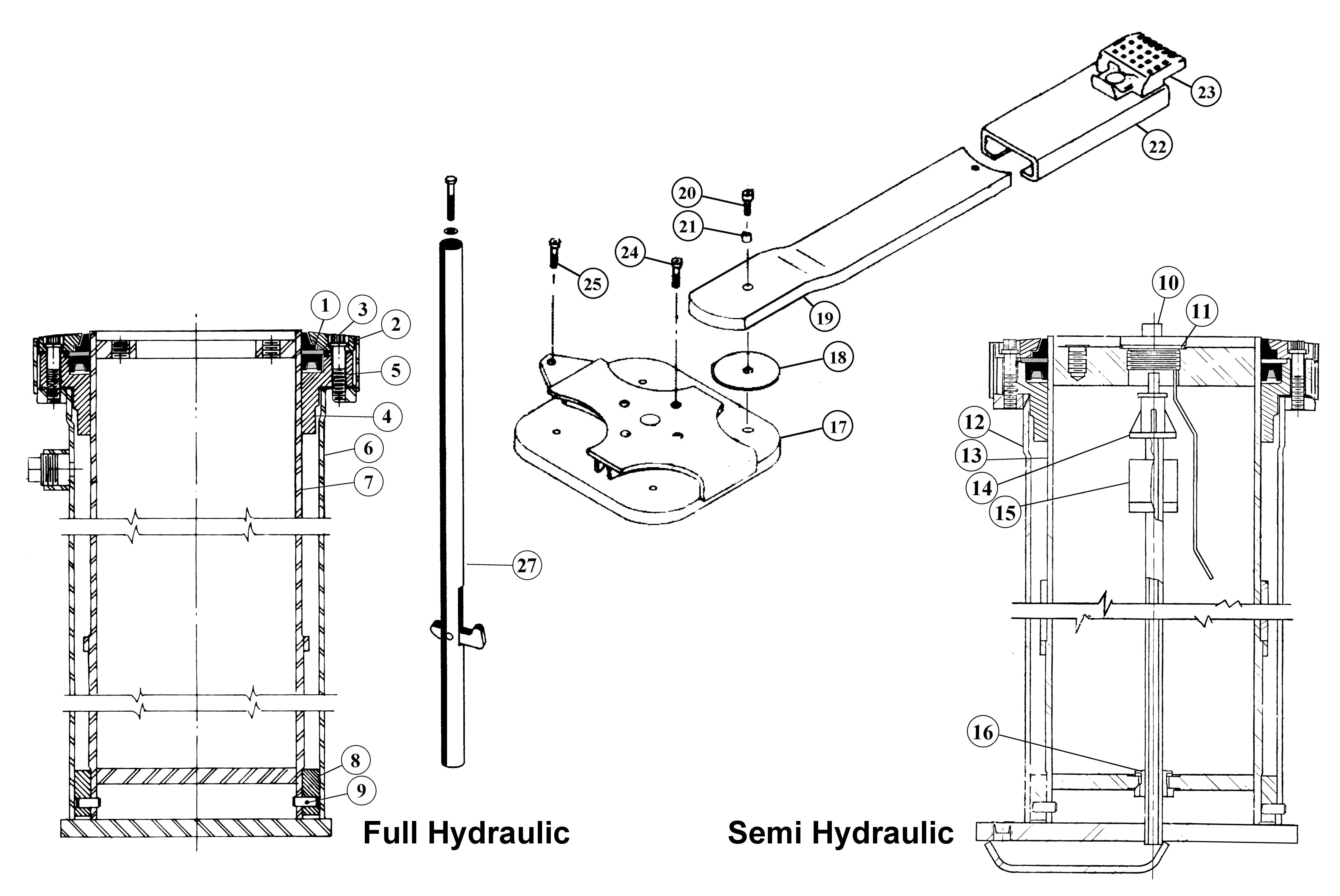

Parts for Globe Lifts FS-10A

In Ground Single Post Lifts – Globe – FS-10A

SVI is the #1 Source for repair parts for in-ground Globe Lifts. Whether you need hoist packing seal kits, rack bars, gears, equalizer assemblies and components, safety legs, safety lock parts, lifting saddles and adapters, pit cover plates, power unit, or another part for your in-ground Globe Lift, SVI has what you need. We offer excellent pricing, top-notch customer service and fast shipping with in-stock items that usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
UW102
1
Lift Packing Kit

1
UW102
1
Spring Style Lift Packing Kit

2
B-35054
1
Wiper Seal Cover (Gland) 12 Bolt

3
B-35056
1
Holder Ring (Steel)

3
1
Holder Ring (for 2L Plungers)

4
B-35055
1
Upper Guide Bearing

4
B-35055x
10-5/8" DUSL Style Upper Bearing Kit

5
438XG22
12
Capscrew

8
BH-9420-08
B-41569
1
Lower Guide Bearing

9
359XM1250
1
Spring Pin

10
B-41538-1
1
Access Plug/Dipstick New 2"

11
204X3
1
Access Plug Gasket 2"

12
42041-001
1
Casing Assembly (Semi Hyd.)

13
B-38702-4
1
Plunger Ass'y (Semi-Hyd.)

14
A-41085
1
Float Stop

15
A-39183
1
Float

16
A-43457
1
New Orifice Seals without tools

16
A-43457-G01
1
New Style Orifice Kit with tools

17
C-42876
1
Bolster Assembly

18
B-32101-2
4
Wear Washer

19
B-42936
4
Arm Assembly

20
426XG-N14
4
Locking Cap Screw

21
A-40689
4
Arm Bushing/Spacer

22
C-34354
4
Sleeve and Adapter Assy.

--
Rubber Pad Adapter

23
C-34355
4
Lifting Pad only

23
359XH0750
2
Stop Pin

24
F-SC-0875-9-2750
438XI22
4
Cap Screw

25
430XG20
1
Cap Screw

26
412XH-008
4
Arm Stop Pin for Sleeve black

26
Cap / Plug

26
4
Arm Stop Pin for Sleeve silver

27
C-43860
1
Non-Rotator

27
C-43860
1
Top Release Non-Rotator

--
N21812-G1
Air Vent / Bleeder

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
BH-9420-26 Adjustable Drop On Height Extension SOGPA for Globe Lifts
BH-9420-26

Drop-on Height Adj Ext SOGPA

View Part
Request a quoteAdd to order
BH-9420-29

Rubber Pad Adapter for In-Ground

View Part
Request a quoteAdd to order
BH-9420-09 Globe Lift Sleeve and Adapter 34354 100776
BH-9420-09

Globe Lift Sleeve & Adapter Assembly 17-1/4"

View Part
Request a quoteAdd to order
BH-1798XU

10-5/8" Universal Packing Kit

View Part
Request a quoteAdd to order
BH-1798SP

10-5/8" Spring Style Pkg. Kit

View Part
Request a quoteAdd to order
BH-9420-16TK

10-5/8" DUSL Style Upper Bearing Kit

View Part
Request a quoteAdd to order
BH-EL-67

Safety Leg 67.5" Stroke 1 flipper

View Part
Request a quoteAdd to order
BH-TR-67

Safety Leg Top Release 67" stroke

View Part
Request a quoteAdd to order
BH-9420-19A

Orifice Bushing Kit w/ Retrieval Tool

View Part
Request a quoteAdd to order
BH-9420-15

10-5/8" Wiper Cover SPWA

View Part
Request a quoteAdd to order
BH-9420-14

Seal Holder Ring metal

View Part
Request a quoteAdd to order
No image available
BH-9420-14L

Seal Holder Ring plastic 3 pcs.

View Part
Request a quoteAdd to order
BH-9420-01

Plug & Dipstick SemiHyd

View Part
Request a quoteAdd to order
BH-9420-10

Arm Stop Pin new style

View Part
Request a quoteAdd to order
BH-9420-10B

Arm Stop Pin old style

View Part
Request a quoteAdd to order
No image available
BH-9801-C

Lift Tank Kit 36 Gallon 14 x 58 (Float & Gauge)

View Part
Request a quoteAdd to order
BH-9321-07

Air Vent Bleeder Valve

View Part
Request a quoteAdd to order
