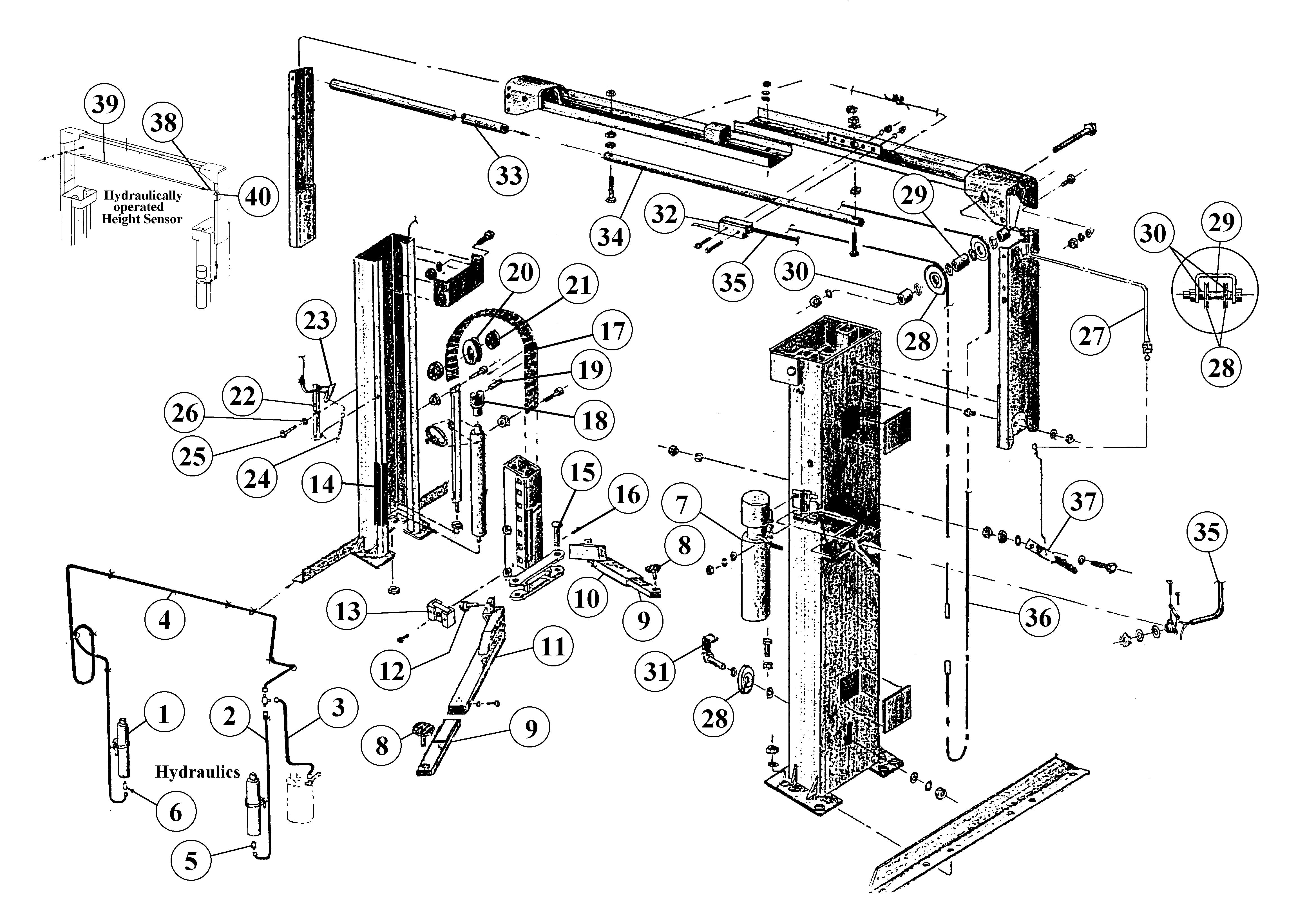

Parts for Globe Lifts AFO-9EH

Above Ground / Surface Mount 2-Post Lifts – Globe – AFO-9EH

SVI is the go-to supplier for repair parts for Globe Lifts. Whether you need equalizer and lifting cables or chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Globe lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
FS-202797
2
Hydraulic Cylinder (AFO-7)

1
FS-202872
2
Hydraulic Cylinder (AFO-9)

2
FS-13347
1
Cylinder Hose 1/4" x 112"

3
FS-13455
1
Pick Up Hose 3/8" x 62"

4
FS-13348
1
Crossbeam Hose for 12' High

4
FS-13349
1
Crossbeam Hose for 13'6" High

5
FS-203973
1
Restrictor

6
FS-13276
1
Adapter

7
1
Power Unit

8
FS-203556
1
Screw Adapter

9
4
Inner Arm - Right

9
4
Inner Arm - Left

10
1
Short Front Outer Arm - Left

10
1
Short Front Outer Arm - Right

11
1
Long Rear Outer Arm - Right

11
1
Long Rear Outer Arm - Left

12
FS-202979
4
Arm Lock Screw

13
FS-204786
8
Bearing Assembly

13A
FS-202749
8
Bearing Shoes (Specify Size)

14
FS-202775-18
2
Bumper Strip

15
FS-202626
4
Arm Pin

16
FS-11691
4
Spring Pin

17
FS-13167
Leaf Chain

18
FS-202884
2
Clevis (yoke)

19
FS-202637
2
Clevis Shaft

20
FS-202798
2
Chain Roller 4" x 1-3/8" Bore

21
FS-12074
6
Bearing

22
FS-203980
2
Latch Housing

23
FS-203314
2
Latch

24
FS-13329
2
Spring

25
FS-13271
2
Hex Bolt

26
FS-10681
2
Lock Washer

27
FS-13106-240
2
Lock Release Cable

28
FS-203199
2
Sheave

28
FS-12545
6
Sheave Bushing

29
FS-30474-3-1/4
2
Long Spacer

30
FS-30474-3/4
4
Short Spacer

31
FS-203355
2
Wire Rope Adjuster

32
FS-13280
1
Limit Switch

33
FS-13293-60
1
Hose

34
FS-203647
1
Sensor Bar

35
FS-13290-160
1
Elect. Cable

36
FS-13109
2
Equalizer Cable (12' High)

36
FS-13196
2
Equalizer Cable (13'6" High)

37
FS-202946
1
Release Handle

38
FS-13106-276
1
Cable 23' x 3/32"

39
FS-13270-72
1
Hose

40
FS-202885
2
Guide Pulley Assembly

--
FS-203581
Lock Release Rod

--
FS-013278
Lock Release Pulley

--
FS-206328
Arm Lock Kit

--
DG 3032700 01
Rubber Arm Pad - Rectangular (1)

--
FS-203047
Rubber Arm Pad - Round (1)

--
FS-205512
Rubber Arm Pad - Square (1)

--
1
Single Wheel Spotter Dish 15" Wide

--
1
Dual Wheel Spotter Dish 15" Wide

--
1
PowerStation™ Air / Electric Utility Box

--
1
DoorJammerPRO Car Door Protectors 12" - Pair

--
Wedge Anchor Bolts 3/4" x 5-1/2"

--
1
Shim Assortment 3 Sizes/Colors - 150 Pieces Total
