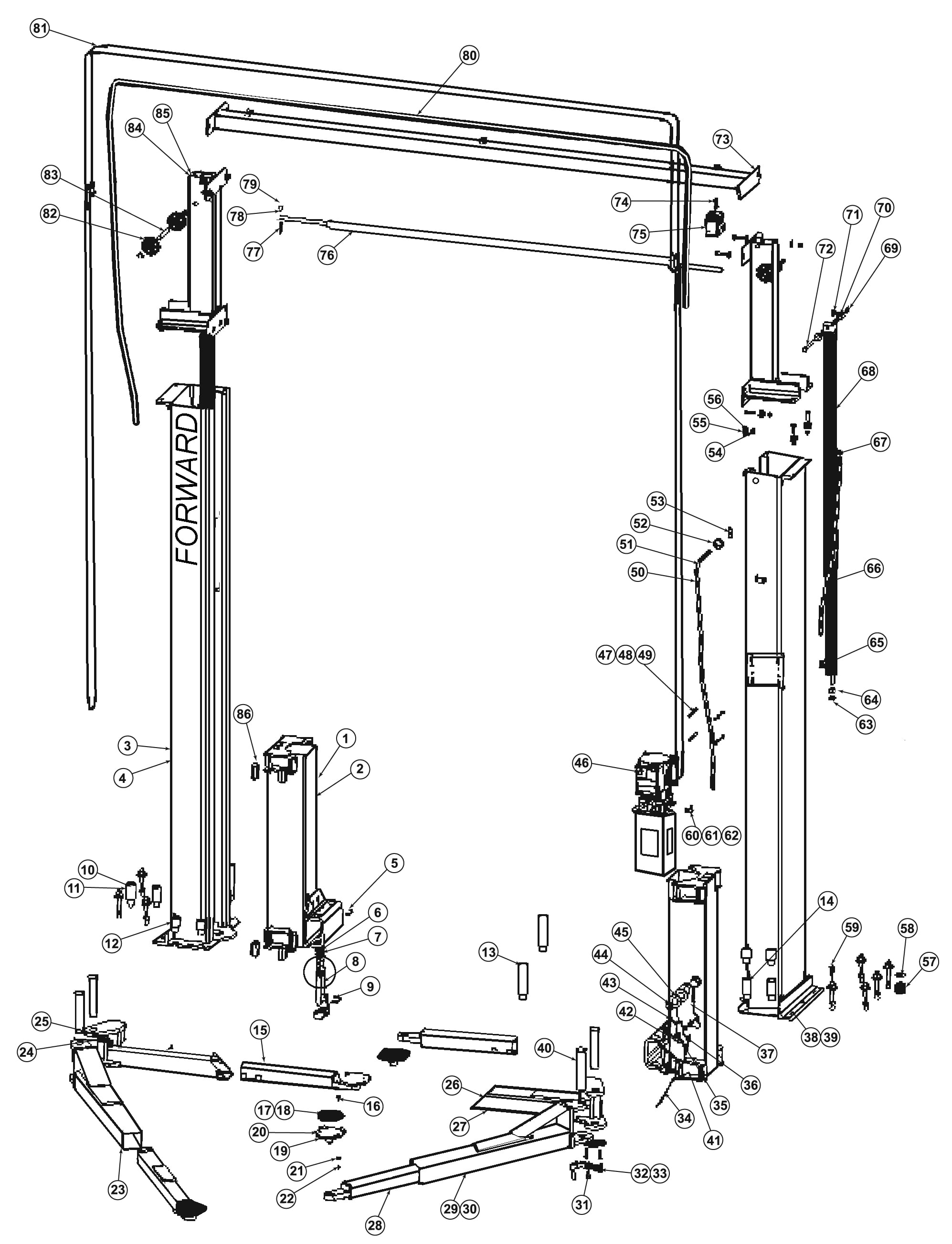

Parts for Forward Lifts I-DP9

Above Ground / Surface Mount 2-Post Lifts – Forward – I-DP9

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1*
Request Details
970500
2
Carriage Assembly
2*
Request Details
970501
2
Carriage Weldment
3*
Request Details
970101
1
Passenger Side Column
4*
Request Details
970100
1
Passenger Side Column Assembly
5
BH-7239-107
991504
10
3/4" Klip-Ring
View
6
BH-7239-79
143537
4
Arm Restraint Spring
View
7
BH-7239-78S
116533
4
Arm Restraint Pin Spacer
View
8
BH-7239-78
143536
4
Arm Restraint Pin
View
9
F-RP-250-1500
991060
4
1/4" Roll Pin x 1-1/2
View
10
BH-7089-99A
5" Nesting Pad Extension
View
11
BH-7239-120
994257
1
Nesting Height Extension Kit
View
12
BH-7235-72
996220
1-1/2" Nesting Pad Extension
View
13
BH-7089-99B
995550
6" Nesting Pad Extension
View
14
BH-7089-98
995560
3" Nesting Pad Extension
View
15
BH-7239-48
1070631
2
Front Inner Arm
View
16
F-EB-0250-20-1250
991243
8
1/4-20 x 1-1/4" Elevator Bolt
View
17
BH-7235-90
994105
1
Rubber Pad Kit - Standard Duty
View
17
BH-7235-90K
1
Rubber Pad Kit - Heavy Duty
View
18
BH-7235-90A
991234
4
Rubber Pad - Standard Duty
View
18
BH-7235-90AX
4
Rubber Pad - Heavy Duty
View
19
BH-7089-97A
106605
4
Adapter Base Only
20
BH-7089-97
106605
4
Adapter Base and Pad 1-1/4" Pin
View
21
F-FW-0250-USS
911405
8
1/4" Flat Washer
View
22
F-NL-0250-20
911401
8
1/4-20 Nylock Nut
View
23
Request Details
991487
4
Inner Arm Stop Screw
24
BH-7239-82A
1070623
1
Outer Rear Swing Arm
View
25
BH-7239-82
1070622
1
Rear Swing Arm Assembly
View
26
BH-7239-69
1070624
1
Front Swing Arm Assembly
View
27
BH-7239-69A
1070625
1
Outer Front Swing Arm
View
28
BH-7239-47
1070629
2
Rear Inner Arm
View
29
BH-7239-68
970619
2
Swing Arm Assembly Rear I-DP9A
View
30
BH-7239-68A
970620
2
Outer Swing Arm Rear I-DP9A
View
31
F-HC-0375-16-1500
912061
8
3/8-16 x 1-1/2" Hex Head Capscrew
View
32
BH-7545-17
143535
4
Arm Restraint Engage Gear
View
33
BH-7545-16
143534
4
Main Restraint Gear
View
34
BH-7239-108
143540
2
Carriage Lock Release Rod
View
35
F-FW-0375-USS
912005
4
3/8" Flat Washer
View
36
BH-7235-65
991070
2
Cap Nut
View
37
BH-7235-45
106502
2
Safety Latch Weldment
View
38*
Request Details
970109
1
Power Unit Column Assembly
39*
Request Details
970110
1
Power unit Column
40
BH-7235-34
995430
4
Swing Arm Pin
View
41
BH-7237-86
991071
2
Latch Spring
View
42
F-RR-0375
991503
2
3/8" Klip-Ring
43
BH-7235-63
70528
2
Latch Wipe Out
View
44
BH-7203-041
991030
2
Top Rail Snap Ring
View
45
F-FW-1250-SAE
915206
4
1-1/4" SAE Washer
View
46
BH-7006-01
992017
1
Power Unit
View
47
F-NL-0312-18
911703
4
5/16-18 Nylock Nut
View
48
F-HN-0312-18
911701
4
5/16-18 Hex Nut
View
49
F-HC-0312-18-1250
911751
4
5/16-18 HHCS x 1-1/4" Lg.
View
50
BH-7239-109
970904
1
Hydraulic Hose Kit
View
51
BH-7236-42
992156
1
Hydraulic Hose 56"
View
52
BH-7239-110
991491
1
Rubber Grommet
View
53
F-3705-6
992502
1
3/8" JIC Tee
View
54
F-HN-0500-13
912601
16
1/2-13 Hex Nut
View
55
F-HC-0500-13-1750
912671
16
1/2-13 HHCS x 1-3/4" Lg.
View
56
F-FW-0500-USS
912605
40
1/2" Flat Washer
View
57
BH-7512-89
991127
1/4" Shim (50 Pack)
View
57
BH-7512-90
1/16" Shim (50 Pack)
View
57
BH-7512-91
1/8" Shim (50 Pack)
View
57
BH-7512-92
Shim Assortment Pack (150 Pack)
View
59
BH-7075-03
913828
10
Anchor Bolt
View
60
BH-7011-10
1
Power Unit Vibration Damper Gasket
View
61
BH-7235-73
992410
9/16" O-Ring to 3/8" JIC Elbow
View
62
Request Details
970908
1
1/4" Push to Lock Plug
63
F-JN-0750-10
913611
2
3/4-16 Hex Jam Nut
View
64
F-HN-0750-10
913602
2
3/4-16 Hex Nut
View
65
BH-7236-99
992402
2
Elbow
View
66
BH-7236-52
992132
1
By Pass Return Line 34"
View
67
BH-7239-96
991082
2
24" Plastic Tie Wrap
View
68
BH-7236-02
992317
2
Hydraulic Cylinder
View
68
Request Details
Seal Kit
69
F-NL-0500-13
912603
6
1/2-13 Nylock Nut
View
70
BH-7239-111
970804
4
Cylinder Bushing
View
71
BH-7239-112
992409
2
3/8" NPT Breather
View
72
F-HC-0500-13-0500
912791
2
1/2-13 x 1/2" Hex Head Capscrew
73
BH-7239-113
970811
1
Overhead Sructure
View
74
F-HC-0250-20-0500
911421
2
1/4-20 x 1/2" Hex Head Capscrew
View
75
BH-7239-104
970902
1
Overhead Limit Switch Assembly
View
76
BH-7239-103
991481
1
Overhead Limit Bar Assembly
View
77
F-HC-0250-20-2000
911481
1
1/4-20 x 2" Hex Head Capscrew
View
78
BH-7239-99
991480
1
Overhead Switch Spacer
View
79
F-FLN-0250-20
991490
3
1/4-20 Flange Lock Nut
80
BH-7237-57
992167
1
Hydraulic Hose 222"
View
81
BH-7239-60
970912
2
Equalizer Cable 33' 4" (set of 2)
View
82
BH-7239-115
970901
6
Sheave Assembly
View
83
BH-7239-116
970802
2
Sheave Pin
View
84*
Request Details
970812
2
Column Extension Assembly
85*
Request Details
970813
2
Column Extension Weldment
86
BH-7235-27
995120
16
Carriage Slider Block
View
86
BH-7235-27A
106518
Shim for Carriage Slider Block
View
86
BH-7235-27K
Carriage Slider and Shim Kit (1 each)
View

* Custom order by request. Sample may be needed.
