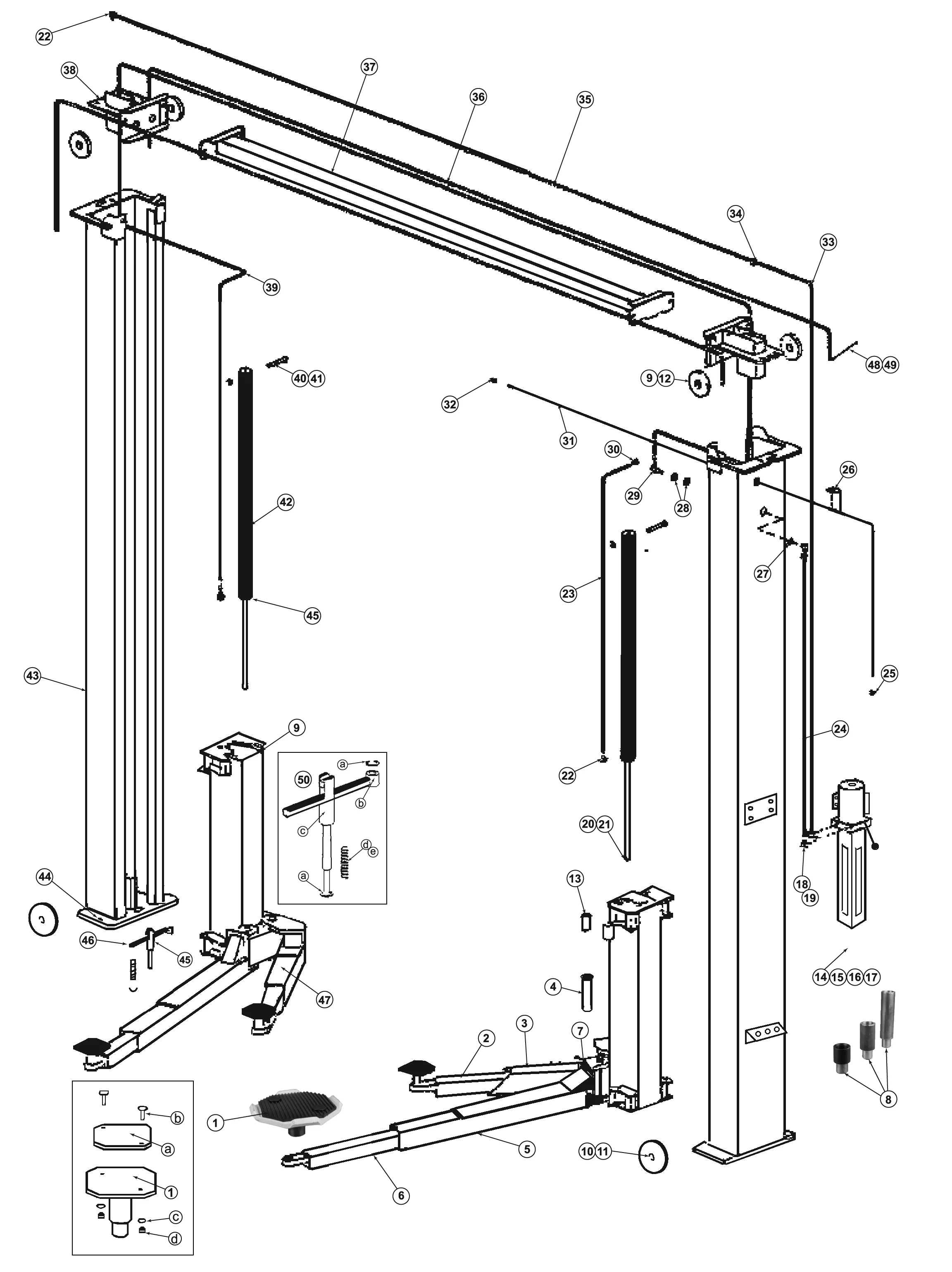

Parts for Forward Lifts DPO7A

Above Ground / Surface Mount 2-Post Lifts – Forward – DPO7A

Repair parts for Forward Lift Model DPO7A are available from SVI.

SVI is the go-to supplier for repair parts for Forward Lifts. Whether you need equalizer and lifting cables / chain, sheaves, slider blocks, hydraulic cylinders, seal kits, power units, overhead stop limit components, carriage locks and components, arm pins, height extensions and pads, or another part for your 2-post Forward lift, SVI has what you need. We offer excellent pricing, top-notch customer service, and in-stock items usually ship out the same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Forward Lift DPO7A:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
106605
4
Adapter Base and Pad 1-1/4" Pin

1a
991234
4
Rubber Pad - standard duty

1a
994105
1
Rubber Pad Kit - standard

1a
4
Rubber Pad - heavy duty

1a
1
Rubber Pad Kit - heavy duty

1b
991243
8
1/4" x 1" Elevator Bolt

1c
911405
8
1/4" Flat Washer

1d
911401
8
1/4"-20 Hex Nut

2
119603
2
Inner Arm Short

3
119601
1
Outer Swing Arm Tube Short RH

4
995430
4
Swing Arm Pin 8"

5
106604
1
Outer Swing Arm Long RH

5
119604
1
Outer Swing Arm Long LH

6
119605
2
Inner Arm Long

7
991303
2
Bumper Strip, 4-5/8" Long

8
995550
6" Nesting Pad Extension

8
5" Nesting Pad Extension

8
995560
3" Nesting Pad Extension

8
996220
1-1/2" Nesting Pad Extension

9*
119501
2
Carriage Weldment

10
991030
Top Rail Snap Ring

11
995030
2
Cable Sheave 6-1/8"

12
995020
4
Cable Sheave 4-3/4"

13
995120
16
Carriage Slider Block

13
106518
Shim for Carriage Slider Block

13
Carriage Slider and Shim Kit (1 each)

14
992016
1
Power Unit

14
Power Unit (prewired for an overhead limit switch)

15
911701
5/16"-18 Hex Nut

16
911703
5/16"-18 Nylock Nut

17
911741
5/16"-18 x 1" Hex Head Capscrew

18
992426
3/8" O-Ring to 3/8" Male JIC

19
BH-7235-68
992426
3/8" JIC 90 Swivel Nut

20
913602
3/4"-16 Hex Nut

21
913611
3/4"-16 Jam Nut

22
992402
Elbow

23
992156
1
Hydraulic Hose 56"

24
992142
1
Hydraulic Hose 62"

25
991244
1/8" Cable Clamp

26
106804
Overhead Limit Cable Ring Weldment

27
F-JN-0562-18
992454
3/8" Bulkhead Nut

28
F-FW-0562-SAE
912906
9/16" SAE Washer, Bulkhead Mount

29
992431
3/8" JIC Bulkhead Run Tee

30
995464
3/8" JIC 45 Swivel Nut

31
992609
1
Limit Switch Cable 1/16" x 16'

32
991084
1/16" Cable Clamp

33
992137
3/8" Hose x 86" High Press

34
992419
3/8" JIC Branch T to 3/8" MNPT

35
992138
1
Hydraulic Hose 101"

36
992663
2
Equalizer Cable 32' 4-1/2"

37*
119801
Overhead Weldment 99-1/4"

38
106802
Cylinder Mount Weldment

39
992146
1
Hydraulic Hose 195"

40
912603
1/2"-13 Nylock Nut

41
912791
1/2"-13 x 5" Hex Head Capscrew

42
992317
2
Hydraulic Cylinder

43
Request Details
Seal Kit for Hydraulic Cylinder

44
913828
3/4" x 5-1/2", Anchor Bolt

45
148705
4
Arm Restraint Plunger 10.4"

46
148702
2
Arm Restraint Slider 8" Front

46
148707
2
Arm Restraint Slider 8" Rear

47
119602
Outer Swing Arm Tube Short LH

48
913606
3/4" SAE Washer

49
3/4"-10 Nylock Nut

50
119K01
1
Arm Restraint Kit (entire lift) (4)

50a
991209
8
Arm Restraint E-Clip 5/8"

50b
148702
2
Arm Restraint Slider 8" Front

50b
148707
2
Arm Restraint Slider 8" Rear

50c
148705
4
Arm Restraint Plunger 10.4"

50d
BH-7235-23D
991216
4
Arm Restraint Spring

50e
913206
4
5/8" Arm Restraint Washer

50f
BH-7235-23C
2
Edge Protector (not pictured)

* Custom order by request. Sample may be needed.
