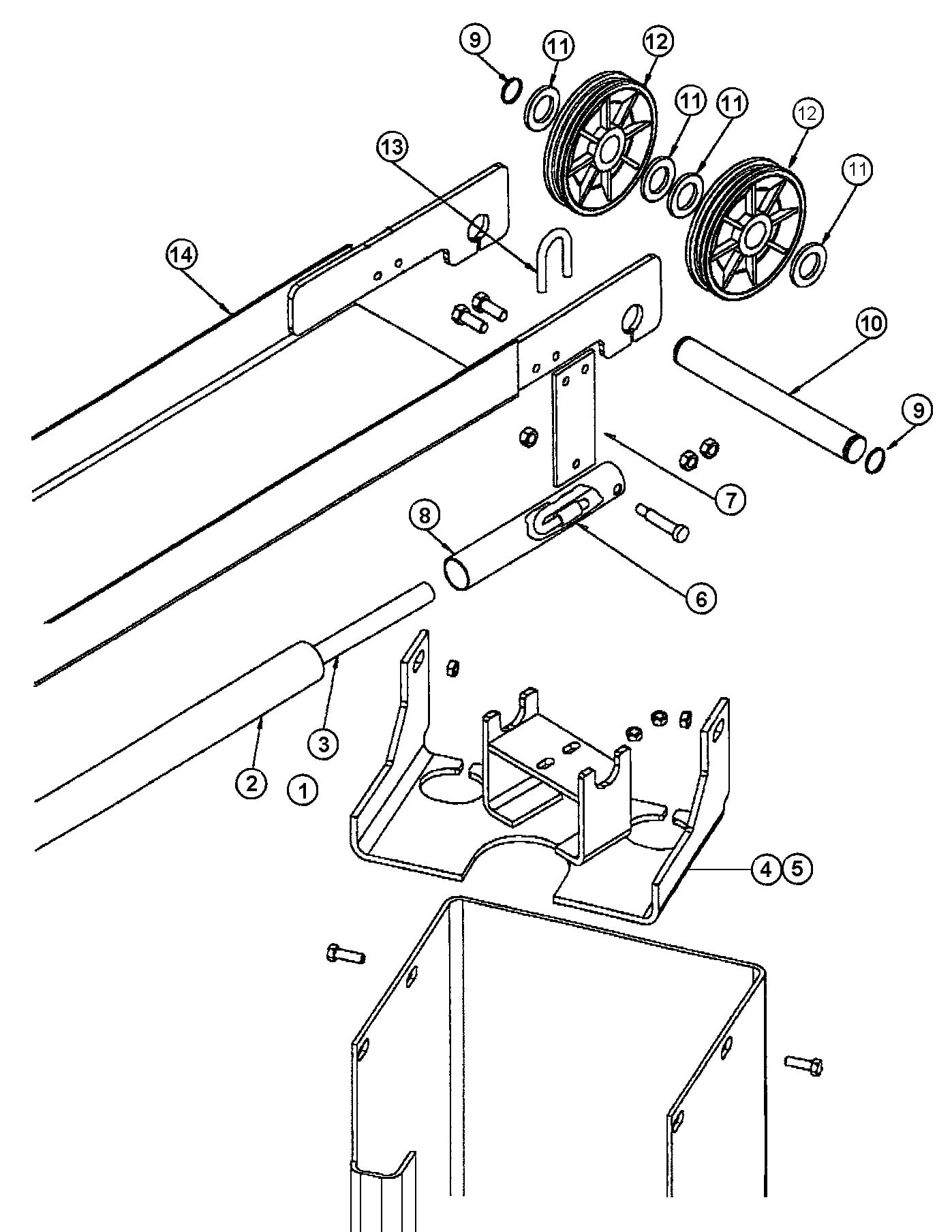

Parts for Challenger 70000 Overhead System

Above Ground / Surface Mount 2-Post Lifts – Challenger – 70000

SVI is the #1 Source for repair parts for Challenger Lifts. Whether you need cables, sheaves, slider blocks, power units, height extensions and pads, or another part for your 2-post Challenger lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Challenger Lifts 70000:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
70096
1
Shut Off Bar Assembly (70000)

2
31129
1
Cushion 1/2 Shut Off Bar

3
70099
1
Overhead Shut Off Bar (70000)

4
70031
1
Overhead Support, Power Side

5
70032
1
Overhead Support, Idler Side

6
36027
1
Mercury Limit Switch w/ 21' Cord

7
70051
2
Shut Off Bar Mount

8
36026
1
Switch Tube

9
36014
4
1" Retaining Ring

10
70030
2
Overhead Shaft

11
36013
8
1" I.D. Spacer

12
36025
4
Pulley/Sheave Assembly

13
70060
2
Overhead U-Bolt

14
70095
1
Overhead Weldment (70000)

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
