Parts for Challenger 65000

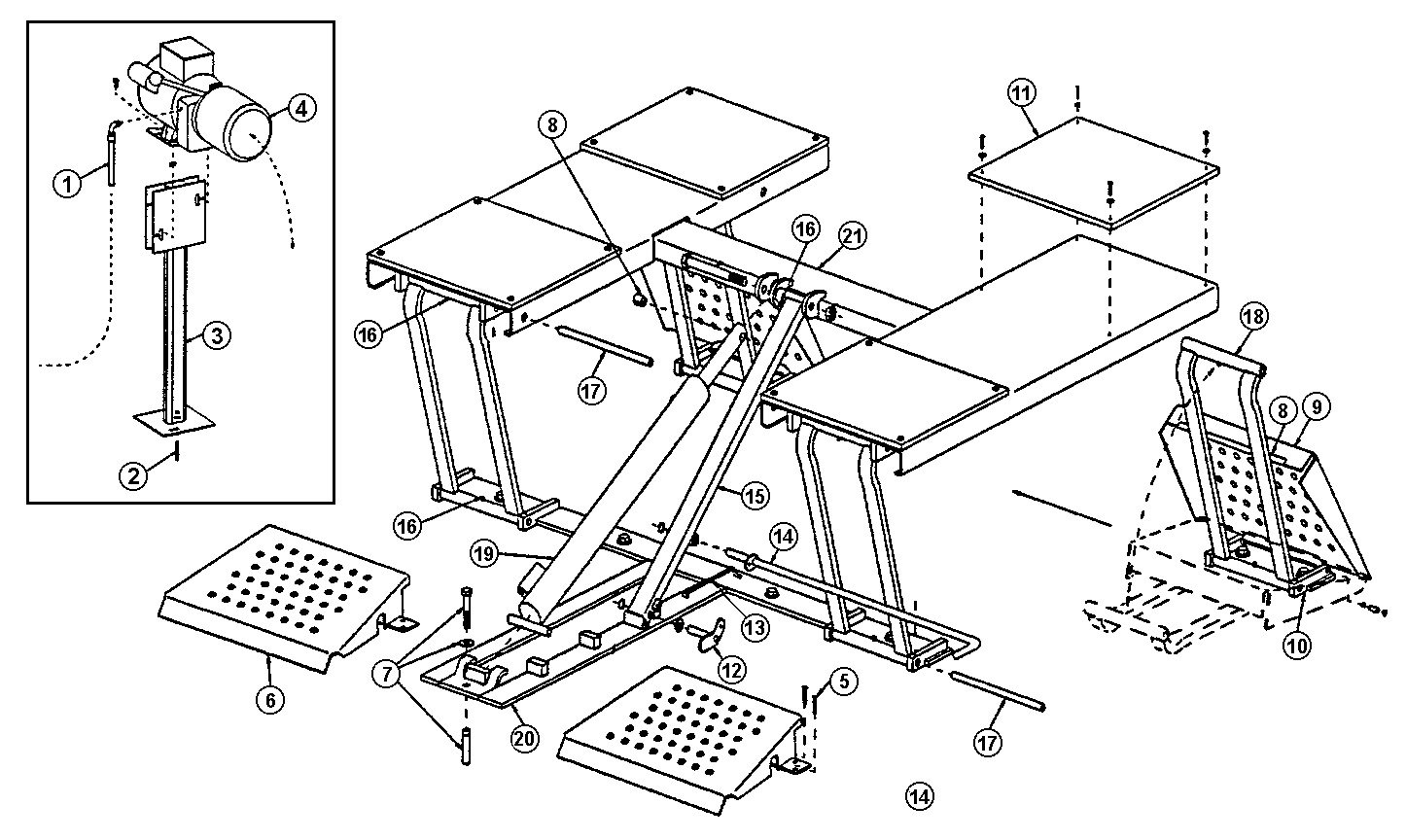

Above Ground / Surface Mount Low Rise Lifts – Challenger – 65000

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
28983
1
Hydraulic Hose

2
27932
2
3/8 x 2-1/4" Wedge Anchor

3
85389
1
Stand

4
28730
1
1/2 HP 1PH 1 Gal. Power Unit

4
Request Details
28731
1
50cy Power Unit

5
84985
8
Drive Anchor

6
85310
2
Front Ramp Weldment

7
85410
9
Anchor Bolt

8
84572
4
Protector Strip

9
85306
2
Rear Ramp

10
85297
2
Floor Bracket

11
27480
4
Black Rubber Pad

12
85385
1
Cam Weldment

13
85386
1
Rod

14
85394
1
Actuator Handle

15
85345
1
Leg Lock Weldment

16
27516
9
Grease Fitting

17
85300
4
Hinge Pin

18
85295
4
Leg Weldment

19*
27934
1
Hydraulic Cylinder

20
85301
1
Base Weldment

21
85920
1
Platform Weldment

* Call with serial number to order seal kit.

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
