Parts for Challenger 33000

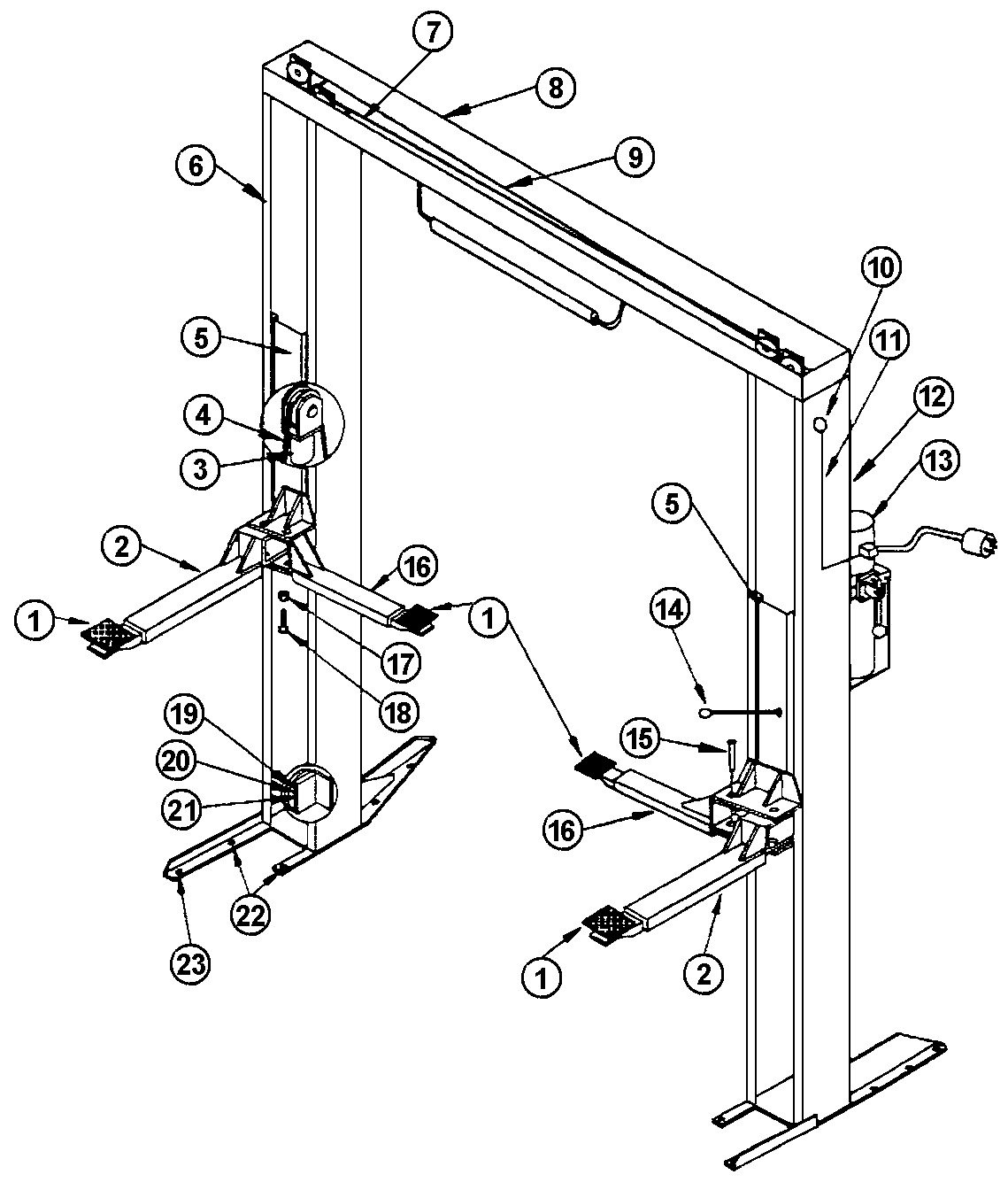

Above Ground / Surface Mount 2-Post Lifts – Challenger – 33000

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1*
31133
4
Adapter 3-1/2" with Rubber Pad

1*
Replacement Rubber Pad - Hexagon

2
330009
2
Arm Rear

3
31033
2
Cylinder Rod End Assembly

4
30019
74
3/4 Leaf Chain - Need two 74 pitch pieces if doing complete lift

7
330019
1
Eq. Short Cable

8
330022
1
Overhead Channel Assembly

9
330005
1
Eq. Cable Long

10
31354
1
Rubber Grommet Overhead Wire

13
200072
1
2HP 1PH 3.5 Gal. Power Unit

13
1
2HP 3PH 3.5 Gal. Power Unit

14
31150/31151
2
Safety Latch Release Handle

15
330026
4
Swivel Arm Pin

17
200202
2
Jam Nut for Stop Bolt

18
200166
2
1/2" Stop Bolt

19
31070
6
Eq. Chain Sprocket Washer

20
31019
6
Pulley for Eq. Cable

21
31021
6
1-3/8 External Snap Ring

22
210047
4
Plastic Plug for Base

23
31058
6
3/4" x 5-1/2" Anchor Bolts

* Square adapter and pad is no longer available. Now only available in hexagon shape.
