Parts for Challenger 26000

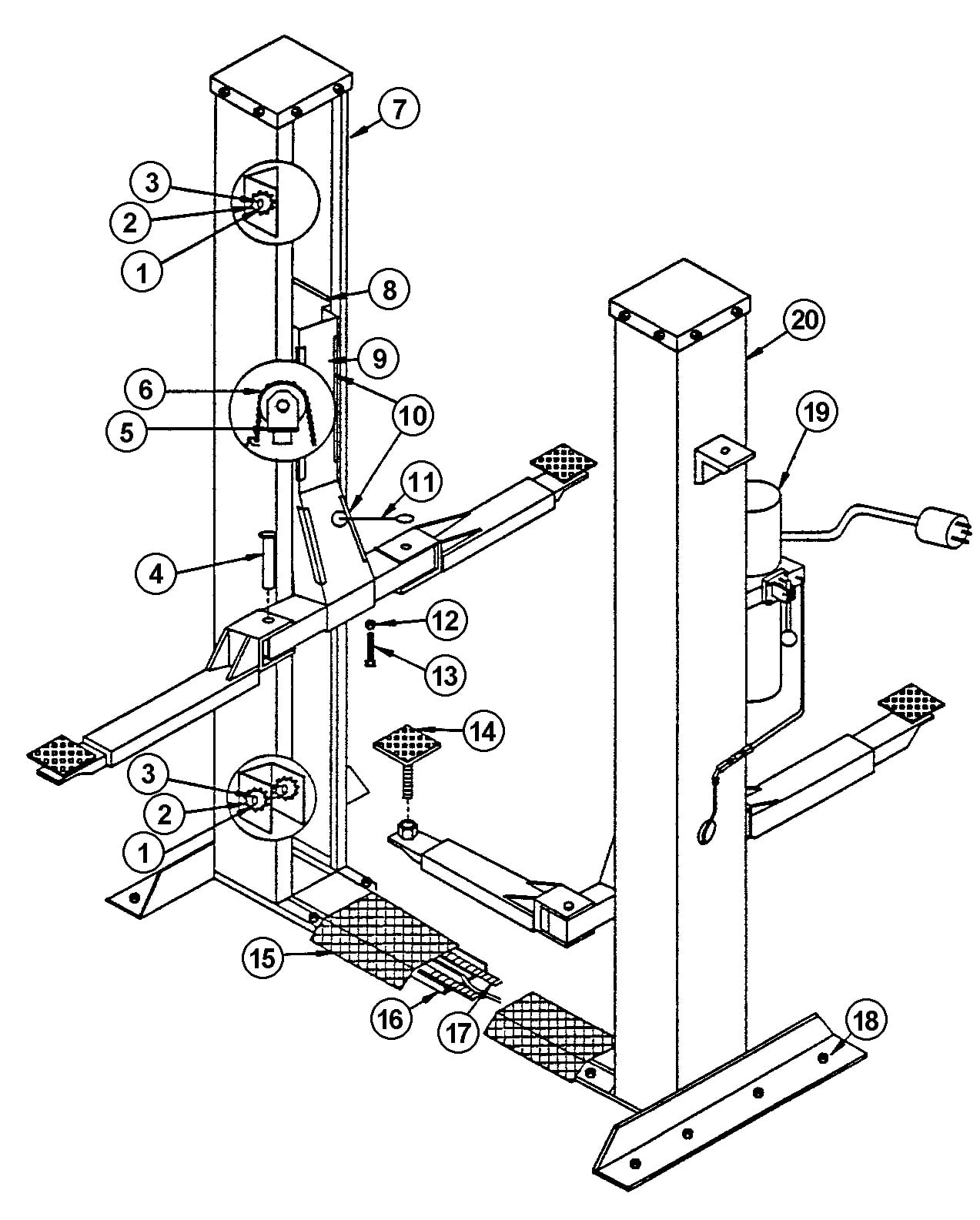

Above Ground / Surface Mount 2-Post Lifts – Challenger – 26000

SVI is the #1 Source for repair parts for Challenger Lifts. Whether you need cables, sheaves, slider blocks, power units, height extensions and pads, or another part for your 2-post Challenger lift, SVI has what you need. We offer excellent pricing and in-stock items usually ship out same day.

Looking for a specific model breakdown or part? Contact SVI today!

Also see these additional breakdowns for Challenger Lifts 26000:

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
200011
10
Snap Ring

2
26008
60
Eq. Chain Sprocket

3
31070
10
Eq. Chain Sprocket Washer

4
31134
4
Arm Pin 1-1/2" x 6"

4
4
Arm Pin - Call w/size

4
4
Arm Pin - Call w/size

4
4
Arm Pin - Call w/size

5
31033
2
Cylinder Rod End Assembly

6
31079
74
3/4 Leaf Chain - Need two 74 pitch pieces if doing complete lift

7*
260009
1
Complete Idler Side Column

8
31023
16
Slider UHMW w/Metal Insert

10
31056
8
Rubber Door Guard

11
31150/51
2
Safety Latch Release Handle

12
200202
2
Jam Nut for Stop Bolt 1/2-13

13
200166
2
1/2-13 Stop Bolt

14
31133
4
Adapter 3-1/2" w/ Rubber Pad

14a
4
Hexagon Rubber Arm Pad

15**
26003P
1
Driveover Plate Only

16
26003T
1
Driveover Trough Only

15-16**
Plate and Trough Assembly

17
26061
2
Roller Chain 80 Pitches

18
BH-7075-03
31058
12
Anchor Bolts 3/4 x 5-1/2

19
200072
1
2HP 1PH 3.5 Gal. Power Unit

19
1
2HP 3PH 3.5 Gal. Power Unit

20*
260012
1
Complete Power Side Column

KIT
Arm Restraint Kit (For 1 arm)

KIT
Arm Restraint Kit (For Complete Lift)

* Custom order by request. Sample may be needed.

**Modification may be necessary by installer.
