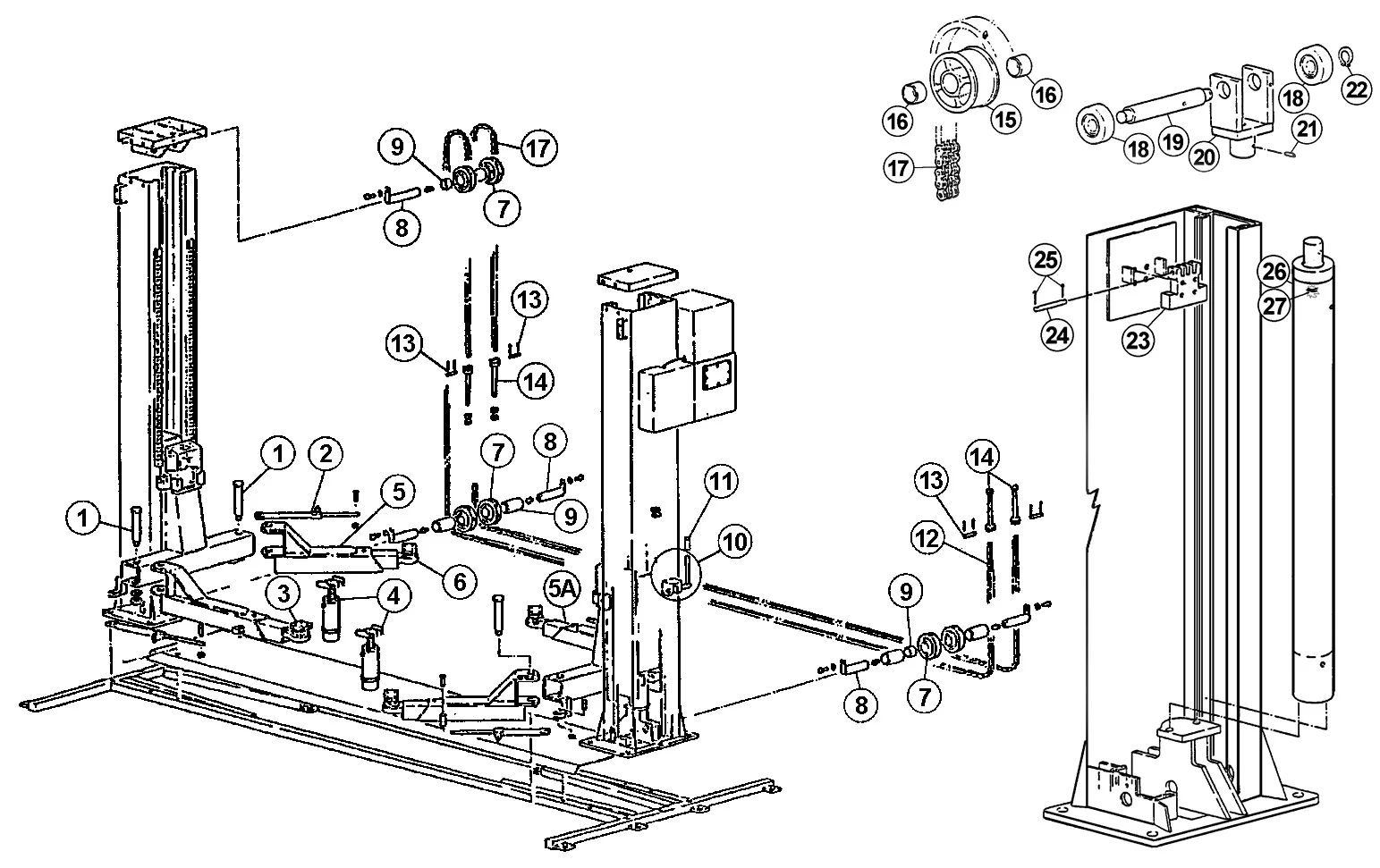

Parts for Benwil TP-9

Above Ground / Surface Mount 2-Post Lifts – Benwil – TP-9

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
Description

1
00067780
Arm Pin

2
00067680
Arm Restraint Assembly

3
50509901
Rubber Arm Pad (small)

4
no longer avail.
00067700

5
00067800
Left Lift Arm

5A
00067720
Right Lift Arm

6
00067740
Inner Slide Arm (Right & Left)

7
00041371
Chain Wheel

8
00067920
Chain Wheel Shaft

9
10282360
Lower Pulley Collar

10
00043501
Control Shaft

10
10161831
Control Shaft Collar

10
10161852
Control Lever

10
10181022
Crank Pin

11
50561801
Vinyl Grip

12
80835427
Leaf Chain

13
80839331
Cotter Pin

14
00067880
Chain Rod

15
10281780
Chain Wheel

16
81705030
Oilite Bearing

17
80837049
Leaf Chain

18
00043161
Guide Roller Assembly

19
10281800
Chain Wheel Shaft

20
00067620
Chain Bracket/Yoke

21
90960816
Socket Head Capscrew

22
80845022
Snap Ring

23
10166301
Chain Fitting Plate

24
80839700
Offset Link Pin

25
90973017
Cotter Pin

26
00097200
Cylinder Assembly

27
00068040
Cylinder Seal Kit

All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
