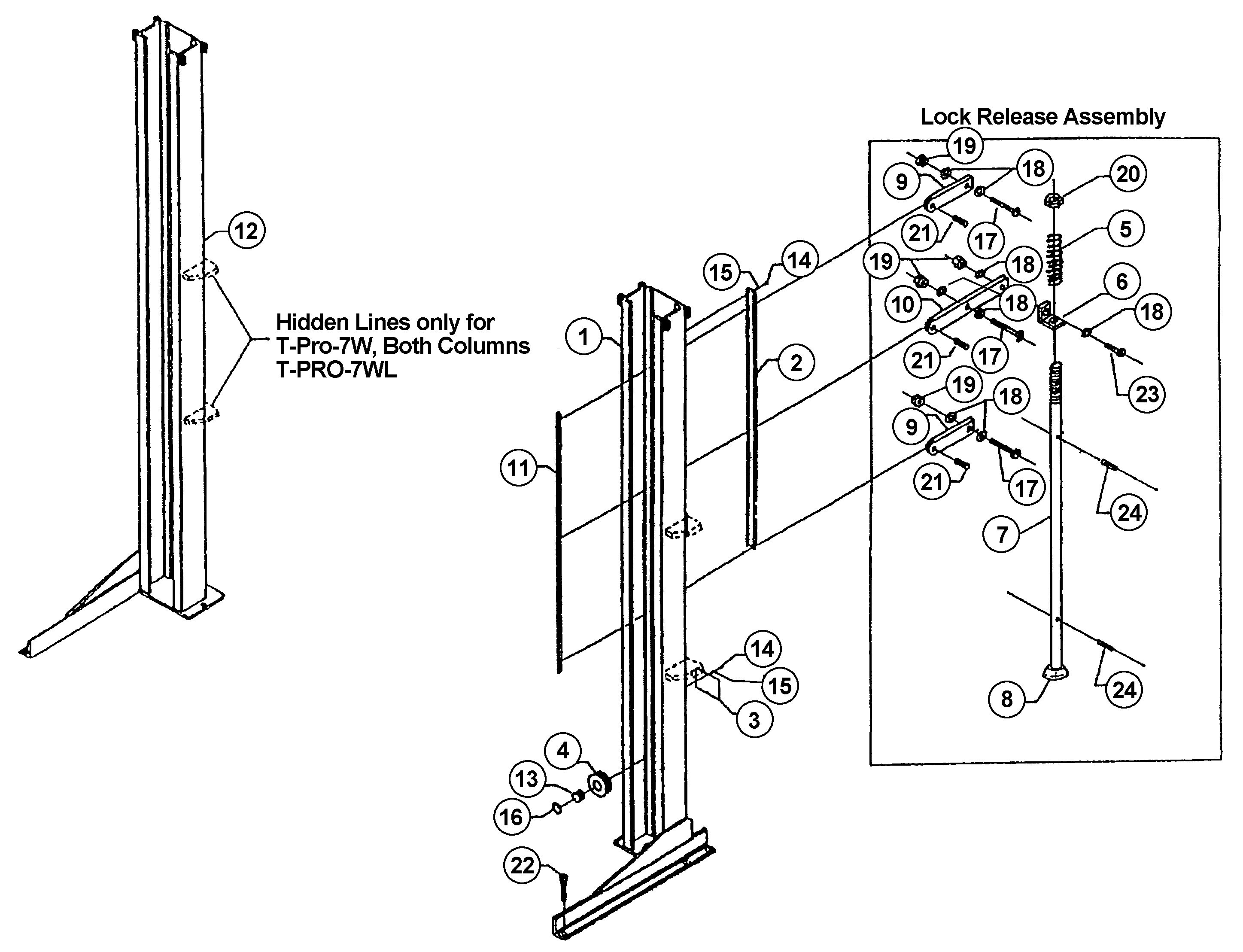

Parts for Benwil T-PRO-7WL

Above Ground / Surface Mount 2-Post Lifts – Benwil – T-PRO-7WL

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

1
Request Details
300135-3
1
Column-Drive Side
2
Request Details
300594
1
Cover-Lock
3
Request Details
300465
1
Cover-Clevis
4
BH-7208-26
300069
1
Lower Sheave
View
5
BH-7208-09
300397
1
Spring-Lock Release
View
6
BH-7208-64
300449
1
Angle-Lock Release
View
7
BH-7208-22
300574
1
Rod-Lock Release
View
8
BH-7208-36
300284
1
Knob-Lock Release
View
9
BH-7202-99
300178
2
Link-Lock Release
View
10
BH-7208-21
300450
1
Link-Lock Release
View
11
BH-7202-90
300596
1
Channel-Lock Release
View
12
Request Details
300134-3
1
Column-Driven Side
13
BH-7205-53
500396-3
1
Self-Lube Bearing
View
14
F-HC-0250-20-0375
4
14-20 x 3/8" Hex Head Bolt
View
15
F-FW-0250-SAE
4
1/4" Flat Washer
View
16
BH-7209-58
300218-12
1
Ext. Retaining Ring
View
17
F-MS-0010-32-1000
3
#10-32 x 1 Phil. Hd. Mach. Screw
View
18
F-FW-0187-SAE
8
3/16" Flat Washer
View
19
F-NL-0010-32
4
#10-32 Nylon Inst. Hex Hd. Nut
View
20
F-HN-0375-16
1
3/8"-16 Hex Nut
View
21
F-RP-187-0437
3
3/16" x 7/16" Roll Pin
View
22
BH-7224-131
500388
6
Anchor Bolt Assy.
23
F-MS-0010-32-0750
1
#10-32 x 3/4" Phil. Hd. Mach. Screw
View
24
F-RP-156-0750
2
5/32" x 3/4" Roll Pin
