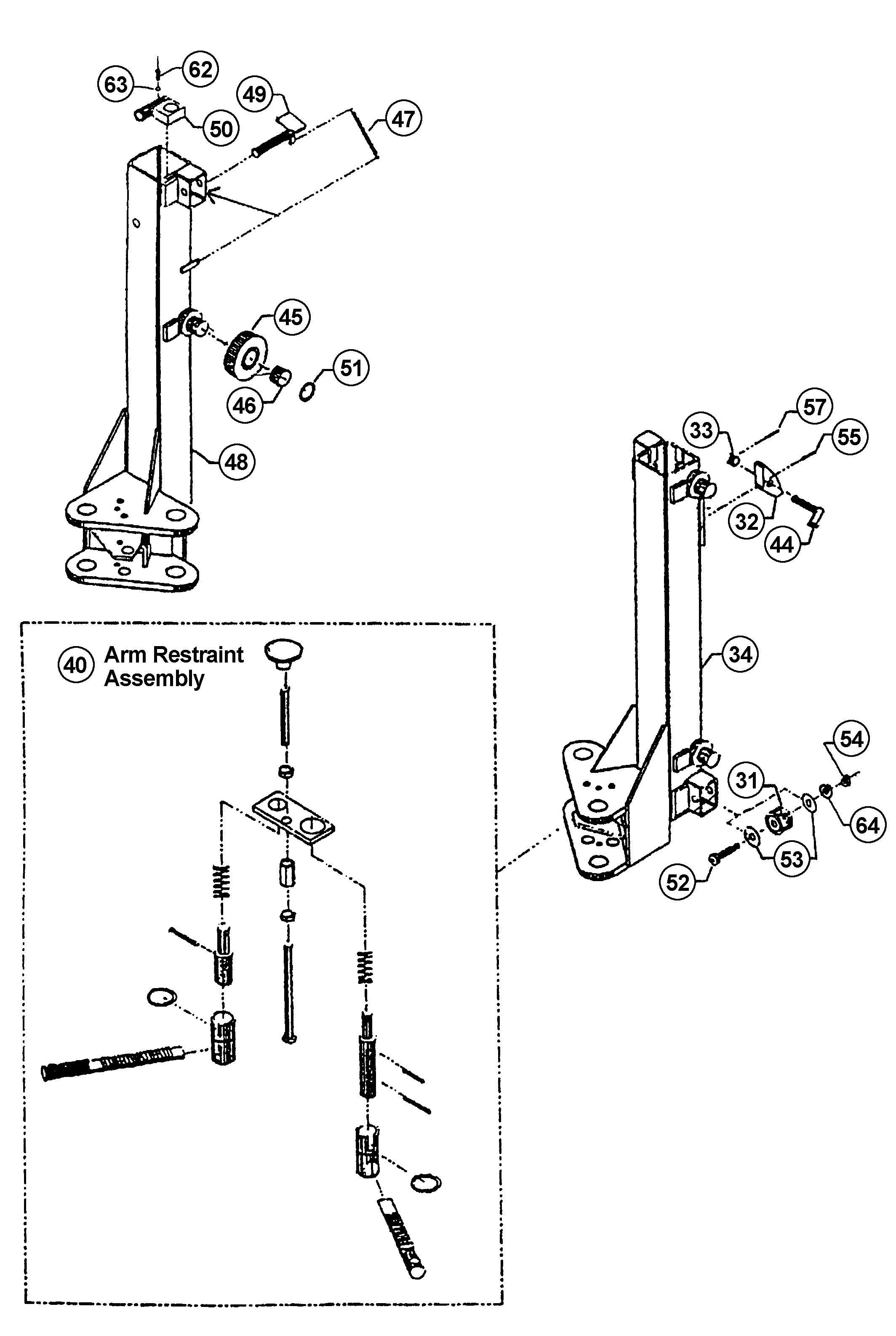

Parts for Benwil T-PRO-7 Carriage Assembly

Above Ground / Surface Mount 2-Post Lifts – Benwil – T-PRO-7

Add to
Quote
Add to
Order
Item
SVI Part #
OEM #
QTY
Description

31
BH-7208-11
300285
4
Roller Assy.-Side
View
32
BH-7208-48
300055
1
Carriage Lock
View
33
BH-7208-49
300061
1
Spring-Lock
View
34
BH-7208-97
300374-3
1
Carriage-Drive Side
View
36
BH-7208-15
300551
2
Restraint Pin-Rear Arm
View
40
BH-7200-10D
300271
2
Arm Restraint Assy. (1 side)
View
44
BH-7208-10
300077
1
Pin Assy. Lock
View
45
BH-7208-13
300153
6
Roller
View
46
Request Details
500396-2
6
Self-Lube Bearing
47
BH-7209-59
300114
1
Spring Loose Chain Lock
View
48
Request Details
300375-3
1
Carriage-Driven Side
49
BH-7209-60
300464
1
Latch Assy.-Lock
View
50
BH-7209-61
300563
1
Lock-Loose Chain
View
51
BH-7202-006
300218-8
6
Ext. Retaining Ring
View
52
F-SB-0625-11-2000
4
5/8" x 2" Socket Shoulder Screw
View
53
F-FW-0625-USS
8
5/8" x 1-3/4" Flat Washer
View
54
F-NL-0500-13
4
1/2"-13 Nylon Insert Lock Nut
View
55
F-RP-0156-1500
1
5/32" x 1-1/2" Roll Pin
56
BH-7208-35
300573
2
Coupling Nut
View
62
F-HC-0250-20-0500
1
1/4"-20 x 1/2" Socket Head Cap Screw
View
63
F-LW-0250
1
1/4" Spring Lock Washer
View
64
F-FW-0500-SAE
4
1/2" Flat Washer
View
All names, numbers, symbols and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers. SVI does not represent and is not associated in any way with any other companies.
